Polyester Banner Flag Printing Machine Roll To Roll Type

Polyester Banner Flag Printing Machine Roll To Roll Type

    • Polyester Banner Flag Printing Machine Roll To Roll Type
    • Polyester Banner Flag Printing Machine Roll To Roll Type
  • Polyester Banner Flag Printing Machine Roll To Roll Type

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 22,000usd-26,000usd
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Color & Page: MULTICOLOR Heater Power: 6kw
    Automatic Grade: Automatic Voltage: 110V/220V
    Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up Printer Pakcage Size: 462*128*157CM
    Oven Package Size: 60*55*108CM
    Highlight:

    fabric printing equipment

    ,

    inkjet fabric printing machine

    ,

    textile printing equipment

    Product name: Polyester Banner Flag Printing Machine Roll To Roll Type Directly Printer





    Description:





    • Saer Textile Inkjet Printer: with high resolution, outdoor and indoor applied, designed especially for printing of textile, sublimation banner cloth etc.
    • This unit is double 4 color type outdoor and indoor printer, Adopts the Epson 5113 of piezo technology, 3 heads, each head has 1440 nozzles in 8 rows, long using life.
    • Using HIWIN mute guide rail. germany IGUS silent drag chain, make your printing environment more quiet.
    • Strong Media Feed-in system, for smooth printing on heavy materials, such as textile, sublimation banner cloth and so on.
    • X axis and Y axis are using AC serve motors





    Advantages:



    1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    2. The unique print platform design to make the cloth always smooth in the process of printing.

    3. Unique filtering lampblack system, make the picture very clean.

    4. Taking up and feeding roller are inflatable roller.

    5. Taking up and feeding fabric are smoothly









    Specifications:



    1. Constant temperature heating box rapidly heating, good leakproofness ensure the temperature constant

    2. Green smoke extraction filtration system filter and sublimation smoke efficiently, keep the environment clean

    3. open ink-supply system Compatible with many brands of sublimation ink, easily to control the printing cost.



                                                    Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson 4720
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 3300mm
    Max printing width 3200mm

    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)













    Competitive Advantage:



    NEW technology on Epson 4720 , less ink consumption

    High Resolution up to 1440dpi

    High Printing speed up to 45sqm/h

    High working stability, industrial performance



    High Productivity

    Long Using Life

    High Yield

    Support three Epson 4720 print head

    Perfect Color Presentation





    Application industry:



    1), personality print: such as shops, cell phone decoration shop, personality gift shop.

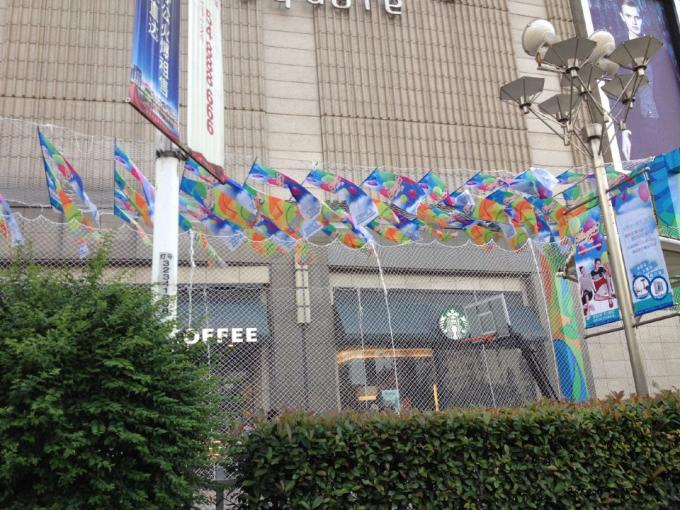

    2), advertising industry: indoor and outdoor advertising.

    3), products proofing: all kinds of traditional printing sample production.

    4), studio: digital image production.

    5), clothing industry: sample print or character pattern of color printing.



    Polyester Banner Flag Printing Machine Roll To Roll Type 0
