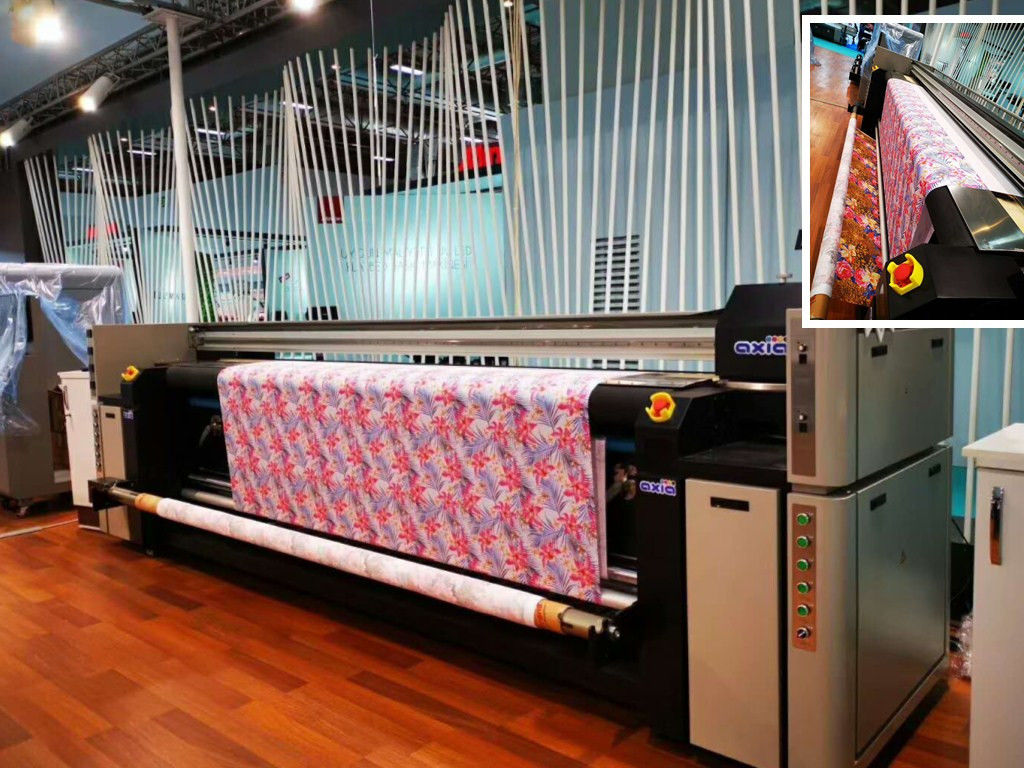

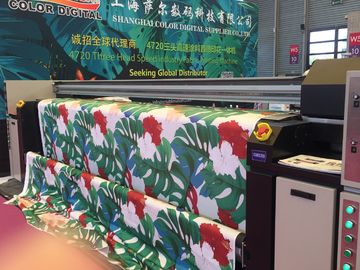

110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads

110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads

    • 110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads
    • 110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads
  • 110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads

    Product Details:

    Place of Origin: Shanghai , China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Ink: Pigment Ink, Sublimation Ink Automatic Grade: Automatic
    Voltage: 110V/220V Print Head: 3 Piecese Epson 4720
    Maximum Print Width:: 3.2m Material Withd: 3.3m

    Product name:  Muticolor CE Certification Directly Flag Printing Machine with high resolution





    Features:



    1. Constant temperature heating box

    rapidly heating, good leakproofness ensure the temperature constant

    2. Green smoke extraction filtration system

    filter and sublimation smoke efficiently, keep the environment clean

    3. open ink-supply system

    Compatible with many brands of sublimation ink, easily to control the printing cost.





                                                      Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson 4720
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 3300mm
    Max printing width 320000mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)









    Description:





    1.Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

    5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly







    Machine working Speed:





    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h







    Competitive Advantage:





    -Low cost and no need any transfer paper.

    - Vibrant and bright colors
    - Very good shelf-life
    - Optimal ink fluidity and printability through piezo-heads
    - Excellent image definition in direct printing
    - Very good fastness properties

    - Competitive price

    - Good reducibility

    - Appropriate for different ICC







    Applications:





    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.





    110V / 220V Digital Textile Printing Machine With Three Epson 4720 Heads
