Product Details:
|
| Product Name: | Digital Textile Printing Machine | Max Resolution: | 1400DPI |
|---|---|---|---|
| Print Head: | Epson DX7 | Number Of Head: | 2 Pieces |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 2300mm |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Compatible OS: | Win XP&Win 7 |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool And Silk Etc |
| Color Management: | Superior ICC Profile | Printing Interface: | Connect With Computer |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

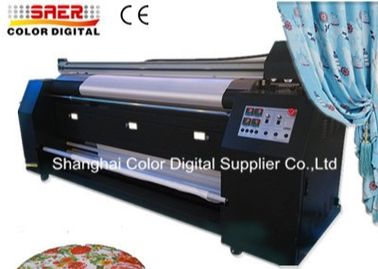

Direct To Fabric Digital Textile Printing Machine Outdoor Printer For Home Decoration
Product Description:
CSR 2200 Digital Textile Printing Machine,combined with 2.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade.
Specifications:
| Brand | SAER |
|
Model |
CSR 2200 |
|
Printer head |
Piezo technology, Epson DX7 head |
|
Color mode |
Double four color(Cyan,Magenta,Yellow,Black) |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Print Power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
| Available Media | Polyster,cotton,silk,linen fabric |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) |
12 m²/h |
Available Ink and Material:
a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Advantatges:
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Application:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.
Machine Details:
Control Pannel
Printed Tablecloth Samples:
