Product Details:
|
| Max Media Width: | 3300mm | Color & Page: | Multicolor |
|---|---|---|---|
| Color Mode: | 4 Color(Cyan,Magenta,Yellow,Black) | Voltage: | 380V |
| Gross Power: | 5.5KW | Print Head: | Epson DX7 * 2 Pcs |
| Plate Type: | Sublimation Printer | Compatible OS: | Windows XP & Windows 7 |
| Combine With: | One 3.2m All-in-one Printing System And One Filter | Ink: | Sublimation,Reactive,Pigment Ink |
| Material: | Polyester,Cotton,Silk,linen And Wool Fabric | Weight: | 1120kg |
| Rip Software: | Onyx | Work Type: | Computer Directly Control Output |
| Highlight: | continuous inkjet printer,digital fabric printer |
||

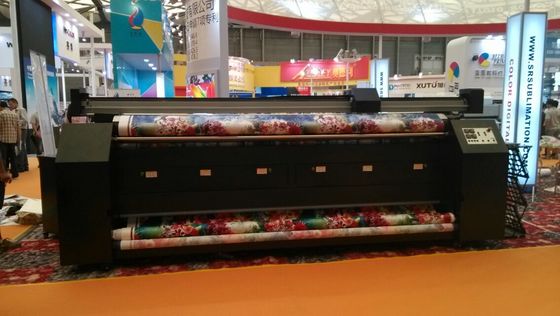

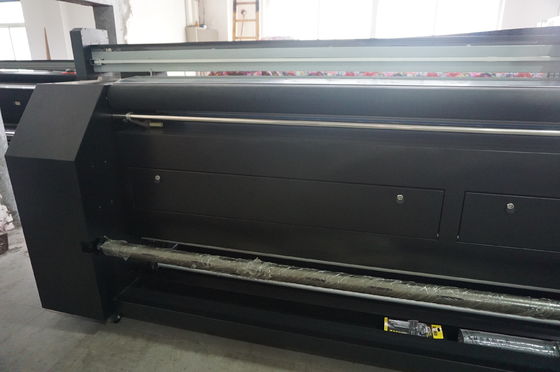

All In One Print And Heat Togeter Fabric Printing Machine With Water Based Ink
Product Description:
Combined with 3.2m all-in-one printing system and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade,also can be washed.
Usage:
Serve solutions for small production, sample making ,designer ideas and training areas .
Specifications
|
Model |
CSR3200 |
|
Printhead Technology |
Piezo Inkjet |
| Print Head | Epson DX7 |
|
Ink Type |
Diperse Dye Ink(Sublimation ink) |
|
Color Mode |
4 color(Cyan,Magenta,Yellow,Black) |
|
Nozzles |
(180 nozzles*8 lines)*2 heads |
|
Print Head Height |
1.5mm / 6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Media Width |
3300mm |
|
Max Printing Width |
3200mm |
|
Printing Resolution And Speed |
Resolution(DPI) Speed 720*360dpi(2 pass) 40m2/h 360*1080dpi(3 pass) 32m2/h 720*720dpi(4 pass) 22m2/h 720*1080dpi(6 pass) 18m2/h 720*1440dpi(8 pass) 12m2/h |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB 2.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
|
Environment |
temperature 20-32 degree |
|
Weight |
1120KG |
CSR 3200
Features:
1．Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.
2．Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
Advantages:
Save Money No need to use transfer paper
Save Time No need to perform heat transfer step
Save Space No need to keep a workplace for a heat transfer machine
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
