Product Details:
|
| Product Name: | Digital Fabric Printing Machine | Application: | Indoor & Outdoor Advertising Field And Home Decoration |
|---|---|---|---|
| Color & Page: | Multicolor | Color Mode: | Dual 4 Color (Cyan,Megenta,Yellow,Black) |
| Voltage: | 380V | Print Head: | Epson DX7 * 2 Pcs |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Windows XP & Windows 7 |
| Include: | One 3.2m All-in-one Printing System And One Filter | Ink: | Sublimation,Reactive,Pigment Ink |
| Material: | Polyster,Cotton,Silk And Wool Fabric | Print Speed: | 32 Sqm / Hour In 3 Pass |
| Max Resolution: | 1440dpi | ||
| Highlight: | digital fabric printer,continuous inkjet printer |
||

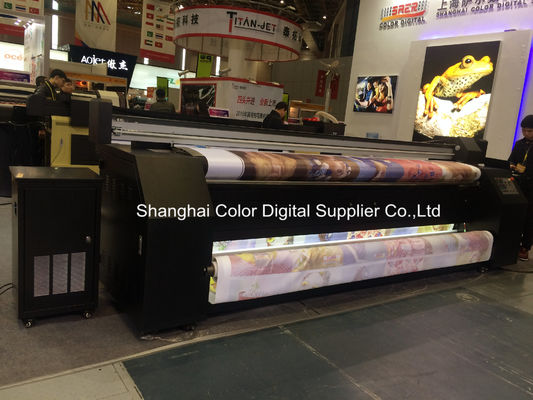

Most Popular Roll To Roll Automatic Textile Printing Machine Continuous Ink Supply
Specifications
| Brand | SAER |
|
Model |
CSR 3200 |
|
Print head |
Piezo technology, Epson DX7 |
|
Ink |
Sublimation,Reactive and Pigment Ink |
|
Color Mode |
Double CMYK |
|
Nozzles |
(180 nozzles*8 lines)*2 heads |
|
Print Head Height |
1.5mm/6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Printing Width |
3200mm |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB 2.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
|
Environment |
temperature 20-32 degree |
|
Weight |
1120KG |
Resolution And Speed:
| Printing Resolution And Speed |
Resolution(DPI) Speed 720 * 360dpi(2 pass) 40sqm/h 360 *1080dpi(3 pass) 32sqm/h 720 * 720dpi(4 pass) 22sqm/h 720 *1080dpi(6 pass) 18sqm/h 720 * 1440dpi(8 pass) 12sqm/h |
Features:
Print Part:
1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.
4. Refillable ink cartridge reduces production cost.

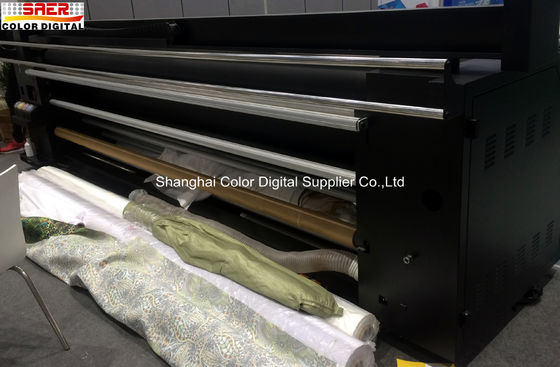

Heater:
1. Ceramic heating tube
Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
FAQ:
a.How to order?
step 1: Ask salesman for detail.
step 2: After confirmation,we send you Proforma Invoice with all details
step 3: Send payment T/T in advance to us and inform us.
step 4: We will deliver the goods within 7 working days after receipt of your payment
step 5:Confirm to us upon receipt of order
b.How Long Of The Warranty Time?
One year warranty.
We will give you technical support all the time.
when you find any problem/damage of the machine spare parts,we can send you new by UPS / FEDEX / TNT / DHL.
Spare Parts Picture:

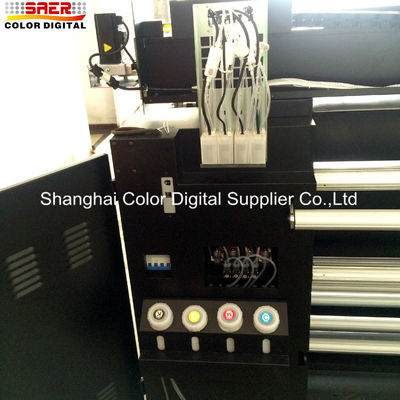

Continous Ink Supply
Printed Samples:
