1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads

1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads

    • 1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads
    • 1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads
  • 1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads

    Product Details:

    Place of Origin: China
    Brand Name: SEAR
    Certification: CE Approval
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: FOB 20000-25000$/SET
    Packaging Details: Packing With Wooden Cases
    Delivery Time: Within 10 Working days
    Payment Terms: Western Union,T/T
    Supply Ability: 50 sets / month
    Contact Now
    Detailed Product Description
    Printhead: Two Pieces Epson DX7 Print Speed: 23 Sqm/h In 4 Pass
    Print Material: Sublimation Polyester,cotton,silk Etc Use Ink: Dye Sublimation Ink,reactive Ink,pigment Ink
    Service: Support Oversea Service Work Way: Roll To Roll Directly Print
    Voltage: 220V-240V / 50 HZ Print Type: Digital Piezo Inkjet Printer
    Print Width: 2.2m

    1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads





    Product Description:

    Combined with 2.2m all-in-one printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed



    Product Technical Data





                                         Product  Parameter

    Model CSR 2200
    Print head Piezo technology,Epson 7th printer head
    Ink Sublimation ink,Reactive ink,Pigment ink
    Color mode 4*4 color
    Nozzles (180nozzles*8lines)*2head
    Print head higher Adjustable
    Ink supply mode Continuous ink supply
    Max meterials width 2400mm
    Max printing width 2100mm
    Printing resolution and speed Resolution speed
    720*360dpi     2pass 40sqm/h
    360*1080dpi   3pass 32sqm/h
    720*720dpi     4pass 23sqm/h
    720*1080dpi   6pass 18sqm/h
            720*1440dpi   8pass 12sqm/h
    Roll owter diameter 3 Inch
    Max weight for roll materials 100kg
    Interface USB 2.0/HIUSB
    RAM 128M
    Printer with heater  power AC220V 50/60Hz
    Power consumtion 6.5KW
    Environment Temperature:20-32℃
    Humidity:40-60℃(Non-condensing)
    weight 780kg



    Product Advantage :



    1. Direct Print Image Into Fabric ,do not need Transfer paper.

    2. Use dye sublimation ink , No smell, No Pollute

    3. Adopt Newest Epson DX7 Printhead , With High Precision. No clog.

    4. This machine with print and heat function together.you don't need to buy other heater transfer machine , Save money and space.

    5. The printed image color is bright and vivid with nice color .



    characteristics:



    1. Low cost: About 2 degree electricity cost per hour with non-stop running.

    2. High productivity:40m2 / hour of the speed.

    3. Dye Sublimation system: print onto fabric with sublimation ink.

    4. Directly print on textile: no need any transfer paper.

    5. Good after sales service: 1 year maintenance period.



    Product Feature:



    1. Guide Rail

    Adopt HIWIN mute guide rail with two slide blocks, effenciently increase rigidity and torsion resistance, higher precision and mute silence on printing.

    2. AC Servo motors

    X axis and Y axis are using AC servo motors, for precision and stable motion control.

    3. Integrated Anti-collision sensor

    In each side of printhead carriage to prevent the printhead from unexpected damage,the sensors automatically detect the printing plate or any force on the way going.it prevents any possible strike to the print heads

    4. Standard duel print heads

    Maximize the performance of the productivity and high print quallity.

    5. Bulk ink supply system

    Just case your mind from worrying about filling ink again and again

    6. Print and heat together.

    Equipped with air filter for direct print to fabric and color fixation, convenient and easy operating

    7. Compatible ink

    Compatible with reactive ink,sublimation ink and pigment ink,suitable for broad fabric printing

    8. Feeding & Take-up system

    Specifically made tensioning media feeding & take-up system for broad fabrics and accurate feeding.



    Produtc Service :



    1. This machine has one year warranty .

    2. We support oversea technical service and with all life techincal support.



    Application Field



    • Print on Polyester fabric to make Bedding Articles,Abat vent fabric,tablecloth,Customized abat vent,Shower curtain decoration,Sofa fabric.
    • Print on cotton fabric to make clothes,bed sheet etc.

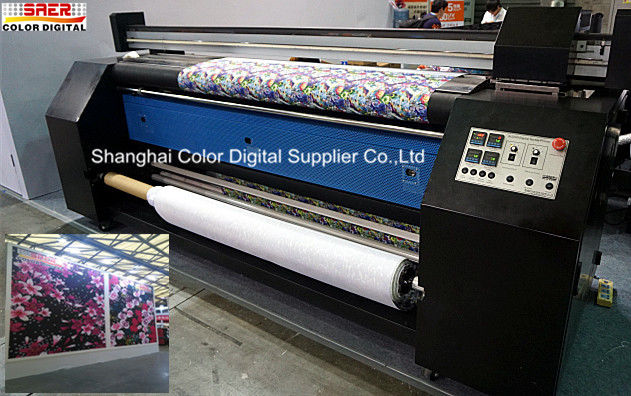

    Printer Detail Picture:



    1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads



    1440 DPI High Precision Piezo Inkjet Printer With Standard Duel Print Heads
