| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | without fumigation wooden package |
| Delivery Time: | 8-12 DAYS AFTER PAYMENT |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets / month |
| RAM: | 128M | Automatic Grade: | Automatic |
|---|---|---|---|
| Warranty: | 1 Year | Keywords: | Sublimation Machine |
| Ink: | Pigment Ink Sublimation Ink | Print Head: | Epson 4720 |
| Resolution: | 1800DPI | Plate Type: | Digital Printing,Textile Printer,Roll To Roll |
| Ink Type: | Sublimation Ink | Color: | 4 Colors (CMYK) |
| Type: | Inkjet Printer | ||
| High Light: | 3.2m Digital Fabric Printers,Flag Textile Printer,1800DPI Fabric Printing Machine |
||

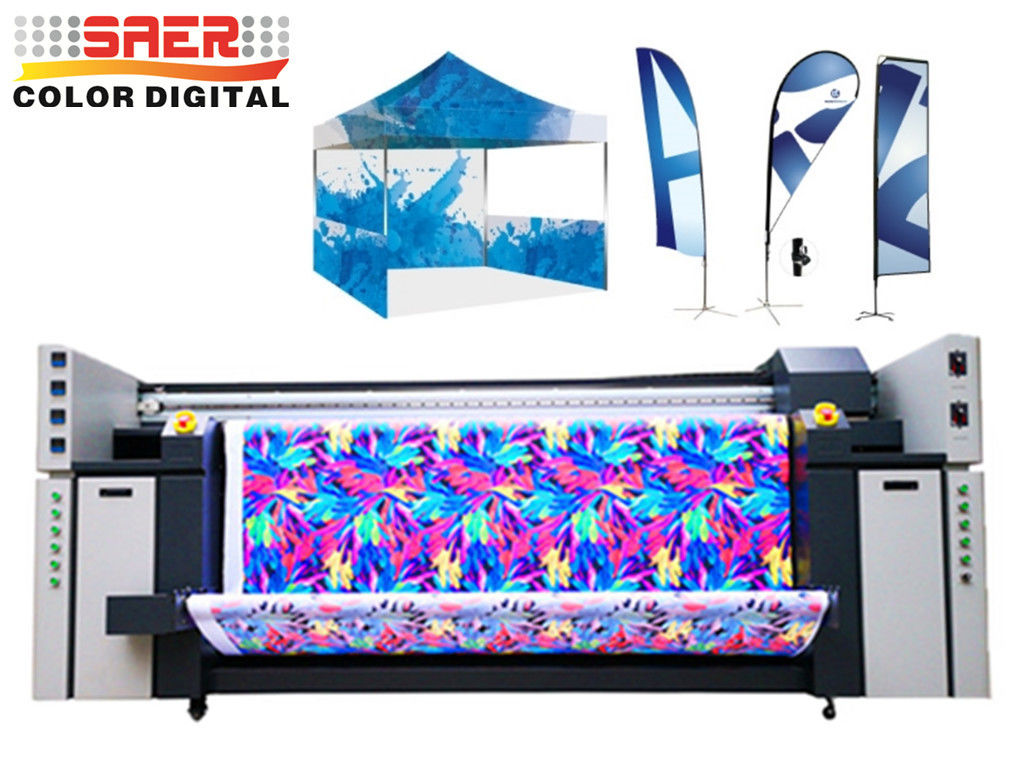

2020 hot sale 3.2m Digital Fabric /Textile Printer Digital Printing Machine With High Speed
Technical Details
| Product name |
Economic CSR3200 Textile Printing Machine |
||
| Item No. | CSR 3200 | ||
| Printhead | EPSON 4720 (3 pcs) | ||
| Number of Printhead | Three | ||
| Print Resolution | 1800dpi | ||
| ink | sublimation ink/pigment ink. | ||
| Maximum Print Width | 3000mm | ||
| Print Speed | 3 pass | 360x1800DPI | 65m²/h |
| 4 pass | 720X1200DPI | 45m²/h | |
| 6 pass | 720x1800DPI | 35m²/h | |
| Printer Head height | Adjustable 1.5~6mm | ||
| Ink | Type | Sublimation Ink, pigment ink | |
| Color | dual CMYK | ||
| Ink Supply System | Continuous Ink Supply System | ||
| Media | Maximum Width | 3200mm | |
| Feeding mode | Automatic feeding and taken-up system | ||
| weight | Sublimation machine net weight 1000kg, gross weight 1200kg | ||
| power consumption |
sublimation heater | Directly dye sublimation heater 3500w | |
| printer | printer 1000w | ||
| printer power | AC210-230v | 50-60HZ 16A | |
| temperature | 25-35°C | ||
| humidity | 35-65%(non-condensing | ||
Product Feature:
1. Constant temperature heating box
rapidly heating, good leakproofness ensure the temperature constant
2. Green smoke extraction filtration system
filter and sublimation smoke efficiently, keep the environment clean
3. open ink-supply system
Compatible with many brands of sublimation ink, easily to control the printing cost.
Rip Software:
1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required colo
Description:
1．Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Application
Luxurious fashion design for professional high class customer,specialized in large format soft advertising and home textile of bed sheet,curtain,wall-paper direct printing.
Competitive Advantage:
• Lower investment cost,2.0m/3.2 meters width machine more usability
• One time molding mechanism design, reflect the stability and reliable of textile printer
• High speed
• Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
• Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.
COMPANY INFO
Shanghai Color Digital Supplier Co.,ltd was established in 2001. It is advanced professional Digital Printing Equipment & Relevant materials manufacture in china .
As the development of the market, we spend a lot of financial resources and human resources to focus on the research and development of indoor and outdoor inkjet printer, and all kinds of ink. In order to satisfy our customer of all over the world, we continually upgrade our service and improve the quality of our products.
Our products include:Digital Textile Printers with Epson / XAAR / Kyocera Head,Sublimation Heater(Oven),Printing Materials,inks and Relevant Spare Parts for Piezo Printers.All our products have been CE Certificated.
