Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | without fumigation wooden package |
| Delivery Time: | 10 workdays after get the payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / month |
| Machine Condition: | New | RAM: | 128M |
|---|---|---|---|
| Usage: | Cloth/fabric/textile Printing | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Keywords: | Sublimation Machine/textile Printer |
| Product Name: | Sublimation Textile Heat Transfer Printer | Feature: | High Speed |
| Ink: | Pigment Ink Sublimation Ink | Print Head: | Epson High DPI Print Head |
| Resolution: | 1800DPI | Ink Supply Mode: | Continuous Ink Supply |
| Gross Weight: | 1019kg | Color Code: | Dual CMYK |
| Printer Power: | AC210-230V 50-60HZ 16A | Print Head Higher: | 1.5mm/6mm Adjustable |
| High Light: | 1800DPI Sublimation Printing Machine,Dual CMYK Sublimation Printing Machine,AC230V Sublimation Printing Machine |
||
1. Constant temperature heating box
rapidly heating, good leakproofness ensure the temperature constant
2. Green smoke extraction filtration system
filter and sublimation smoke efficiently, keep the environment clean
3. open ink-supply system
Compatible with many brands of sublimation ink, easily to control the printing cost.
| Product Model | CSR 2200 |
| Printhead | Piezo technology, three Epson print heads |
| Ink | Environmental Sublimation ink, Pigment Ink optional |
| Color | Dual CMYK |
| Printing type | roll to roll printing |
| Fabric Type | Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc |
| Medium Transfer | Continous Transport Automatic Fabric Feeding & Taking-up |
| Nozzles | (400 nozzles x 8 lines ) x3 heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Ink Volume | 2000ML Volume ink,automatic ink detector |
| Max materials width | 2200mm |
| Printing width | 2000 cm (can custom) |
| Printing Speed | Production Mode 45㎡/hour |
| Image Data Format | TIFF,JPEG |
| Rip Software | ONYX |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 3.0 |
| RAM | 128M |
| Printer power | AC210-230V / AC220-240 Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500w |
| Printer 1000w | |
| Temperature | 20-32°C(68 – 89.6 ℉) |
| Humidity | 40-60% RH |
Home Decoration
Print on polyester fabric
make windows curtain and Table cloth
make Wall Stickers.
This machine prints directly on fabric without heating transfer process. It can work continuously for 24 hours without corrugated.
1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
5. Environmental smoke exhaust filter system to handle smoke efficiently and make clean work shop
6. Use open ink supply system which is compatible to more brand sublimation ink
Shanghai Color Digital Supplier has been established 2001, it's advanced professional digital printing equipment & relevant materials general supplier. From 2004 we paid most costs and energy to R &D Sublimation system and relevant equipment and consumables. Now we have been launched SR series product successfully. Sublimation system sometimes we like called heat transfer system, now our produces have been used most field such as advertisement printing textile digital printing , carpet digital printing, windows curtain digital printing and interior decoration printing and Flax printing widely. SR series products quality surpassed well beyond the limits of similar products quality from another factory of the world.
WHY CHOOSE US ?
1. The advanced equipments and consumables products selection and considerate service are ensured and to bring you efficiency, productivity and a positive return on investment for years to come.
2. Comprehensive color management and profiling services, workflow optimization and customized training are offered. To ensure you're always fully functional, we have engineers right around the country to maintain and service your machines.
3. All the top brands spare parts, accessories and large inventories of consumables to keep your business running smoothly.
You are welcomed to be our dealer and grow together with us.
What can we provide for you?
-1 year warranty
-Lifelong technical support
-Free technical training
-Free machine installation
-Basic spare parts package
-English Software & drivers
-English User manual & training
-Cleaning solution

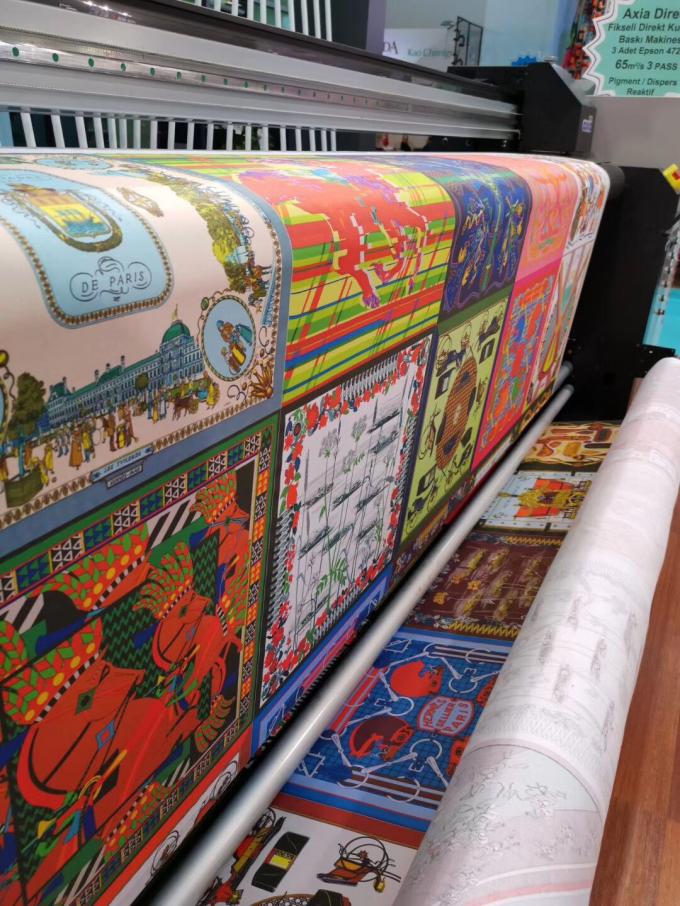

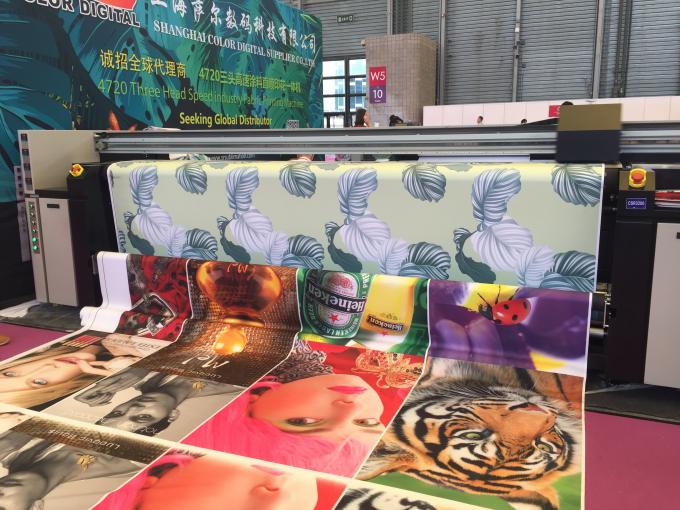

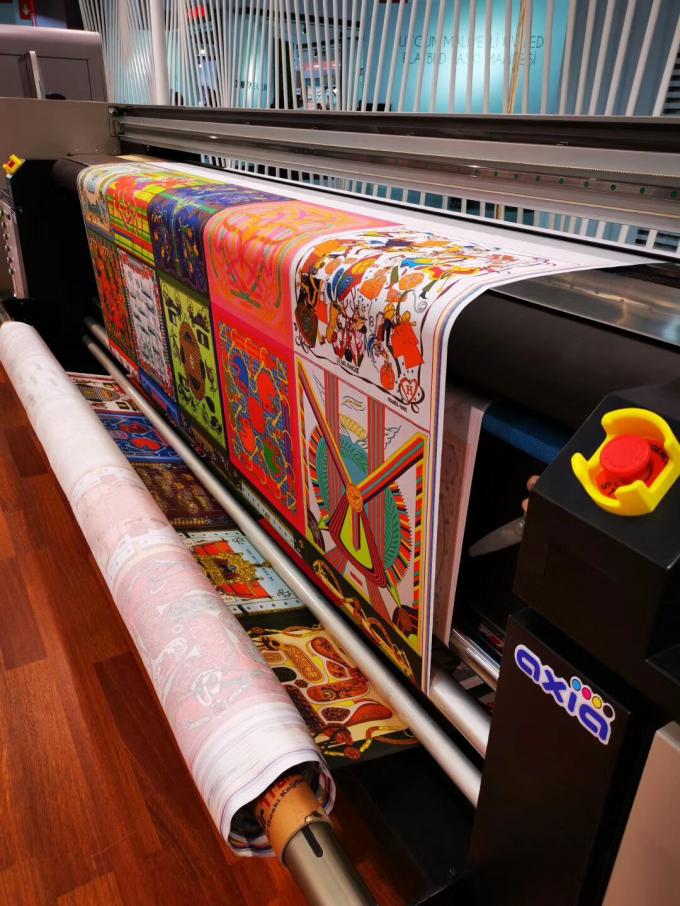

SAMPLE SHOW
WARRANTY
1.The machine is guaranteed one year( except the printhead and ink system)
2.If need our engineer door to door service ,labor cost,hotel,food and transport cost for engineer should be paid by buyer.
3.Within Warranty,If the Spare parts are bad and need to change, original parts should be returned,The new one will be send to buyer once we receive the bad parts
Features:
A.newest design, protect operator's eyes
B.machine with handles, move conveniently
C.With warning system, improve quality and avoid ink shortage
D.support cotton and polyster printing
1. Infrared sensor
protect printer head effectively
2. print funtion
Improve working efficiency and save printing time
4.Control panel with English language
Easy to control, more convenient
5.White and color printing simultaneously
Intelligent RIP technology, support white and color printing at the same time.
6. Change ink sequence
Effectively extend the use of printer head, saving printing cost.
