Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China(Mainland) |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non fumigation wooden package（Package size 4460*1160*1730mm） |
| Delivery Time: | 10 working days after get your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 Sets / Month |
| Product Name: | Direct Textile Printing Service | Application: | Indoor Decoration & Outdoor Advertisement |
|---|---|---|---|
| Resolution: | 360 To 1800 DPI | Color Mode: | Dual CMYK |
| Sublimation Heater Power: | 380V,50/60HZ | Gross Power: | 15.5KW |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Compatible OS: | Win XP & Win 7 |
| Printing Width: | 3200mm(126 Inch) | Working Type: | Connect Computer |
| Ink Supply Mode: | 4 Color Mode:400cc Cartridge*2/color 800cc/color | Printer Power: | AC220-240V(Adaptive).50/60Hz±1Hz |
| Highlight: | Dual CMYK Digital Textile Printer,1800DPI Digital Textile Printer,3200mm Digital Textile Printer |
||
Large Format Epson Head High Resolution Digital Sublimation Textile Printing Machine
Include:
CSR 3200 Digital Sublimation Textile Printing Machine,combined with 3.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade
Machine Details
| Product Name | Sublimation Textile Printer | |||||||
| Model | CSR3200 | |||||||
| Combine With | All-in-one Printer and one Filter Fan | |||||||
| Print head | Piezo technology,Three Epson 4720 printheads | |||||||
| Ink | Sublimation ink,Reactive ink,Pigment ink | |||||||
| Media Type | Polyester,Cotton,Linen,Silk,Wool etc | |||||||
| Color mode | Dual CMYK | |||||||
| Print head higher | Adjustable | |||||||
| Ink supply mode | 4color mode:400cc cartridge*2/color 800cc/color | |||||||
| Max meterials width | 3300mm | |||||||
| Max printing width | 3200mm | |||||||
| Roll owter diameter | 3 Inch | |||||||
| Max weight for roll materials | 100kg | |||||||
| Head Cleaning | Automatic/Manual | |||||||
| Interface | USB 3.0/HIUSB | |||||||
| RAM | 128M | |||||||
| Printer Power | AC220-240V(Adaptive).50/60Hz±1Hz | |||||||
| Sublimation heater power | AC380V.50/60Hz | |||||||
| Printer Power consumtion | 500W | |||||||
| Heater Power consumtion | 15.5kw | |||||||
| Environment | Temperature:20-32℃ | |||||||
| Humidity:40-60℃(Non-condensing) | ||||||||
| Weight | 2200kg | |||||||
| Rip Software | Maintop 5.3 Rip Software Or Onyx Optional | |||||||
| Compatible OS | Win XP & Win 7 | |||||||
Printing Resolution And Speed:
| Resolution | speed |
| 360 x 1800dpi(3pass) | 65 m²/h |
| 720 x 1200dpi(4pass) | 45 m²/h |
| 720 x 1800dpi(6pass) | 35 m²/h |
Usage:
Serve solutions for small production,sample making ,designer ideas and training areas .
Printing and Heating together

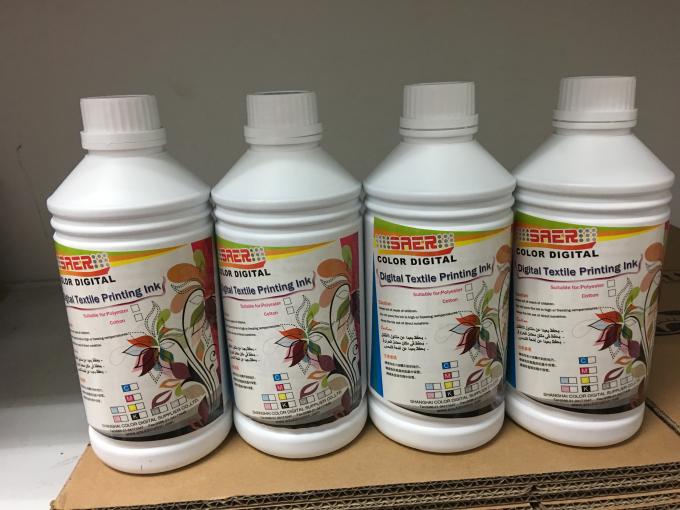

Available Ink and Material:
a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Description:
1. Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier

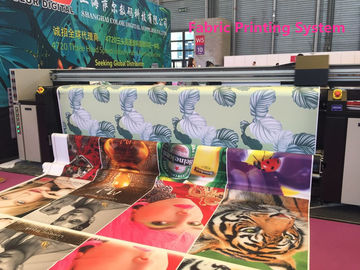

Printer Detail Pictures:
