Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm) |
| Delivery Time: | About 10 working days after get the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Machine Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Color & Page: | Multicolor(Dual CMYK) |
| Working Width: | 3.2m | Working Type: | Roll To Roll |
| Printing Material: | Polyester, Cotton | Printhead: | 3 Pcs Epson High Precision Head |
| Resolution: | 1800DPI | Ink Type: | Sublimation Ink |
| Product Name: | Textile Sublimation Printer,fabric Printing Machine | Color: | Dual CMYK |
| High Light: | Fabric Printing Machine 1800DPI,Automatic Teardrop Flag Printer,Dual CMYK Fabric Printing Machine |
||

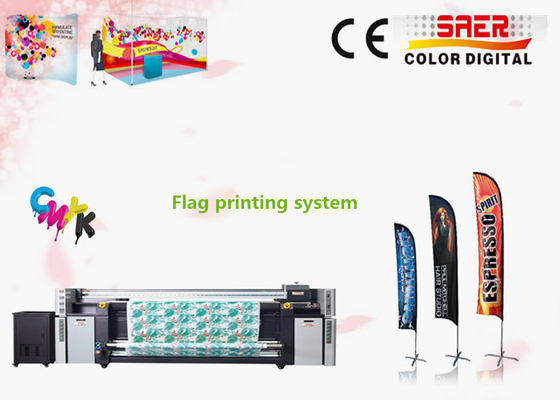

Product name : SAER Wall paper fabric printing machine/ Teardrop flag printer
Machine working speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Advantage:
Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
14.With CE Certificate Provide
Machine specification:
| Product parameter | |
| Model | CSR3200 |
| Print head | Piezo technology, Epson print head |
| Ink | Sublimation ink,pigment ink and reactive ink |
| Color model | Dual CKMY |
| Nozzles | (400 nozzles x 8 lines ) x3heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 3200mm (can custom the size ) |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 3.0 |
| RAM128 | 128M |
| Printer power | AC220-240V./AC220-240Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500W |
| Printer 5500w | |
| Temperature | 20-32°C |
| Humidity | 40-60% Non-condensing |
| Weight | Net Weight : 800kg Gross Weight : 920kg |
Digital Textile Printer Application:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
Machine Details Picture:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courie
Usage :
