1.6m Large Format Mutoh Sublimation Printer Automatic Epson Dx5 Head

Product Details:

Place of Origin:	Japan
Brand Name:	SAER
Certification:	CE Certification
Model Number:	CSR 1600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	17500 USD
Packaging Details:	Non fumigation wooden package
Delivery Time:	10 Working days after receive your payment
Payment Terms:	T/T, Western Union
Supply Ability:	100 Sets per month

Contact Now

All Products

Digital Textile Printing Machine (177)

Digital Fabric Printing Machine (134)

DTF Printer (25)

UV DTF Printer (120)

Mimaki Textile Printer (55)

Textile Calender Machine (83)

Mutoh Sublimation Printer (39)

Flag Printing Machine (136)

Sublimation Printing Machine (114)

Fabric Plotter (106)

Epson Head Printer (68)

Sublimation Heater (64)

Sublimation Dryer (39)

Dye Sublimation Machine (45)

Heat Sublimation Machine (38)

Sublimation Printing Ink (56)

Digital Printing Fabric (42)

DTF Transfer Film (17)

Inkjet Textile Printing Machine (38)

Detailed Product Description

Size Of Panel:	1.6m	Usage:	Fabric Printer
Automatic Grade:	Automatic	Color & Page:	Multicolor
Print Head:	Epson DX5	Color Mode:	Dual CMYK
Printing Speed:	15.5 Sqm / H In 4 Pass	Ink Type:	Sublimation,Reactive,Pigment Ink
Material:	Polyster,Cotton,Wool And Silk Fabric	Compatible OS:	Win XP&Win 7
Rip Software:	Maintop 5.3 Rip Software Or Neostampa 8 Optional
High Light:	mutoh textile printer , mutoh printing machine

1.6m Large Format Mutoh Sublimation Printer Automatic Epson Dx5 Head

Detailed Specification:

Name

Completely Sublimation System

Model

CSR-1600

Introduce

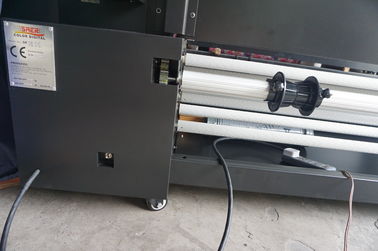

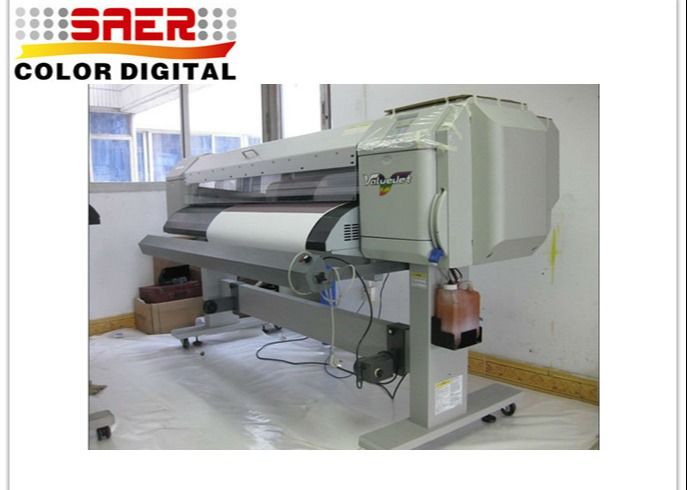

One SR1600 Heat Transfer Machine , One MUTOH VJ1604 Printer , One Filter

Profile

Completely Sublimation machine , can produce Flags directly.

details

MODEL	CSR-1600
Maximum media width	1,625mm
Printing Method	PIEZO Inkjet
Print Color	4 color (Cyan, Magenta, Yellow, Black)
Printhead Height Controll	1.5mm 2.5mm low /High
Maximum Resolution	1440dpi
Printing Speed	Resolution	Speed
	540×720/3Pass	21 m²/h
	540×720/6Pass	10.5 m²/h
	720×720/4Pass	15.5 m²/h
	720×720/8Pass	7.7 m²/h
	1440×720(8Pass)	5.9 m²/h
	1440×1440(16Pass)	3.0 m²/h
Media Size	Maximum Media Thickness: 1.0mm(0.039in.)
Media diameter	2” or 3”
Maximum weight for roll media	40kg
Ink Feeding System	Cartridge (220ml per Color)
Printing Precision Level	±0.3% or 0.3mm
Head Cleaning	Automatic and/or Manual
Interface	Ethernet 10Base-T
Operational	Power on - Temperature: 16~24°C / Humidity: 40~65% Power off - Temperature: 10~30°C / Humidity: 20~60%
Power Resources	Direct dye sublimation heater: AC 220 V, 1 phase + N+ PE, 16A, 50/60 Hz Printer: AC 220V, 2A, 50/60Hz
Weight	560KG
External Shape	101x287x185 CM 6256110CM
Ink type	Disperse dye ink (Sublimation ink)
Media type	Polyester

Specifications

1, Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2, our machine have excellent heat insulation, can same more power for you.
3, Easy to load the media in and out oven during your machine working
4, Blackbody tuble have more thermal efficiency

5, Intelligent PID Temperature Control

6, Feeding and Taking up Are synchronous
7, Taking up can choose roll to roll .

8, Quick Tail Gas Treatment
9, Convenient to Maintain
10, Easy to Set up and Operate

11, Easy to open the caver to clean inside of oven
12, Easy to change the active carbon from the filter

Printing Sample:

Advantages:

Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
The printed image color is bright and vivid with nice color gamut
Rapid speed and various printer to choose
It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
