Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Non-fumigation wooden box|
|Delivery Time:||10 work days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1000 sets per month|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Media Type:||All Kinds Of Fabric|
|Printing Solution:||1440dpi||Automatic Grade:||Automatic|
|Voltage:||110V/220V||Ink Type:||Pigment Ink, Sublimation Ink|

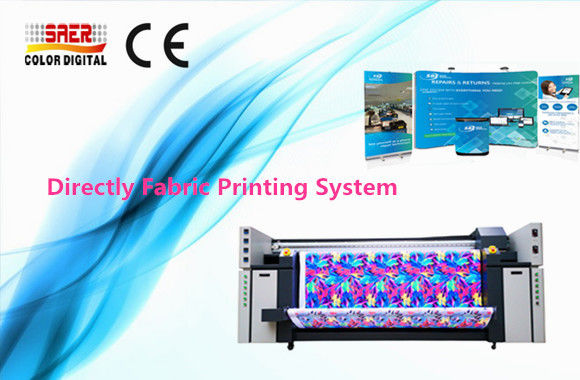

Product name: 2m Width Directly Digital Textile Printing Machine for Table Cover with 1440 DPI
Quick Details: Our CSR2200 includes one printer, one heater (printer and heater are whole one set), one filter
Machine working speed:
Printing resolution and speed
|360*1800dpi(3 pass) 65m2/h|
|720*1220dpi(4 pass) 45m2/h|
|720*1800dpi(6 pass) 35m2/h|
Automatic feeding and collecting structure:
1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly
4,Keep the fabric good air permeability after sublimation
5,Printing groove designed specially for fabric printing to collect waste ink and keep
6,Patented ink tanks keep ink supply constantly.
|Print head||3 pieces Epson 4720|
|Ink||Sublimation ink, pigment ink|
|Number of nozzles||(400 nozzles*8lines)*3head|
|Print head high||1.5mm/6mm (adjustable)|
|Ink supply mode||Continuous ink supply|
|Max materials width||2200mm|
|Max printing width||2000mm|
|Roll outer diameter||3 inch|
|Maximum weight for roll material||100kg|
|Printer Power||AC100-120V/AC220-240V(adjustive) 50/60HZ|
1．3 Pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
1)Customized Service:We Can Provide Customized Production and Packing for You!
We Also Provide FREE Printing Samples for You!
We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
We Provide Lifetime Warranty for All MT Industry Machine Models!
The Most Important We Have Digital Printing Solution Ability
We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
