380V Cotton Fabric Digital Textile Printing Machine With Pigment Ink

380V Cotton Fabric Digital Textile Printing Machine With Pigment Ink

Large Image :  380V Cotton Fabric Digital Textile Printing Machine With Pigment Ink

Verified Supplier

Shanghai Of China

Verified Supplier

Shanghai Of China

Detailed Product Description
Product Name: Multicolor Digital Fabric Printing Machine Software: ONYX Software
Color Mode: Dual CMYK Voltage: 380V
Print Head: Epson High DIP Head *3 Rip Software: Indoor & Outdoor Advertising Field
Compatible OS: Windows 7& Windows 10 Include: One 3.2m All-in-one Printing System And One Filter
Ink: Sublimation ,Pigment Ink Material: Polyster,Cotton,Silk And Wool Fabric
Gross Power: 6500W
High Light:

Cotton Fabric Digital Textile Printing Machine

,

380V Digital Textile Printing Machine

,

Pigment Ink Digital Textile Printer

Product name: Digital textile printing machine with pigment ink for cotton fabric




Product Feature:



1. Direct Print image into fabric

2. This machine with print and heat in one machine Save price and save place.

3. It is adopt EPSON printhead with high precision.

4. This machine max print width 3.2m





 Applications:

Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.



Specifications:



Model

CSR3200

Print head

Piezo technology, Epson print head

Ink

Sublimation Ink,Reactive ink and Pigment Ink

Color Mode

Dual CMYK

Nozzles

(180 nozzles*8 lines)*3 heads

Print Head Height

1.5mm/6mm(adjustable)

Ink Supply Mode

Continuous Ink Supply

Max Material Width

3300mm



Max Printing Width

3200mm

Roll Owter Diameter

3 Inch

Max Weight For Roll Material

100KG

Interface

USB3.0

RAM

128M

Printer Power

380V

Power

Direct Dye Sublimation Heater 3500W
Printer                       2000W

Environment

temperature    20-32 degree

Weight

1120KG





Machine working speed:











Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 65m2/h
720*1220dpi(4 pass) 45m2/h
720*1800dpi(6 pass) 35m2/h





Automatic feeding and collecting structure:




1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly

4,Keep the fabric good air permeability after sublimation

5,Printing groove designed specially for fabric printing to collect waste ink and keep

fabric clean.

6,Patented ink tanks keep ink supply constantly.







Competitive Advantage:



• Lower investment cost,3.2 meters width machine more usability
• One time molding mechanism design, reflect the stability and reliable of textile printer

• High speed
• Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
• Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.





Rip Software:


1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.

2.Colorful color replacement function can easily reproduce the required color.

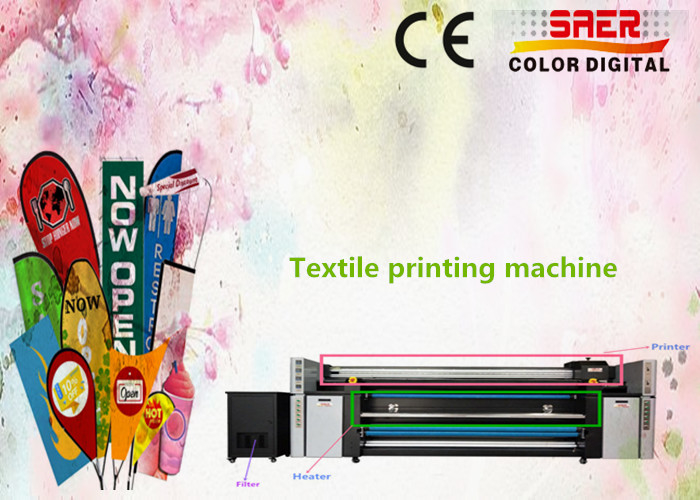

380V Cotton Fabric Digital Textile Printing Machine With Pigment Ink 0




Our Support:



(1) 12-month warranty

(2) Free techinical traning

(3) On-site service

(4) Sample free

(5) Lifetime maintenace


After
Sales Service:



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairment and replacement by international courier









Usage :

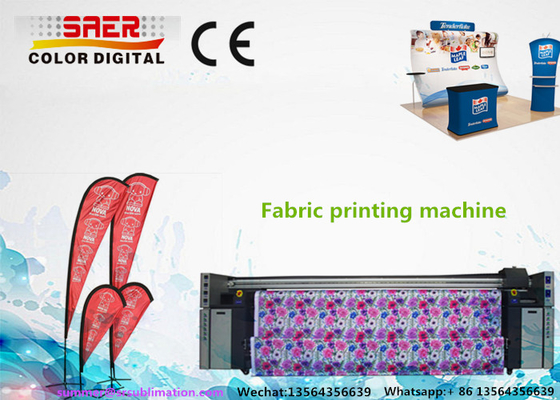

380V Cotton Fabric Digital Textile Printing Machine With Pigment Ink 1
