Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China |
| Brand Name: | SEAR |
| Certification: | CE Certification |
| Model Number: | CSR3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non fumigation wooden package |
| Delivery Time: | 14 days after get the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Plate Type: | Roll To Roll | Type: | Inkjet Printer |
|---|---|---|---|
| Condition: | New | Automatic Grade: | Automatic |
| Usage: | Cloths Printer, Fabric Printer | Voltage: | AC220-240V(Adaptive) 50/60 Hz±1Hz |
| Gross Weight: | 1000kg | Dimensions(l*w*h): | 4.50x1.04x1.45m |
| Ink Type: | Sublimation Ink /Pigment Ink /Reactive Ink | Warranty: | One Year |
| Color: | Dual CMYK | Rip Software: | Onyx |
| Highlight: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||

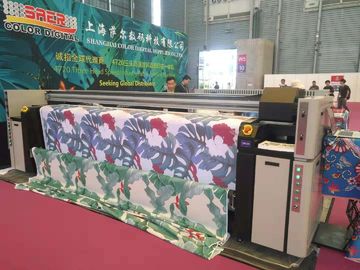

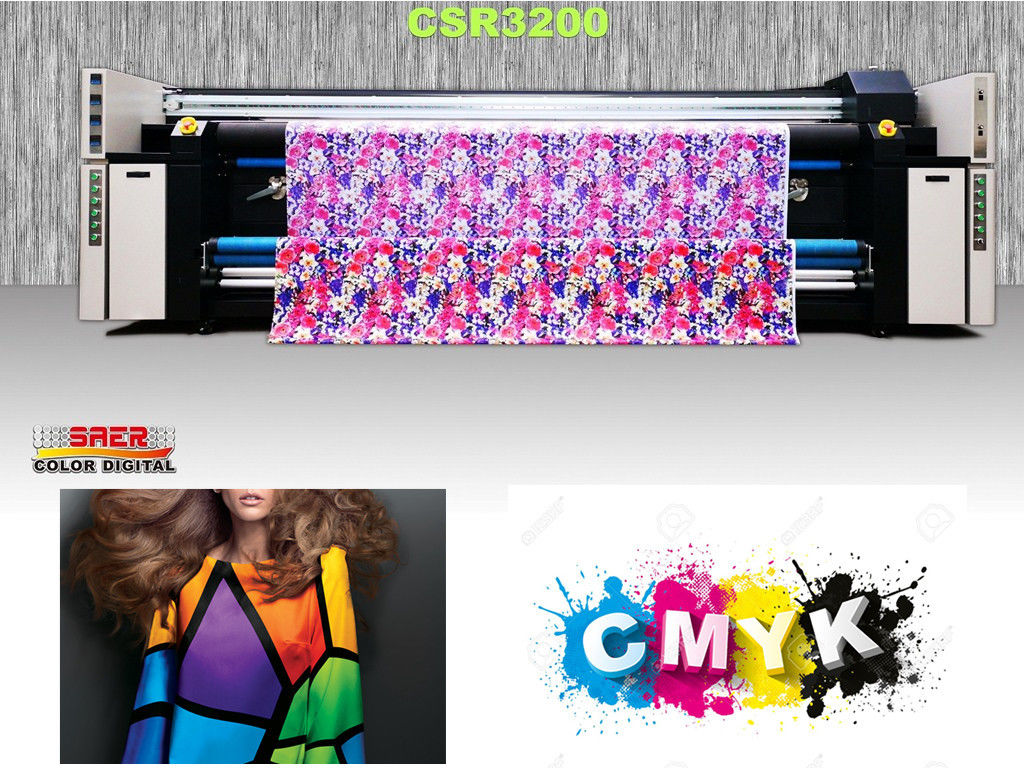

3.2m Digital Textile Printing Machine Cloth Printing Machine for Cotton /Polyester With Three Epson 4720 Heads
Specification:
| Product parameter | |
| Product name | Sulimation textile printing system |
| Model | CSR3200 |
| Include | One set of whole machine and one filter |
| Ink model | Sublimation ink |
| Available color | Dual CMYK |
| Print head | Piezo technology,3 Epson 4720 print heads |
| Max material width | 3300mm |
| Max printing width | 3200mm |
| Print head high control | 1.5mm/1.6mm(adjustable) |
| Media type | Polyester |
| Ink feeding system | 4 color mode:400cc cartriage*2color 800cc/color |
| Roll outer diameter | 3 inch |
| Max weight for roll material | 100kg |
| Head cleaning | Automatic/Manual |
| RAM | 128M |
| Printer power | AC220-240V(Adaptive) 50/60Hz±1Hz |
| Sublimation heater power | AC220-240V 16A 50/60Hz±1Hz |
| Heater power consuption | 3500KW |
| Printer power consuption | 6KW |
| Gross Weight | 1000KG |
| Operation environment | 20-23oC Humidity:40-60% (non-condensing) |
Speed of printer :
| Printing resolution and speed | Resolution(DPI) Speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1200dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Product features:
1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2. Our machine have excellent heat insulation, can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tuble have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Taking up can choose roll to roll .
8. Quick Tail Gas Treatment
9. Convenient to Maintain
10 . Easy to Set up and Operate
11. Easy to open the caver to clean inside of oven
12. Easy to change the active carbon from the filter
Textile, flag, poster, banner, tablecloth, wall paper, interior decoration, indoor and outdoor printing etc.
