3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V

3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V

    • 3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V
    • 3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V
  • 3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Machine Condition: New Media Type: Cotton&polyster
    Printing Solution: 1440dpi Automatic Grade: Automatic
    Voltage: 220V/380V Material Size: 3.2m
    Color: CMYK Brand: SAER
    Software: ONYX Software Core Components: Print Head
    High Light:

    3.2m Flag Fabric Printing Machine


    Fabric Printing Machine 1440dpi


    CMYK Fabric Printing Machine

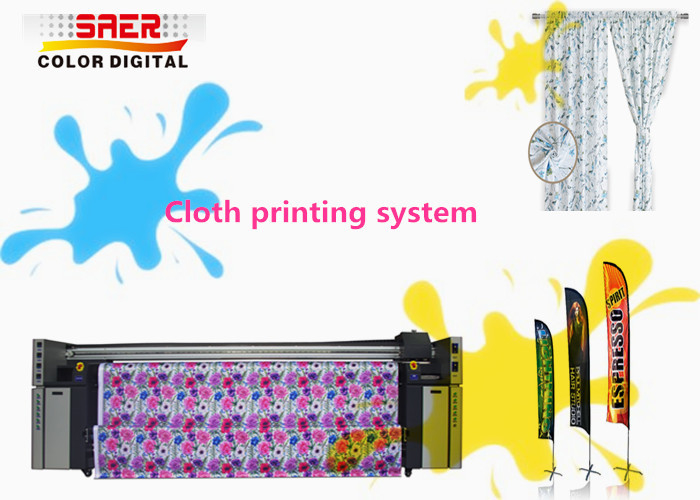

    Product name: Digital cotton fabric printing machine/ Flag printing system
    Quick Details: Our machine includes one printer, one heater (printer and heater are whole one set) and one filter
    Automatic feeding and collecting structure:
    1, Intelligent infrared heater and fan drying system;
    2, The machine through different quality tests is stable and competent enough for mass production requirement.
    3, No Pinch roller, let the fabric no wrinkle and print smoothly

    4, Keep the fabric good air permeability after sublimation
    5, Printing groove designed specially for fabric printing to collect waste ink and keep
    fabric clean.
    6, Patented ink tanks keep ink supply constantly.
    Machine Specifications:

                                                    Product Parameter
    Model typeCSR3200
    Print head4 pieces Epson print head
    InkSublimation ink, pigment ink
    Number of nozzles(400 nozzles*8lines)*4head
    ColorDual CMYK
    Print head high1.5mm/6mm (adjustable)
    Ink supply modeContinuous ink supply
    Max materials width3300mm
    Max printing width3200mm
    Roll outer diameter3 inch
    Maximum weight for roll material100kg
    Printer ValtageAC100-120V/AC220-240V(adjustive) 50/60HZ
    PowerHeater 3.5kw
    Printer 100w

    4 heads machine printing resolution working speed :

    Printing resolution and speed

    Resolution(dpi) speed
    360*1800dpi(3 pass) 80m2/h
    720*1220dpi(4 pass)65m2/h
    720*1800dpi(6 pass) 45m2/h

    1.Four pieces Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
    3.X axis and Y axis are using AC servo motors.
    4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
    5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system, make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    1)Customized Service:We Can Provide Customized Production and Packing for You!
    2)Print Service:
    We Also Provide FREE Printing Samples for You!
    3)Training Service:
    We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
    4)Guarantee Service:
    We Provide Lifetime Warranty for All MT Industry Machine Models!
    5)Solution Service:
    The Most Important We Have Digital Printing Solution Ability
    We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company
    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
    Outside: Advertising materials to make flag, banner, act fast show and so on.
    3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V 04 pieces 4720 print head CSR3200 Fabric priting sy...
    Package and delivery :
    Export packing in international standard wooden cases
    3.2m Flag Cotton Fabric Printing Machine 1440dpi 380V 1
    How To Order:
    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
