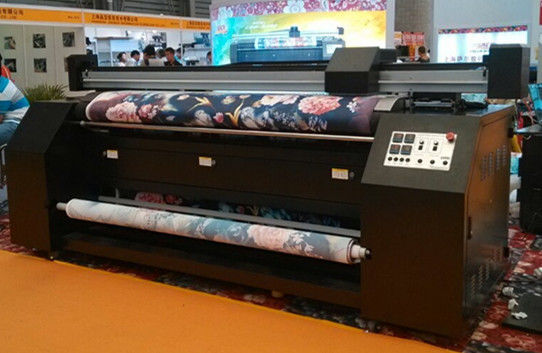

3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester

3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester

    • 3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester
    • 3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester
  • 3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
    Delivery Time: 7 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Digital Textile Printing Machine Application: Indoor & Outdoor
    Max Resolution: 1440 DPI Color Mode: Dual CMYK
    Gross Power: 5.5KW Print Head Type: Two Epson DX5 Print Head
    Plate Type: Roll To Roll Rip Software: Maintop 5.3 Rip Software Or Neostampa 8 Optional
    Compatible OS: Win XP & Win 7 Printing Width: 3200mm
    Ink: Sublimation Ink And Pigment Ink Automatic Grade: Automatic
    Ram: 128m Warranty: 1 Year
    High Light:

    large format printers

    ,

    fabric printer machine

    ,

    large format plotter

    3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester


    Machine Details


    Printing Resolution And Speed:

    Resolution(DPI)          Speed
    720*360dpi(2 pass)      40m²/h
    360*1080dpi(3 pass)     32m²/h
    720*720dpi(4 pass)      22m²/h
    720*1080dpi(6 pass)     18m²/h
    720*1440dpi(8 pass)     12m²/h




    Specifications:


    ModelCSR3200
    Print headPiezo technology,Epson DX5 printer head*2Pcs
    InkSublimation Ink,pigment and Reactive ink
    Color ModeDual CMYK
    Nozzles(180 nozzles*8 lines)*2 head
    Print Head Height1.5mm/6mm(adjustable)
    Ink Supply ModeContinuous Ink Supply
    Max Material Width3300mm
    Max Printing Width3200mm
    Printing MediaCoated polyster fabric
    Roll Owter Diameter3 Inch
    Max Weight For Roll Material100KG
    InterfaceUSB 2.0
    RAM128M
    Printer Power380V
    Power

    Direct Dye Sublimation Heater 3500W
    Printer 2000W

    Environmenttemperature 20-32 degree
    Weight1120KG




    Description:

    1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10. Low cost and no need any transfer paper.

    Applications:

    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
    Outside:Advertising materials to make flag,banner,act fast show and so on.

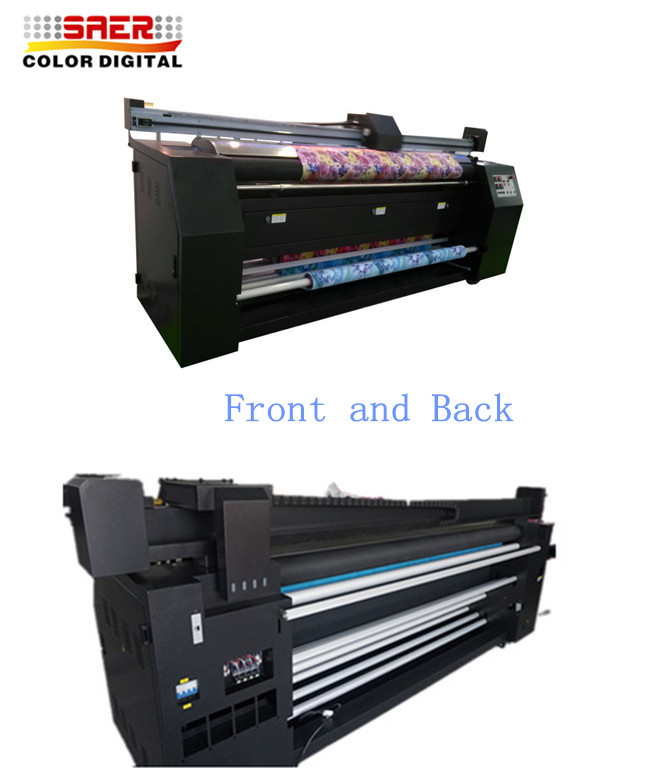

    3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester 0
    3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester 1
    3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester 2

    Printing Samples:

    3.2m Width No Pinch Roller Fabric Inkjet Printer For Dye Sublimation Silk Cotton Polyester 3
    Advantages:

    • Directly print on polyster,Cotton fabric,no need any transfer paper.
    • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
    • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.


    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
