6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine

6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine

    • 6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine
    • 6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine
  • 6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine

    Product Details:

    Place of Origin: China Shanghai
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm)
    Delivery Time: whithin 7 working days after get the payment
    Payment Terms: T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Machine Type: Dye Sublimation Heater Automatic Grade: Automatic
    Color & Page: Multicolor(Dual CMYK) Dimensions(L*W*H): 4350mm*1310mm*1230mm
    Working Type: Roll To Roll Model: SR 3200
    Power: 6.5kw Available Material: Any Kinds Of Fabrics
    High Light:

    dye sublimation equipment

    ,

    sublimation heater

    Digital Roller Dye Sublimation Dryer,Automatic Heating Machine




    Introduction



    Two Parts:



    1. Dye sublimation heater
    2. Filter fan


    Products Features:


    1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
    2. Our machine have excellent heat insulation,can save more power for you.
    3. Easy to load the media in and out oven during your machine working
    4. Blackbody tube have more thermal efficiency
    5. Intelligent PID Temperature Control
    6. Feeding and Taking up Are synchronous
    7. Perfect oil & water collect solution in oven..
    8. Quick Tail Gas Treatment
    9. Convenient to Maintain


    Description:



    Product Name

    Direct Dye Sublimation machine

    Model

    SR 3200

    Blackbody Tube Working Model

    Far Infrared

    Mainly Use

    Appear and fix the color

    Power

    6.5kw(include filter fan)

    Maximum Width

    3300mm

    Heat Tube Dimension

    3400mm

    Working Temperature Control

    Room temperature ~250°C

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Machine size

    4350mm*1310mm*1230mm(not include filter

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera



    Advantage:


    1. Exhaust without any smell, good environment need.
    2. Normal tempreture for exhaust, no dangerous for hot air out.
    3. High Efficiency cold system to make sure the exhaust temperture less than 25 Degree



    Specification:



    a. Low cost

    b. High productivity

    c. Working together with any piezo printers.

    d. Directly heating on textile with high temperature.

    e. Good after sales service.


    Application:


    • Connected with piezo printers,Mutoh,Rolamd,Mimaki etc,together to heat the wet ink,fix the printed picture color
    • Seperately operate,for roll materials heating

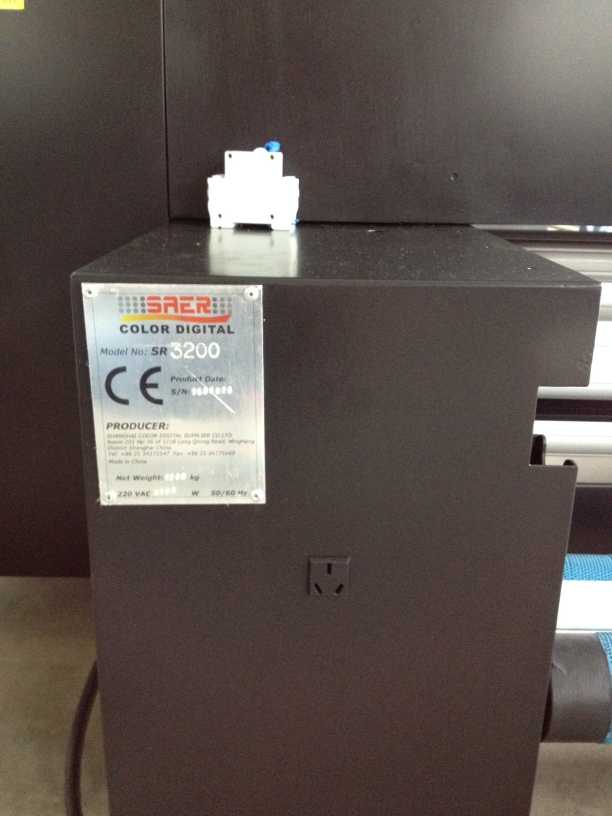

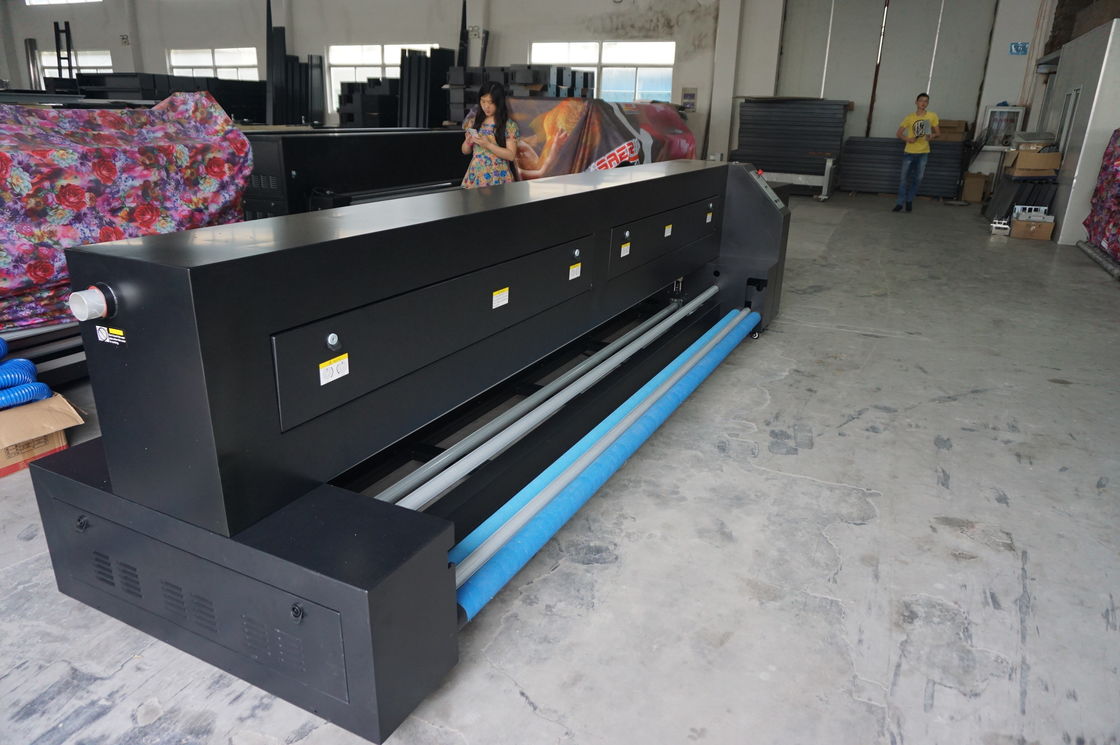

    Machine Details:


    6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine 0


    6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine 1



    Heated Samples:


    6.5kw Digital Roller Sublimation Dryer , Automatic Heating Machine 2
     After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
