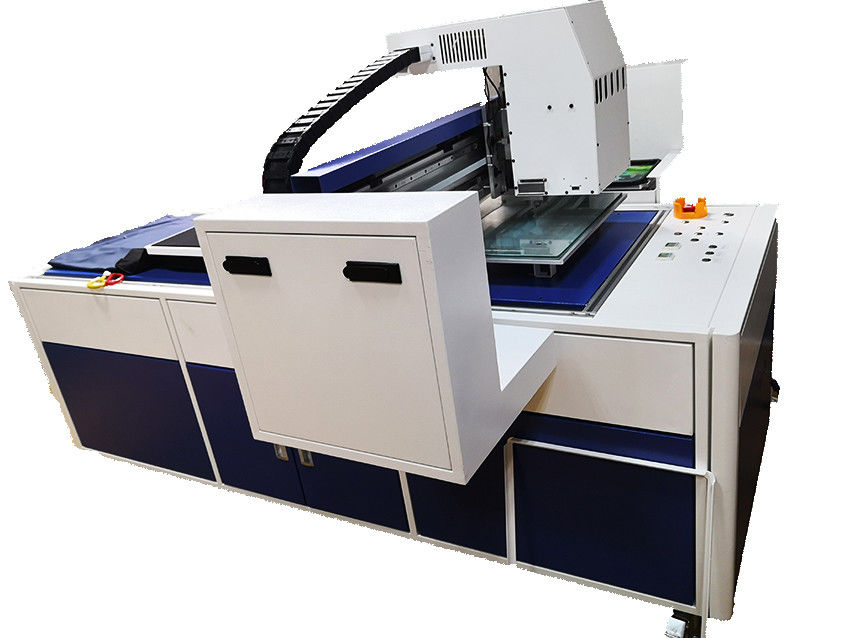

A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty

A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty

A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty

Product Details:

Place of Origin: CHINA
Brand Name: SAER
Certification: CE CERTIFICATE
Model Number: CSR2200(R)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: non fumigation wood package
Delivery Time: 7days after the payment
Payment Terms: T/T
Supply Ability: 1000 per month
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Automatic
Ink Type: Pigment Ink Type: Inkjet Printer,T Shirt Flatbed Printered
Warranty: 1 Year Color: C.M.Y.K.+W
After-sales Service Provided: Engineers Available To Service Machinery Overseas Product Name: Digital Printing Apparel Textile Flatbed Laser Cutting Machinery
High Light:

t shirt screen printing machine

,

garment printing machine

High quality A3 size DTG direct to garment printer t shirt printing machine dtg printer



High speed T shirt printing machine with 8 ricoh nozzle,
can print different color , three station design, support multi-version delivery, work efficiency.
A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 0


The t shirt printers specification and details





Items Technical Parameters
Model CSR2200(R)
Print head Print head Ricoh GH2220 head
QTY 8
Ink Color CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
Ink type Import pigment ink, good fastness,bright color
Ink supply Negative pressure supply ink
Speed Production A3 size 4pass Dark fabric 1min14s
Light fabric 58s
precision A3 size 6pass Dark fabric 1min52s
Light fabric 1min27s
Tray Standard configulation Optional configulation
Tray size 380*480mm 600*1200mm
Tray Numbers 3 1
Interface USB
Computer system CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
Working environment temperature:20℃-30℃, humidity:55%-70%
Power supply 210-230VAC 50/60 HZ 16A
Software Rip software
Machine Dimension 2065*1705*1240mm
Machine Weight 260kg



T shirt application samples



A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 1

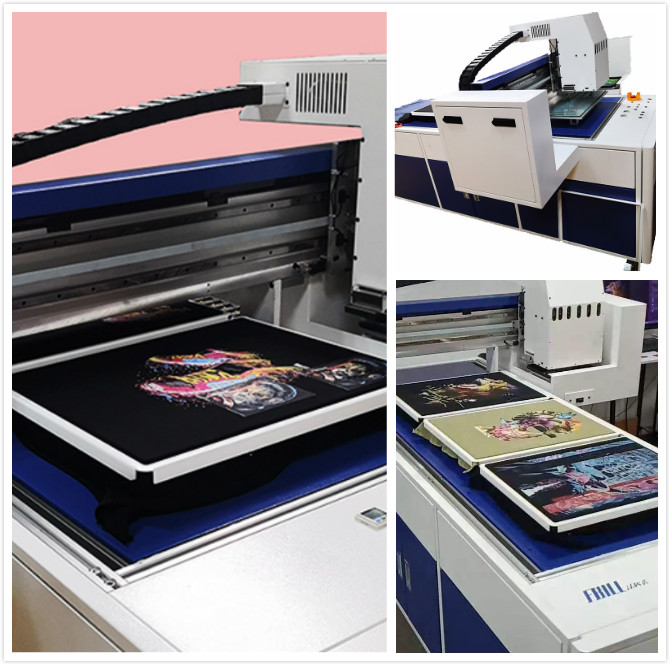

 printing surface can print 600*1200.

 head can lift by 6 cm.Can replace by any size table

The spacing between printing nozzle and cloth can maintain a height of 10mm.With the addition of a head-mounted collider, the spacing can greatly reduce the risk of rubbing against the head of the nozzle

A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 2

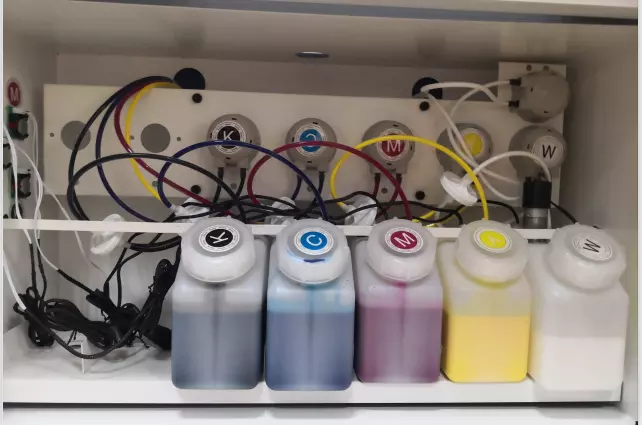

with high viscosity of ink resin, high fastness of printed pattern.The ink is smooth and not easy to plug

can be printed in cycles, saving the waiting time of manual laying.

Printing speed of output A3 format printing time is 1 minute 50.



A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 3

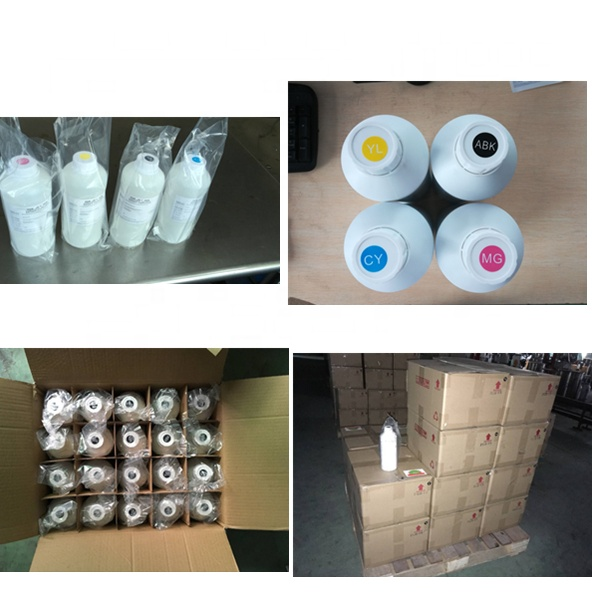

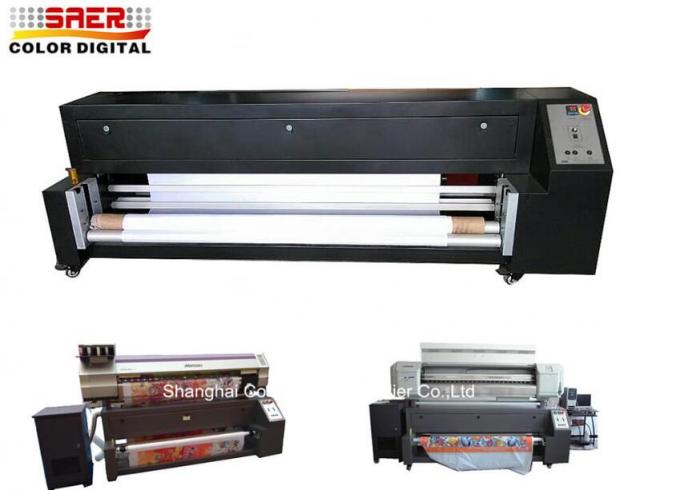

company more relative products with inks and different fabric supply:


A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 4
A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 5







Shanghai Color Digital Supplier co.ltd

With 17 years experience, we have the ability to supply all products in reasonable price and real-time support because of our own efficiant production line, professional engineers, strict purchasing channel and altitudinal responsible action.

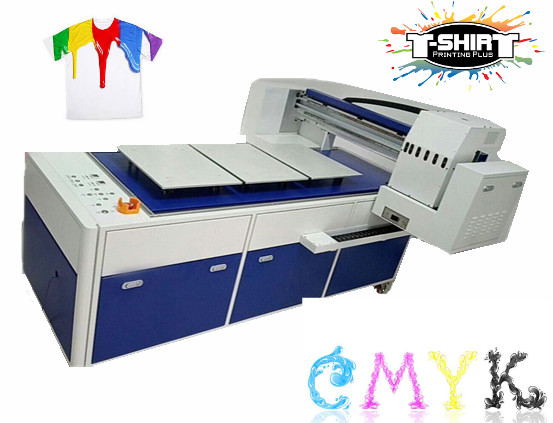

 Our T-shirt printer ,the cost is also very low ,true customization can meet the needs of industrial production . Output directly from the computer ,no plate ,sunburn or any other complex process involved.Automatic working and fast printing speed improve the production efficiency and reduce the cost.




A3 Size DTG Direct To Garment Printer High Efficiency 1 Year Warranty 6
Packaging: packed with wooden box perfectly,  and put into strong carton box.
Payment Term: Usually through T/T , and paypal and west union.
Delivery Term: EX-WORK, FOB shanghai, CIF, etc.
Lead Time: Around 10days after order confirmed.



for more machine inquiry pls feel free to contact us!
