Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR2200/CSR3200 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | with no fumigation wood box package |
| Delivery Time: | Within senven days after the payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
| Automatic Grade: | Automatic | Plate Type: | Digital Printing,Textile Printer,Roll To Roll |
|---|---|---|---|
| Ink Type: | Sublimation Ink | Type: | Inkjet Printer |
| Warranty: | One Year | Color: | 4 Colors (CMYK) |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Polyester Printing Machine |
| Ink Color: | C / M / Y / K | Applicable Industri: | Printing Shops, Advertising Company |
| Highlight: | Direct Fabric Flag Printing Machine,Advertising Banner Flag Printing Machine,65m2/H Sublimation Printing Machine |
||

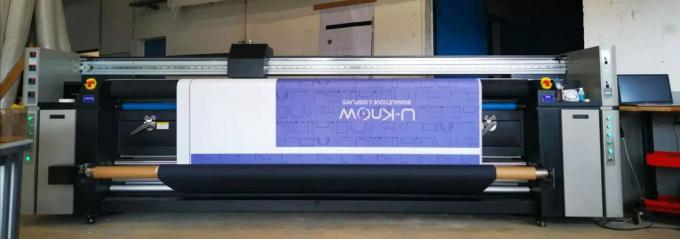

textile printer plotter direct fabric flag printing machine banner display printer
Printing Machine Specification:
| Product name | Economic CSR2200 Machine | ||
| Item No. | CSR 2200 | ||
| Printhead | EPSON | ||
| Number of Printhead | Three | ||
| Print Resolution | 1800dpi | ||
| ink | sublimation ink/pigment ink. | ||
| Maximum Print Width | 2000mm | ||
| Print Speed | 3 pass | 360x1800DPI | 65m²/h |
| 4 pass | 720X1200DPI | 45m²/h | |
| 6 pass | 720x1800DPI | 35m²/h | |
| Printer Head height | Adjustable 1.5~6mm | ||
| Ink | Type | Sublimation Ink, pigment ink | |
| Color | dual CMYK | ||
| Ink Supply System | Continuous Ink Supply System | ||
| Media | Maximum Width | 2000mm | |
| Feeding mode | Automatic feeding and taken-up system | ||
| weight | Sublimation machine net weight 800kg, gross weight 1000kg | ||
| power consumption | sublimation heater | Directly dye sublimation heater 3500w | |
| printer | printer 1000w | ||
| printer power | AC210-230v | 50-60HZ 16A | |
| temperature | 25-35°C | ||
| humidity | 35-65%(non-condensing) | ||
CE Approvel
High effecient printing
Improving print quality
variety of printing methods
Ink max economy function
Optional head cleaning
optional slight, Medium,Powerful Ink Pumping ways
Humanized function
high power,long life, adjustable print speed , one-way , two-way, step-by-step ways can be choose,and Support computer interface and machine interface operation
Improving printhead life
Color channel free change by requipment ,
effective Improving printhead life
Application:
Print media:coverlet,window cloth,canvas, table cloth.ect.
