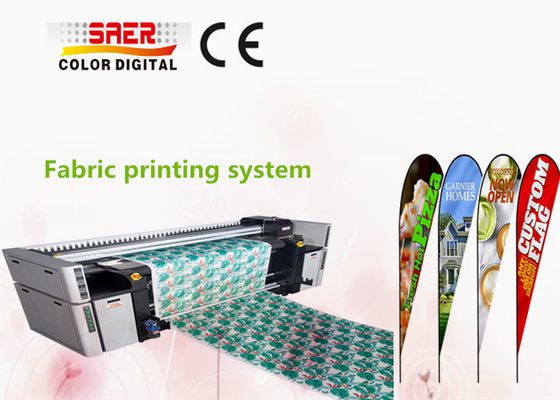

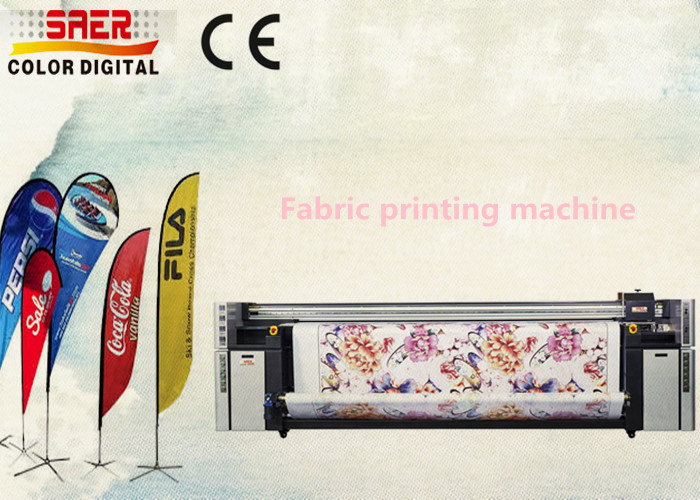

Automatic Digital Textile Printing Machine With High Speed

Automatic Digital Textile Printing Machine With High Speed

    • Automatic Digital Textile Printing Machine With High Speed
    • Automatic Digital Textile Printing Machine With High Speed
  • Automatic Digital Textile Printing Machine With High Speed

    Product Details:

    Place of Origin: CHINA
    Brand Name: SAER
    Certification: CE CERTIFICATE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: without fumigation wooden package
    Delivery Time: 10 workdays after payment
    Payment Terms: T/T
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Ink: Sublimation Ink,pigment Ink
    Usage: Flags Printer Automatic Grade: Automatic
    Keywords: Digital Printer Machine Product Name: Textile Directly Printer
    Feature: High Speed Print Head: Epson
    Resolution: 1800DPI Ink Type: Sublimation,textile Sublimation Ink
    Printing Material: Polyester Cotton Mesh Fabric Textile Condition: New
    Highlight:

    Digital Textile Printer 1800DPI

    ,

    Automatic Digital Textile Printing Machine 1800DPI

    ,

    Flags Digital Textile Printing Machine

    Product name:  Factory Manufacturer Textile Printing Machine With High Speed



    Specifications:



    Product Parameter
    ModelCSR2200
    Print headPiezo technology,Epson printer head
    InkSublimation ink Pigment ink optional
    Color modeDual CMYK
    Print head higherAdjustable
    Number of nozzles400 nozzles*8lines
    Ink supply modeContinuous ink supply
    Max meterials width2100mm
    Max printing width2000mm
    Printing resolution and speedResolutionspeed
    360*1080dpi 3pass65㎡/h
    720*1200dpi 4pass45㎡/h
    720*1800dpi 8pass35㎡/h
    Roll owter diameter3 Inch
    Max weight for roll materials100kg
    InterfaceUSB 3.0
    RAM128M
    Printer with heater powerAC210-230V 50/60Hz 16A
    Power consumtionSublimation Heater 3500w
    Printer 1000W
    EnvironmentTemperature:25-35℃
    Humidity:35-65℃(Non-condensing)
    Rip Software Onyx
    Net Weight800kg
    PackageNon Fumigation Wooden Package
    Delivery TimeWithin 7 working days after payment


    Content:Combined with 2m all-in-one printing system and filter fan
    machine CE certification provided.





    Description:

    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate
    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.





    Print machine usage:


    Home Decoration: Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.


    Automatic Digital Textile Printing Machine With High Speed 0




    Advantage:


    This machine prints directly on fabric without heating transfer process. It can work continuously for 24 hours without corrugated.

    1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
    2.Adopt professional feeding system and fit to textile without tension. Stable feed
    resolution and stability material, make sure printing process
    3. No need platemaking and fit to flag and scroll
    4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
    5. Environmental smoke exhaust filter system to handle smoke efficiently and make clean work shop
    6. Use open ink supply system which is compatible to more brand sublimation ink

    Automatic Digital Textile Printing Machine With High Speed 1

    Packing and shipping details:


    Automatic Digital Textile Printing Machine With High Speed 2


    FAQ:

    1) How can I place order?
    A: Contact us about your order details,we will prepare the PI .

    2) How can I pay you?
    A: uaually we accept T/T , Western Union,Money Gram.

    3) How about the after-sale service?
    A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.

    4) If I buy the machine, can you supply the ink, material, etc also?
    A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

    5) I want to open a new business, can you give me some ideas?
    A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.


    Inkjet printer digital printing flags printer woring video:
