Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Non-fumigation wooden box|
|Delivery Time:||10 work days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1000 sets per month|
|Color & Page:||MULTICOLOR||Heater Power:||6kw|
|Voltage:||110V/220V||Suitable Fabric Type:||Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc|
|Media Processing:||Roll To Roll + Auto Feeding + Auto Roll Up|

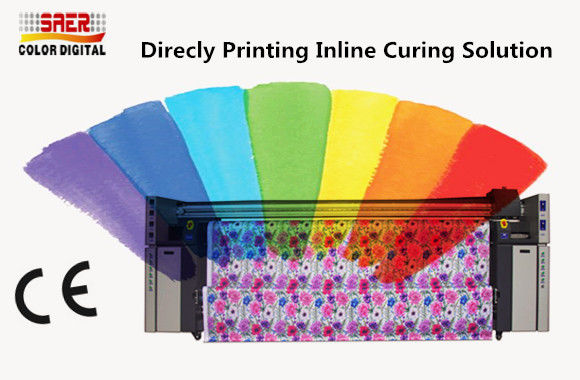

Product name: Low Consumption Digital Fabric Pinting Machine with high resolution
Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Printing resolution and speed
|360*1800dpi(3 pass) 65m2/h|
|720*1220dpi(4 pass) 45m2/h|
|720*1800dpi(6 pass) 35m2/h|
1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
|Print head||3 pieces Epson 4720|
|Ink||Sublimation ink, pigment ink|
|Number of nozzles||(400 nozzles*8lines)*3head|
|Print head high||1.5mm/6mm (adjustable)|
|Ink supply mode||Continuous ink supply|
|Max materials width||3300mm|
|Max printing width||320000mm|
|Roll outer diameter||3 inch|
|Maximum weight for roll material||100kg|
|Printer Power||AC100-120V/AC220-240V(adjustive) 50/60HZ|
NEW technology on Epson 4720, less ink consumption
High Resolution up to 1440dpi
High Printing speed up to 32sqm/h
High working stability, industrial performance
Long Using Life
Support three Epson 4720 print head
Perfect Color Presentation
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
