Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai Of China |
| Brand Name: | SAER |

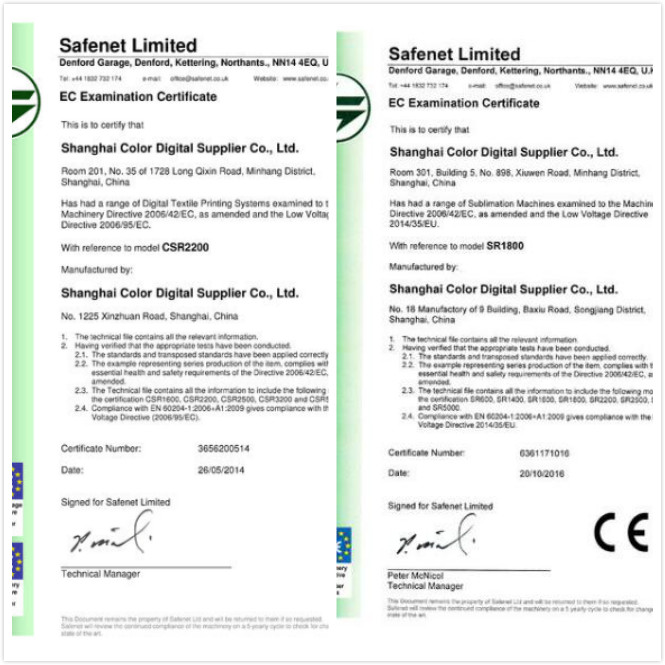

| Certification: | CE |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | None fumigation wooden package |
| Delivery Time: | 10 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Product Name: | 2.2m Flag Printing Machine | Application: | Indoor & Outdoor |
|---|---|---|---|
| Automatic Grade: | Automatic | Size Of Panel: | 2.2m |
| Max Resolution: | 1400dpi | Type: | Inkjet Printer |
| Net Weight: | 646kg | Print Head: | 3 Epson |
| Color Model: | Dual CMYK | Ink Supply Model: | Continuous Ink Supply |
| Max Materials Width: | 2.3m | Rip Software: | Rip Software |
| High Light: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||
· Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Specifications:
| Product name | Economic CSR2200 Sublimation Machine | ||
| Item No. | CSR 2200 | ||
| Printhead | EPSON | ||
| Number of Printhead | Three | ||
| Print Resolution | 1800dpi | ||
| ink | sublimation ink/pigment ink. | ||
| Maximum Print Width | 2000mm | ||
| Print Speed | 3 pass | 360x1800DPI | 65m²/h |
| 4 pass | 720X1200DPI | 45m²/h | |
| 6 pass | 720x1800DPI | 35m²/h | |
| Printer Head height | Adjustable 1.5~6mm | ||
| Ink | Type | Sublimation Ink, pigment ink | |
| Color | dual CMYK | ||

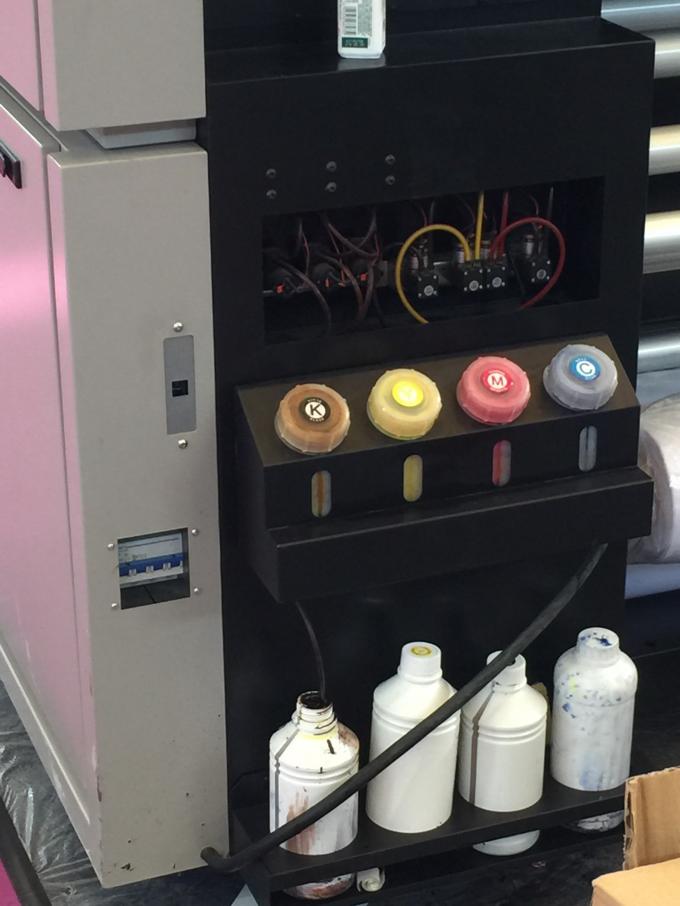

| Ink Supply System | Continuous Ink Supply System | ||
| Media | Maximum Width | 2000mm | |
| Feeding mode | Automatic feeding and taken-up system | ||
| weight | Sublimation machine net weight 800kg, gross weight 1000kg | ||
| power consumption | sublimation heater | Directly dye sublimation heater 3500w | |
| printer | printer 1000w | ||
| printer power | AC210-230v | 50-60HZ 16A | |
| temperature | 25-35°C | ||
| humidity | 35-65%(non-condensing) | ||
Advantages:
Application:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.

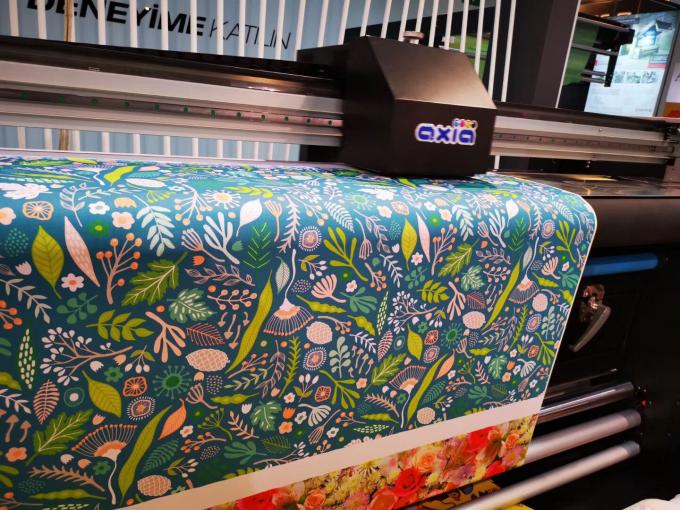

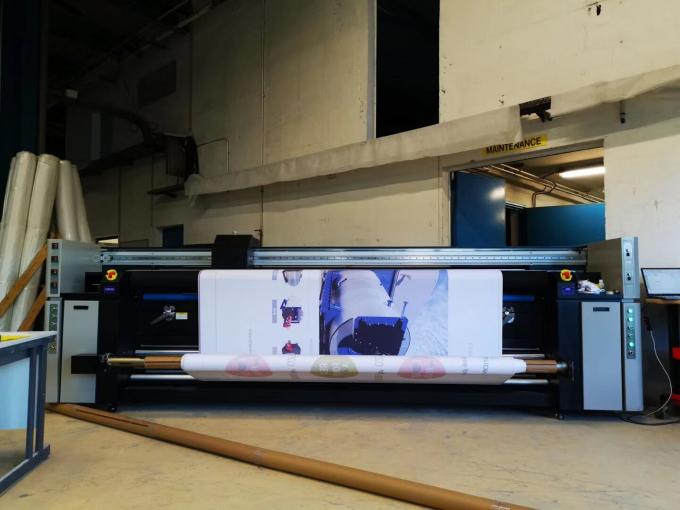

Machine Details:
