Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials

Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials

    • Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials
    • Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials
    • Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials
  • Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials

    Product Details:

    Place of Origin: China,Shanghai
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4560*1180*1560mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Fabric Banner Printing Machine Application: Outdoor Advertising & Indoor Decoration
    Maximum Resolution: 1440 DPI Ink: Waterbased Sublimation,Reactive And Pigment Ink
    Speed: 40 Sqm / Hour Maximum Ink Supply Mode: Continous Ink Supply
    Print Head: Epson DX5 Print Color: Double C M Y K

    Banner Sublimation Printing Machine On Various Fabric Materials





    Specifications



    Model

    CSR3200

    Print head

    Piezo print head DX5

    Ink

    Water based disperse Dye Sublimation Ink,Reactive Ink,Pigment Ink

    Color Mode

    Dual CMYK

    Nozzles

    (180 nozzles*8 lines)*2 head

    Print Head Height

    1.5mm/6mm(adjustable)

    Resolution 360dpi,720dpi,1080dpi,1440dpi

    Ink Supply Mode

    Continuous Ink Supply

    Max Material Width

    3300mm

    Max Printing Width

    3200mm

    Printing Media

    Coated polyster fabric,cotton,Silk and Wool Fabric

    Three-section Heating System Three-section Embedded Heating System
    Drying system Equipped with cooler fan and optional infrared heater with adjustable temperature

    Roll Owter Diameter

    3 Inch

    Auto print head cleaning system With anti-blockage & moisturizing function

    Max Weight For Roll Material

    100KG

    Interface

    USB 2.0

    RAM

    128M

    Printer Power

    380V

    Power

    Direct Dye Sublimation Heater 3500W
    Printer                       2000W

    Environment

    temperature    20-32 degree

    Weight

    1255KG(with filter)


    Machine Details

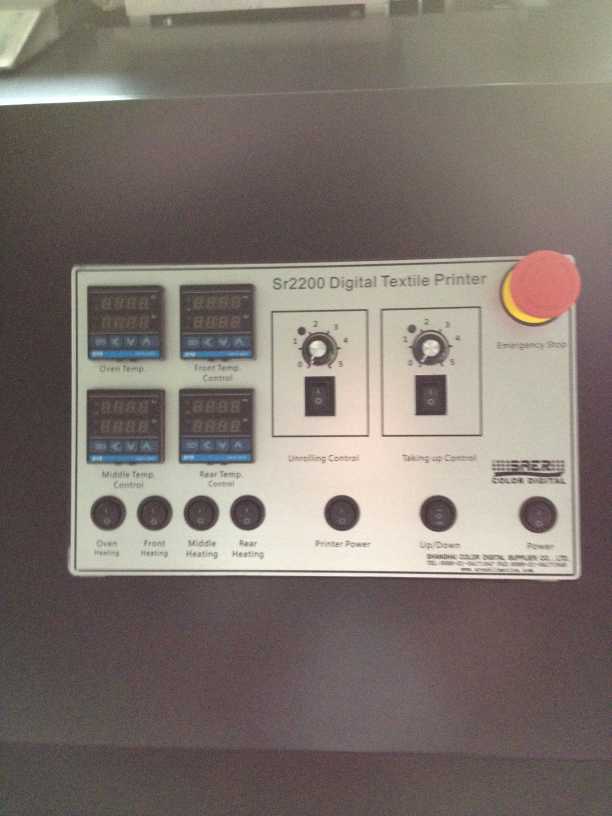

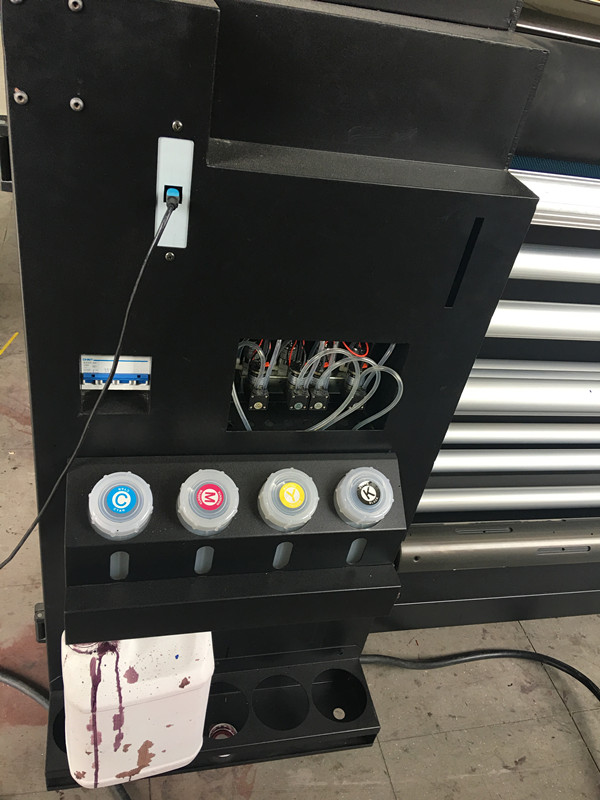

    ink fountain CISS system mute guid rail control pannel
    Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials


    Procedures:



    1. Turn on machine
    2. Fill ink into ink box
    3. Loading material
    4. Printing by 4 or 6 pass
    5. Set tempersture
    6. Heating

    Printing Resolution And Speed:

    Resolution(DPI)          Speed
    720*360dpi(2 pass)      40m²/h
    360*1080dpi(3 pass)     32m²/h
    720*720dpi(4 pass)      22m²/h
    720*1080dpi(6 pass)     18m²/h
    720*1440dpi(8 pass)     12m²/h

    Advantages:


    • Directly print on polyster,Cotton fabric,no need any transfer paper.
    • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
    • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.


    Description:

    1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10. Low cost and no need any transfer paper.


    Rip Software(Onyx):


    1. Easy to complete the Photos / vector data,replacement of CMYK,and can easily to achieve color change.

    2.Colorful color replacement function can easily reproduce the required color.


    Applications:

    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
    Outside:Advertising materials to make flag,banner,act fast show and so on.


    Ink for fabric:

    • disperse ink : directly onto polyester and blends
    • Reactive ink:on all natural fibers such as cotton,silk,wool,etc
    • Pigment ink:any kind of fabric


    Printing Samples:



    Sublimation ink Reactive ink Pigment ink
    Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials Banner Sublimation Digital Textile Printing Machine On Various Fabric Materials


    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
