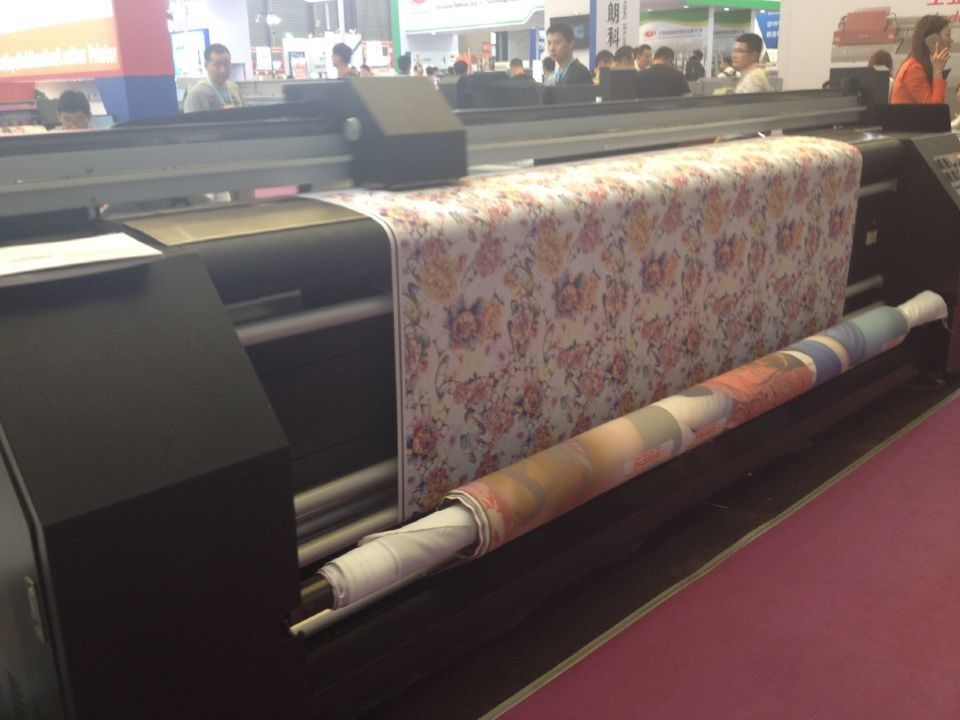

Cloth Sublimation Printing Machine With Automatic / Manual Head Cleaning

Cloth Sublimation Printing Machine With Automatic / Manual Head Cleaning

Cloth Sublimation Printing Machine With Automatic / Manual Head Cleaning

Product Details:

Place of Origin: Shanghai of China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 26,000 usd per set
Packaging Details: Non fumigation wooden package
Delivery Time: 14 days after get the payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Plate Type: Roll To Roll Type: Digital Printer
Automatic Grade: Automatic Usage: Fabric Printing
Color Model: Dual CMYK Material: All Kinds Of Fabric And Textile

Product name: Fabric printing machine / Sublimation flag printing machine





Product features:



1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.




2. Our machine have excellent heat insulation, can save more power for you.




3. Easy to load the media in and out oven during your machine working




4. Blackbody tuble have more thermal efficiency







5. Intelligent PID Temperature Control



6. Feeding and Taking up Are synchronous




7. Taking up can choose roll to roll .







8. Quick Tail Gas Treatment




9. Convenient to Maintain




10. Easy to Set up and Operate









Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



Specification:



Product parameter
Product name Sulimation textile printing system
Model CSR3200
Include One set of whole machine and one filter
Ink model Sublimation ink
Available color Dual CMYK
Print head Piezo technology,2 Epson DX7 print head
Max material width 3300mm
Max printing width 3200mm
Print head high control 1.5mm/1.6mm(adjustable)
Printing resolution and speed Resolution(DPI)                  Speed
720*360dpi(2 pass)         40m2/h
360*1080dpi(3 pass)        32m2/h
720*720dpi(4 pass)          22m2/h
720*1080dpi(6 pass)        18m2/h
720*1440dpi(8 pass)        12m2/h
Media type Polyester
Ink feeding system 4 color  mode:400cc  cartriage*2color  800cc/color
Roll outer diameter 3 inch
Max weight for roll material 100kg
Head cleaning Automatic/Manual
RAM 128M
Printer power AC380V(Adaptive)  50/60Hz±1Hz
Heater power consuption 3500KW
Printer power consuption 7.5KW
Weight 890KG
Operation environment 20-23oC   Humidity:40-60% (non-condensing)





Application:



Cloth Sublimation Printing Machine With Automatic / Manual Head Cleaning
