Shanghai Color Digital Supplier Co., Ltd.

Shanghai Color Digital Supplier Co., Ltd.

Professional Digital Textile Printing Equipment & Relevant Materials General Supplier

Home ProductsFabric Plotter

Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval

Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval

Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval

Product Details:

Place of Origin: Shanghai City Of China
Brand Name: SAER
Certification: CE Approval
Model Number: CSR 2200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: None fumigation wooden package (Package size: 3350*1070*1550mm)
Delivery Time: 10 working days after the payment
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets / Month
Contact Now
Detailed Product Description
Product Name: Digital Fabric Plotter Max Resolution: 1400DPI
Print Head: Epson Printhead Number Of Head: 3Pieces
Ink Supply Model: Continuous Ink Supply Max Materials Width: 2300mm
Compatible OS: Win XP&Win 7 Color Management: Superior ICC Profile
Printing Interface: Connect With Computer

Inkjet 4720 Epson Printhead Fabric Printer Machine Textile Printer for Polyester



Product Quick Description:



CSR 2200 Digital Textile Printing Machine,combined with 2.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade.



Specification:



1. Low cost
2. High productivity
3. Sublimation system
4. Directly to printing on textile

5. Good after sales service



Parameters:


Product name Economic CSR3200 Sublimation Machine
Item No. CSR 3200
Printhead EPSON 4720
Number of Printhead Three
Print Resolution 1800dpi
ink sublimation ink/pigment ink.
Maximum Print Width 2100mm
Print Speed 3 pass 360x1800DPI 65m²/h
4 pass 720X1200DPI 45m²/h
6 pass 720x1800DPI 35m²/h
Printer Head height Adjustable 1.5~6mm
Ink Type Sublimation Ink, pigment ink
Color dual CMYK
Ink Supply System Continuous Ink Supply System
Media Maximum Width 2000mm
Feeding mode Automatic feeding and taken-up system
weight Sublimation machine net weight 800kg, gross weight 1000kg
power consumption sublimation heater Directly dye sublimation heater 3500w
printer printer 1000w
printer power AC210-230v 50-60HZ 16A
temperature 25-35°C
humidity 35-65%(non-condensing)







Available Ink and Material:



a. Sublimation Ink:

      mainly used in polyester fabric.

b. Reactive Ink:

      For cotton,linen and silk etc.

c. Pigment Ink:

      For all kinds of textile fabrics.



Detail Description:



1. Double Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.

2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter

3. X axis and Y axis are using AC servo motors.

4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.

5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.

6. The unique print platform design to make the cloth always smooth in the process of printing.

7. Unique filtering lampblack system,make the picture very clean.

8. Taking up and feeding roller are inflatable roller.

9. Taking up and feeding fabric are smoothly

10. Low cost and no need any transfer paper.



Application:



Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.

Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.



After Sales Service:



1. One year warranty

2. Provide 24 hours online service.

  when you first time operate the machine,our engineer will be online to guide you how to operate machine.

  When your machine gets any problem, our engineer will help you to solve it through remote control.

3. If necessary,we can send you new spare part.

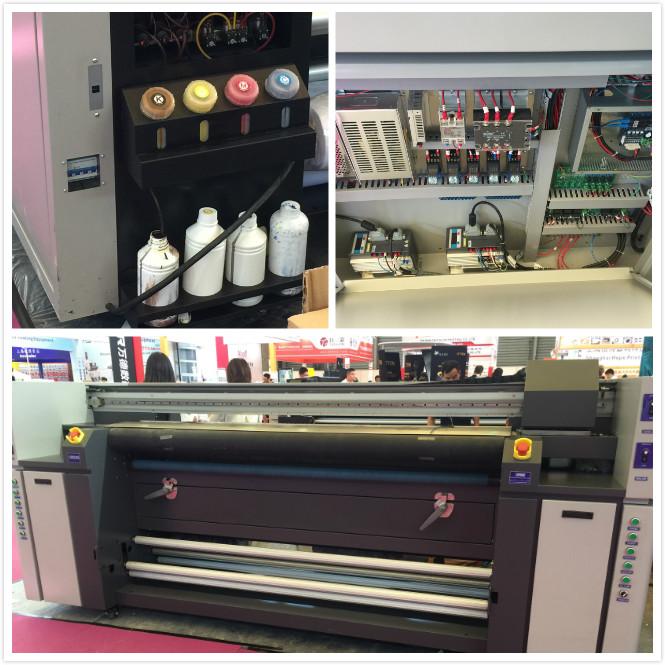

Machine Details:



Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval
Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval
Continuous Ink Supply Banner Plotter Printer For Polyester CE Approval
