Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head

Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head

    • Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head
    • Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head
  • Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
    Delivery Time: 7 working days after receive your payment
    Payment Terms: T/T
    Supply Ability: 1000 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Fabric Plotter Ink System:: Continous Ink System(CISS)
    Max Resolution: 1440 DPI Color Mode: CMYK
    Voltage: 380V Gross Power: 5.5KW
    Print Head Type: Two Epson DX5 Print Head Plate Type: Roll To Roll
    Rip Software: Onyx Compatible OS: Win XP & Win 7 / 8 / 10
    Printing Width: 3.2m Ink: Sublimation,Reactive Or Pigment Ink
    High Light:

    fabric printer machine

    ,

    large format plotter

    Digital Fabric Plotter Waterbased Ink Printing Epson DX5 Banner Machine


    Specifications


    Model

    CSR3200

    Print head

    Piezo technology,Epson DX5 * 2Pcs

    Ink

    Sublimation Ink,Reactive Ink,Pigment Ink optional

    Color Mode

    Dual CMYK four colors

    Nozzles

    (180 nozzles*8 lines)*2 heads

    Print Head Height

    1.5mm/6mm(adjustable)

    Ink Supply Mode

    Continuous Ink Supply

    Max Material Width

    3300mm

    Max Printing Width

    3200mm

    Printing Media

    Coated polyster fabric,cotton,Silk and Wool Fabric

    Roll Owter Diameter

    3 Inch

    Max Weight For Roll Material

    100KG

    Interface

    USB 2.0

    RAM

    128M

    Printer Power

    380V

    Power

    Direct Dye Sublimation Heater 3500W
    Printer                       2000W

    Environment

    temperature    20-32 degree

    Weight

    1120KG

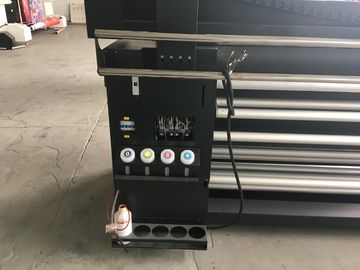

    Machine Details

    Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head 0

    Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head 1

    Printing Resolution And Speed:

    Resolution(DPI)          Speed
    720*360dpi(2 pass)      40m²/h
    360*1080dpi(3 pass)     32m²/h
    720*720dpi(4 pass)      22m²/h
    720*1080dpi(6 pass)     18m²/h
    720*1440dpi(8 pass)     12m²/h

    Advantages:


    •  Directly print on polyster,Cotton fabric,no need any transfer paper.
    • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
    • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.


    Description:

    1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10. Low cost and no need any transfer paper.

    Applications:

    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
    Outside:Advertising materials to make flag,banner,act fast show and so on.

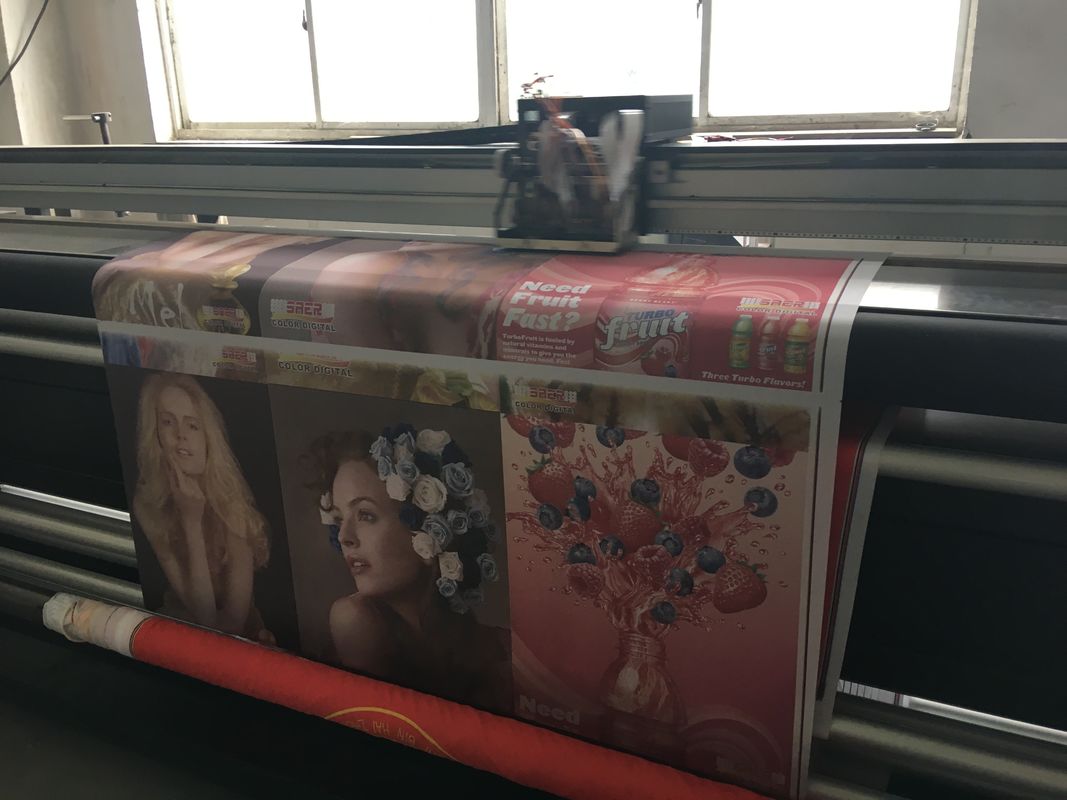

    Printing Samples:

    Digital Fabric Plotter Waterbased Ink Printing With Two Epson Dx5 Print Head 2
    After Sales Service:

    Warranty: 12 months. When the warranty expired, technician support is still offered. Hence we offer lifelong aftersale service.
    Print service: We can offer you free samples and free sample printing
    Training service: We offer 3-5 days free training with free accommodations in our factory, including how to use the software, how to operate the machine, how to keep daily maintenance, and useful printing technologies, etc.
    Installation service: On-line support for installation and operation. You can discuss operation and maintenance with our technician online support service by Skype, Wechat etc. Remote control and on-site support will be provided upon request.
