Digital Fabric Textile Dye Sublimation Printer With Take Up System

Digital Fabric Textile Dye Sublimation Printer With Take Up System

    • Digital Fabric Textile Dye Sublimation Printer With Take Up System
    • Digital Fabric Textile Dye Sublimation Printer With Take Up System
  • Digital Fabric Textile Dye Sublimation Printer With Take Up System

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Print Head: Epson High Resolution Print Head Heater Power: 6kw
    Automatic Grade: Automatic Voltage: 110V/220V
    Suitable Fabric Type: Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
    Ink Type: Sublimation Ink, Pigment Ink Color & Page: MULTICOLOR
    High Light:

    Take Up System Dye Sublimation Printer

    ,

    Digital Textile Dye Sublimation Printer

    ,

    Dye Sublimation Digital Fabric Printing Machine





    Product name: Digital textile dye sublimation printer with take up system







    Machine Printing Speed:











    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h







    Description:





       Print head:



      Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.



      Guid Rail:



    Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .



       X axis and Yaxis:



     X axis and Y axis are using AC servo motors.







    Advantages:



    1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    2. The unique print platform design to make the cloth always smooth in the process of printing.

    3. Unique filtering lampblack system, make the picture very clean.

    4. Taking up and feeding roller are inflatable roller.

    5. Taking up and feeding fabric are smoothly







    Machine Specification:



    Product Parameter
    Model type CSR2200
    Print head 3 pieces Epson print head
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 2200mm
    Max printing width 2000mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)







    Competitive Advantage:





    NEW technology on Epson high resolution print head , less ink consumption

    High Resolution up to 1440dpi

    High Printing speed up to 45sqm/h

    High working stability, industrial performance



    High Productivity

    Long Using Life

    High Yield

    Support three pieces  Epson print head

    Perfect Color Presentation









    Application industry:





    1), personality print: such as shops, cell phone decoration shop, personality gift shop.

    2), advertising industry: indoor and outdoor advertising.

    3), products proofing: all kinds of traditional printing sample production.

    4), studio: digital image production.

    5), clothing industry: sample print or character pattern of color printing.

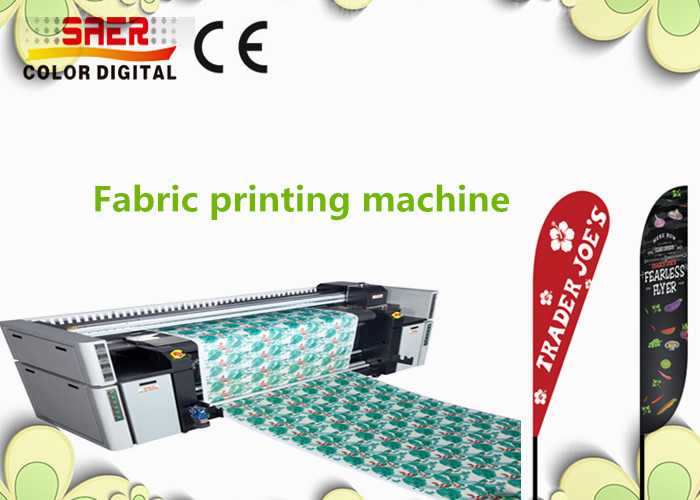

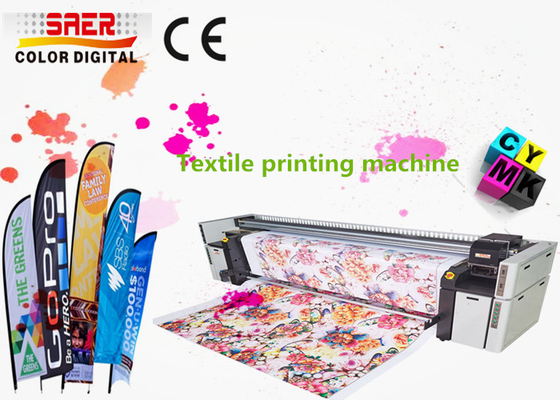

    Digital Fabric Textile Dye Sublimation Printer With Take Up System 0Digital Fabric Textile Dye Sublimation Printer With Take Up System 1
