Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR2200(R) |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | non fumigation wood package |
| Delivery Time: | 7days after the payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 per month |
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Ink Type: | Pigment Ink | Type: | Inkjet Printer,T Shirt Flatbed Printered |
| Warranty: | 1 Year | Color: | C.M.Y.K.+W |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Digital Printing Apparel Textile Flatbed Laser Cutting Machinery |
| Place Of Original: | China | ||
| High Light: | t shirt screen printing machine,garment printing machine |
||
Feathers of digital T shirt printer
| Items | Technical Parameters | ||
| Model | CSR2200(R) | ||
| Print head | Print head | Ricoh GH2220 head | |
| QTY | 8 | ||
| Ink | Color | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | |
| Ink type | Import pigment ink, good fastness,bright color | ||
| Ink supply | Negative pressure supply ink | ||
| Speed | Production | A3 size 4pass | Dark fabric 1min14s |
| Light fabric 58s | |||
| precision | A3 size 6pass | Dark fabric 1min52s | |
| Light fabric 1min27s | |||
| Tray | Standard configulation | Optional configulation | |
| Tray size | 380*480mm | 600*1200mm | |
| Tray Numbers | 3 | 1 | |
| Interface | USB | ||
| Computer system | CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10 | ||
| Working environment | temperature:20℃-30℃, humidity:55％-70％ | ||
| Power supply | 210-230VAC 50/60 HZ 16A | ||
| Software | Rip software | ||
| Machine Dimension | 2065*1705*1240mm | ||
| Machine Weight | 260kg | ||

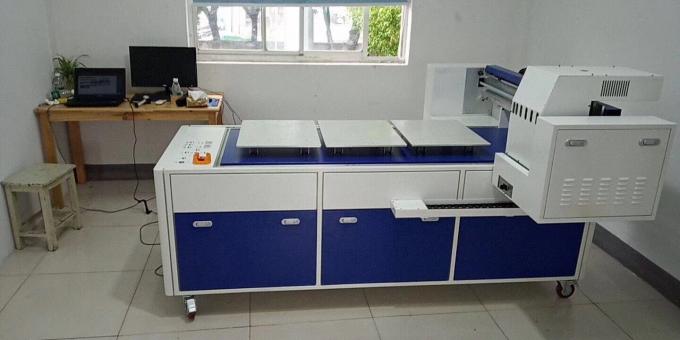

T SHIRT PRINTER IMAGE
print media width optional:
Adapt to different areas of fashion and textile printing width of requirements.
Constant Tension Feeding System:
Can transfer the cloth without tension, for Elastic cloth and non-elasticity cloth.
Original automatic wiping system, not to hurt the nozzle
Conduction band with automatic cleaning and drying system
To ensure conduction band clean and dry when printer continuously works.
Conduction band correction system
Automatic constant tension unwinding and winding systems
Drying system
Multiple wave infrared heaters, instant drying cloth, using print and drying, the linkage control mode, highly efficient and stable, easy to operate, optional independent drying system
T-SHIRT PRINTING SAMPLE IMAGE

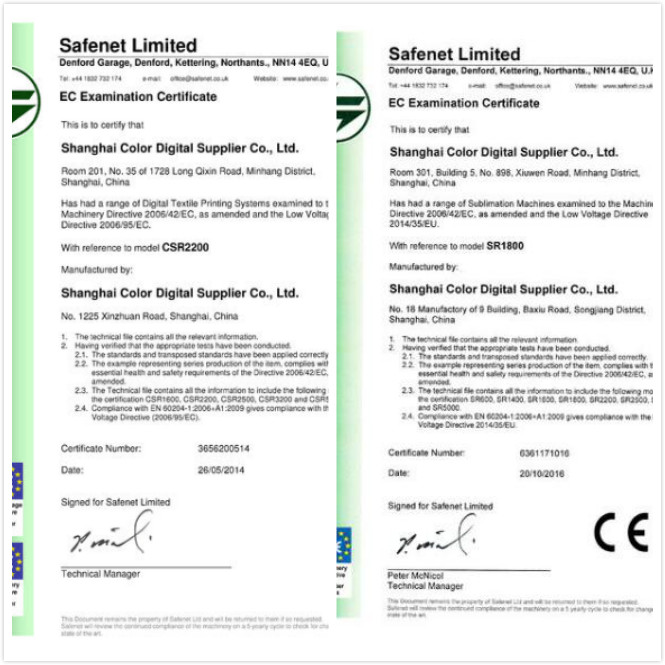

Factory Shipping and CE Approved
Shanghai Color Digital Supplier has been established 2001, it's advanced professional digital printing equipment & relevant materials general supplier. From 2004 we paid most costs and energy to R &D Sublimation system and relevant equipment and consumables.
Now we have been launched SR series product successfully. Sublimation system sometimes we like called heat transfer system, now our produces have been used most field such as advertisement printing textile digital printing , carpet digital printing, windows curtain digital printing and interior decoration printing and Flax printing widely.
SR series products quality surpassed well beyond the limits of similar products quality from another factory of the world. And now we have been developed Europe, USA markets successfully.
1)Customized Service:
We Can Provide Customized Production and Packing for You!
2)Training Service:
We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
3)Guarantee Service:
We Provide one year Warranty for All Industry Machine Models!
4)Solution Service:
The Most Important We Have Digital Printing Solution Ability!
We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company!
