Digital Sublimation Ink Curtain Epson Head Printer

Digital Sublimation Ink Curtain Epson Head Printer

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Heater Power: 6kw
    Automatic Grade: Automatic Voltage: 110V/220V
    Suitable Fabric Type: Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
    Color Type: CMYK Ink: Sublimation Ink, Pigment Ink
    High Light:

    Curtain Epson Head Printer


    Sublimation Ink Epson Head Printer


    Fabric Epson Head Printer

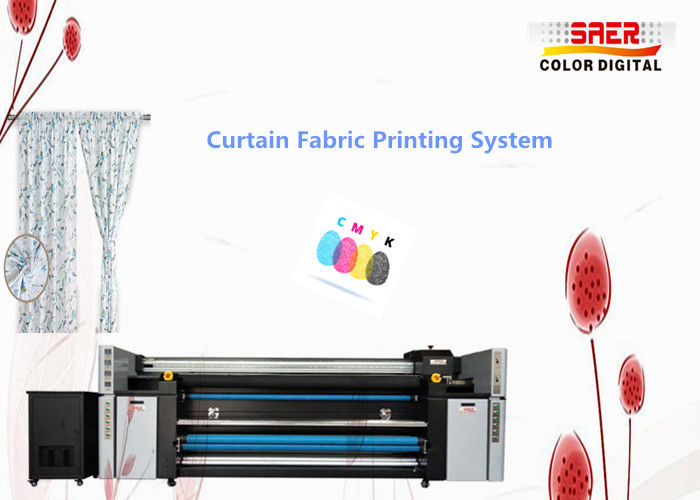

    Product name:  Digital Epson Head Printer / Curtain Fabric Printing System with high resolution low price




    Printing Speed:






    Printing resolution and speed


    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h
    720*1220dpi(4 pass) 45m2/h
    720*1800dpi(6 pass) 35m2/h







    Print head:


    Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.


    Guid Rail:


    Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .


    X axis and Yaxis:


    X axis and Y axis are using AC servo motors.







    Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson high DPI head
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 3300mm
    Max printing width 320000mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)







    1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    2. The unique print platform design to make the cloth always smooth in the process of printing.

    3. Unique filtering lampblack system, make the picture very clean.

    4. Taking up and feeding roller are inflatable roller.

    5. Taking up and feeding fabric are smoothly




    Competitive Advantage:



    NEW technology on Epson high resolution head, less ink consumption

    High Resolution up to 1440dpi

    High Printing speed up to 32sqm/h

    High working stability, industrial performance


    High Productivity

    Long Using Life

    High Yield

    Support three Epson print head

    Perfect Color Presentation




    Application industry:



    1), personality print: such as shops, cell phone decoration shop, personality gift shop.

    2), advertising industry: indoor and outdoor advertising.

    3), products proofing: all kinds of traditional printing sample production.

    4), studio: digital image production.

    5), clothing industry: sample print or character pattern of color printing.
