Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai, China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR2200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 10 work days after get the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Machine Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Printing Solution: | 1440dpi | Automatic Grade: | Automatic |
| Voltage: | 110V/220V | Place Of Origin: | Shanghai,China |
| Ink Type: | Sublimation Ink, Pigment Ink | Print Type: | Inkjet Digital Printing |
| Color Mode: | Dual CMYK | Material: | Polyester & Cotton |
| High Light: | Digital Umbrella Fabric Printing System,Sublimation Fabric Printing System,1440dpi Digital Textile Printing Machine |
||

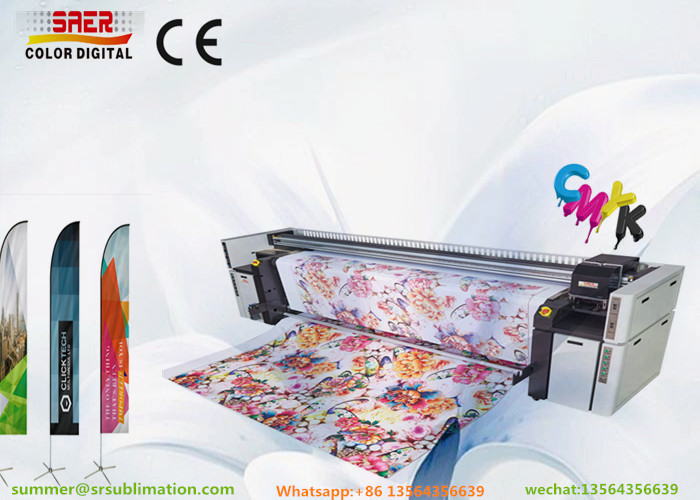

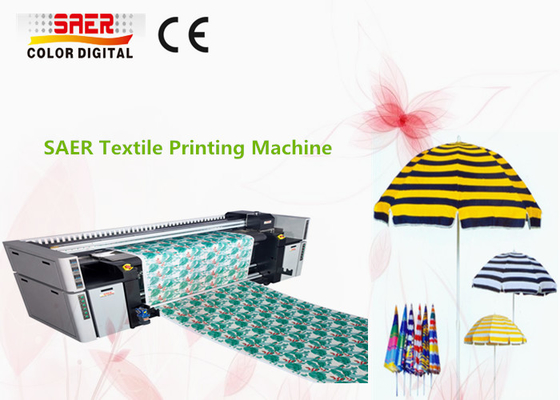

Product name: Digital umbrella fabric printing system / Textile printing machine
Quick Details: Our CSR2200 includes one printer, one heater (printer and heater are whole one set), one filter
Printing Speed:
|
rinting resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Parameters:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Automatic feeding and collecting structure:
1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly
4,Keep the fabric good air permeability after sublimation
5,Printing groove designed specially for fabric printing to collect waste ink and keep
fabric clean.
6,Patented ink tanks keep ink supply constantly.
Description:
1．Three pieces Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
Service:
1)Customized Service:We Can Provide Customized Production and Packing for You!
2)Print Service:
We Also Provide FREE Printing Samples for You!
3)Training Service:
We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
4)Guarantee Service:
We Provide Lifetime Warranty for All MT Industry Machine Models!
5)Solution Service:
The Most Important We Have Digital Printing Solution Ability
We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
Application:
