Direct Fabric Dye Sublimation Textile Printer With Heater

Direct Fabric Dye Sublimation Textile Printer With Heater

    • Direct Fabric Dye Sublimation Textile Printer With Heater
    • Direct Fabric Dye Sublimation Textile Printer With Heater
  • Direct Fabric Dye Sublimation Textile Printer With Heater

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm)
    Delivery Time: About 10 working days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Machine Condition: New Automatic Grade: Automatic
    Condition: New Color & Page: Multicolor(Dual CMYK)
    Working Width: 3.2m Working Type: Roll To Roll
    Printing Material: Polyester, Cotton Printhead: 3 Pcs Epson High Precision Head
    Resolution: 1800DPI Ink Type: Sublimation Ink
    Product Name: Textile Sublimation Printer,fabric Printing Machine Color: Dual CMYK
    High Light:

    Fabric Dye Sublimation Textile Printer

    ,

    3.2m Sublimation Textile Printer

    ,

    1800DPI Sublimation Textile Printer

    Product name :Direct fabric dye sublimation textile printer with heater



    Machine working speed:











    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h





    Advantage:


    ·Far Infrared Blackbody Tube Radiation
    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable

    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    8· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.

    14.With CE Certificate Provide



    Machine specification:



    Product parameter
    Model CSR3200
    Print head Piezo technology, Epson print head
    Ink Sublimation ink,pigment ink and reactive ink
    Color model Dual CKMY
    Nozzles (400 nozzles x 8 lines ) x3heads
    Printer head higher 15mm / 6mm ( Adjustable )
    Ink supply model Continuous ink supply
    Max materials width 3300mm
    Max printing width 3200mm (can custom the size )
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 3.0
    RAM128 128M
    Printer power AC220-240V./AC220-240Adaptive 50/60Hz
    Sublimation machine AC220-240V. 16A. 50/60Hz
    Power consumption Direct dye sublimation heater 3500W
    Printer 5500w
    Temperature 20-32°C
    Humidity 40-60% Non-condensing
    Weight Net Weight : 800kg Gross Weight : 920kg




    Digital Textile Printer Application:

    Our sublimation machine is CE certificated. And our sublimation  printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

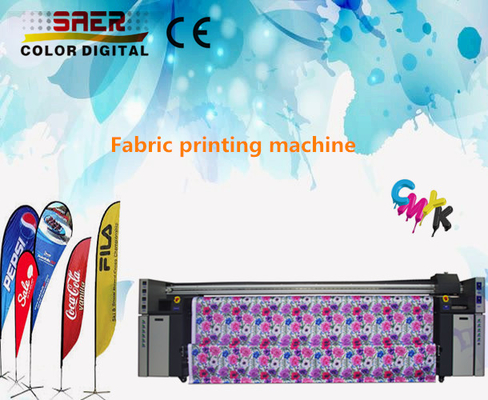

    Direct Fabric Dye Sublimation Textile Printer With Heater 0



    Machine Details Picture:

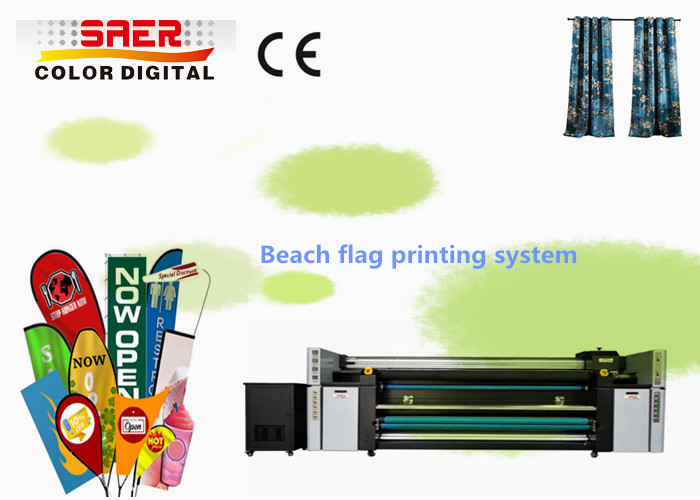

    Direct Fabric Dye Sublimation Textile Printer With Heater 1

    Direct Fabric Dye Sublimation Textile Printer With Heater 2

    Direct Fabric Dye Sublimation Textile Printer With Heater 3

     After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courie
