Product Details:
|
| Condition: | New | Voltage: | 210-230VAC 50/60 HZ 16A |
|---|---|---|---|
| Automatic Grade: | Automatic,Manual | Plate Type: | Flatbed Printer, Digital Printing, Screen Printer |
| Dimensions(l*w*h): | 2065*1705*1240mm | Ink Type: | Import Pigment Ink |
| Weight: | 260kg | Color: | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Print Head: | With 8 Ricoh GH2220 Head |
| Highlight: | garment printing machine,direct to garment printer |
||

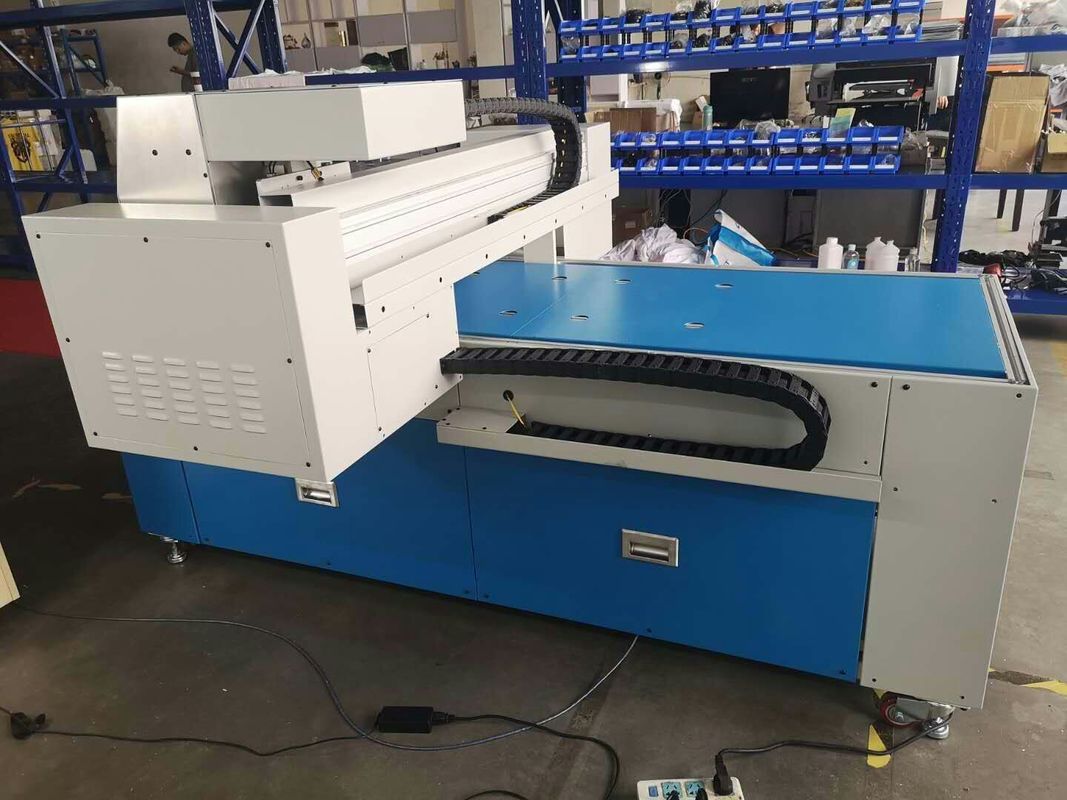

Direct Print Digital Garment Printer , Tee Shirt Printing Machine With 8 Ricoh GH2220 Printheads
| Items | Technical Parameters | ||
| Model | FBILL S3 | ||
| Print head | Print head | Ricoh GH2220 head | |
| QTY | 8 | ||
| Ink | Color | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | |
| Ink type | Import pigment ink, good fastness,bright color | ||
| Ink supply | Negative pressure supply ink | ||
| Speed | Production | A3 size 4pass | Dark fabric 1min14s |
| Light fabric 58s | |||
| precision | A3 size 6pass | Dark fabric 1min52s | |
| Light fabric 1min27s | |||

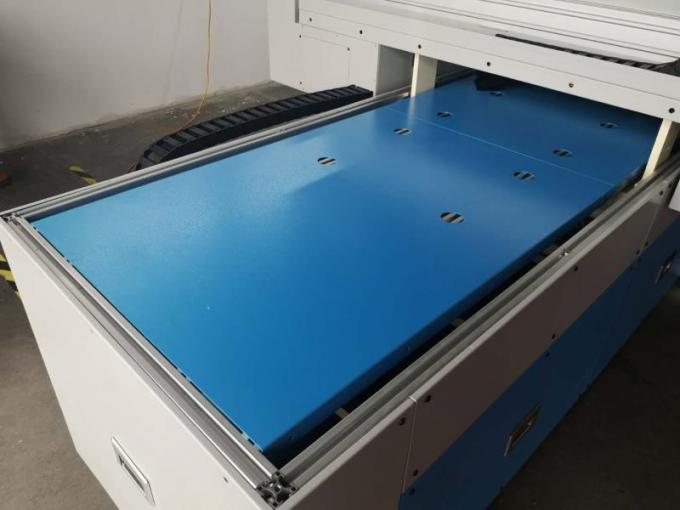

| Tray | Standard configulation | Optional configulation | |
| Tray size | 380*480mm | 600*1200mm | |
| Tray Numbers | 3 | 1 | |
| Interface | USB | ||
| Computer system | CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10 | ||
| Working environment | temperature:20℃-30℃, humidity:55％-7 | ||
