Directly Roll To Roll Dye Sublimation Machine , 220V 50HZ Dye Sublimation Heater

Directly Roll To Roll Dye Sublimation Machine , 220V 50HZ Dye Sublimation Heater

    • Directly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation Heater
    • Directly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation Heater
  • Directly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation Heater

    Product Details:

    Place of Origin: Shanghai ,China(Mainland)
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 3000 - 4000 USD Per Set
    Packaging Details: None fumiation wooden package(Package size:2560*870*1330mm)
    Delivery Time: Within 5 working days after receive your payment
    Payment Terms: T/T
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Consist Of: One 1.6m Sublimation Dryer And One Filter Fan Voltage: 220V,50HZ
    Working Width: 1600mm Material: Printed Fabric(cotton,polyester Etc)
    Work Type: Directly Out Or Roll To Roll Automatic Grade: Automatic
    Work Temperature: 100-250℃ Work Method: Seperate
    Work Speed: 0-100m Match With: Any Piezo Printers

    Automatic Dye Sublimation Heater,Directly Roll To Roll Dryer Machine


    Two Parts included:


    1. Sublimation Dryer unit,high temperature(up to 250℃) to dry the wet ink,fix the color of fabric after printer printed.
    2.  Filter Fan to collect wasted gas,protect the environment.                                                         This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.


    Product Description:



    Product Model SR 1600

    Power

    3500W

    Working Width

    1600MM

    Blackbody Tube Working Model

    Far Infrared

    Heat Pipe Dimension

    2200MM

    Working Temperture

    100 to 250 °C

    Tension

    0 to 1.2Kg

    Working Voltage
    Take Up working Method
    Take Up media diameter(roll to roll)

    220~240V 50HZ
    Directly out or Roll to Roll.
    300mm

    Weight

    294kg

    Certification

    CE Certificated


    Filter Specification:


    Power 360W
    Working Voltage 220~240V 50HZ
    Package Size 620X565X1100mm
    Weight 60 Kg
    Input Air temperature >200 °C
    Out put Air temperature <25 °C
    Filter Medium Active Carbon
    Certification CE Certificated



    Product Advantages:

    1>. Seperately operate, improve the working speed.
    Only need to put the whole printed roll on this dryer,save time.
    2>. Far infrared blacktube heating,can work at least 10000 hours.
    3>.Can work 24 hours without interception.
    4>. Equipped with filter fan, can achieve the effect of environmental and no smoke out

    1. Many size to choose,from 1.4m to 5m
    2. High Speed,can reach 100m per hour
    3. water based ink,no pollution
    4. Uniform Speed,make the fabric picture consonant


    Cooperate with all kinds of print apparatus both gush and print can be ready in one time. The convenient operation can save time in the high-efficiently. The new roller laminating colour technology avoids second pollution when transfer. The stable of synchronization counterweight system makes the colour more briliant after the colour reduction process.


    Application :

    To fix the color of printed fabric through high temperature,the printed fabric can use of
    Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc

    Directly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation Heater

    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manual, and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier

    How To Order:


    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery

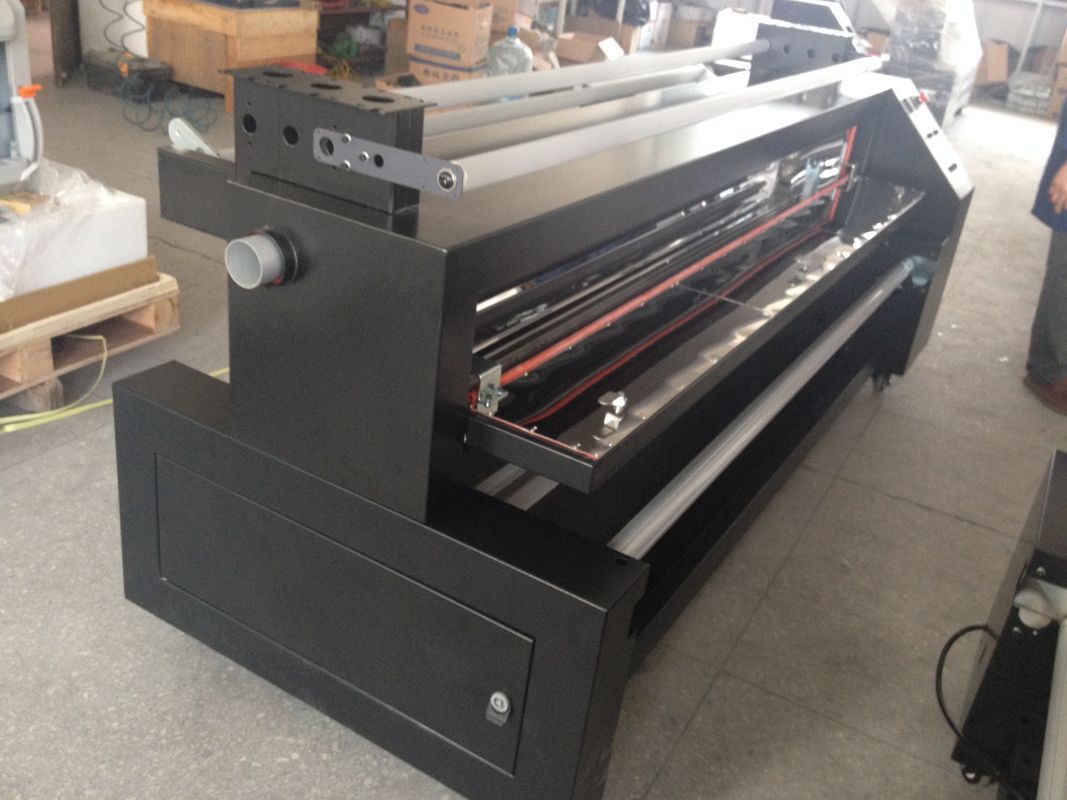

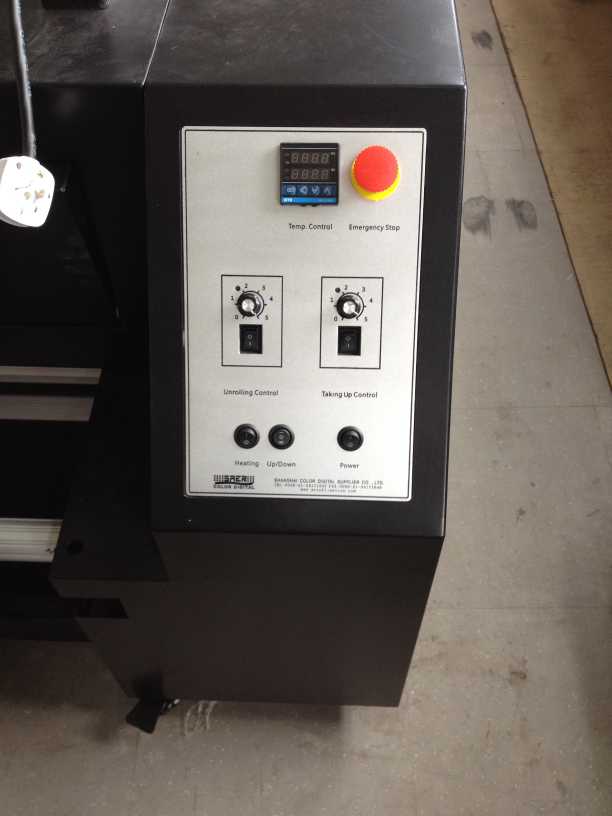

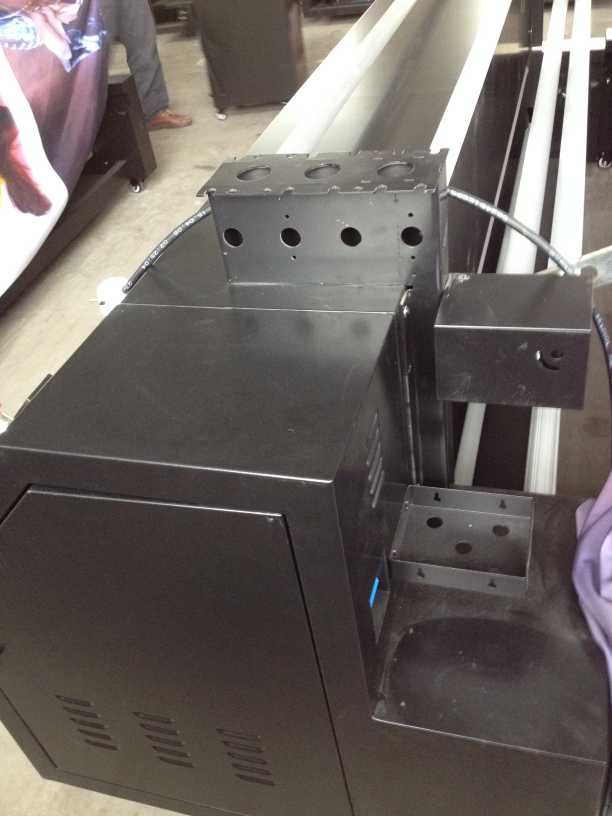

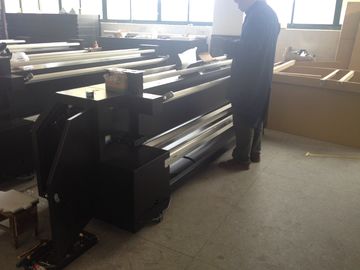

    Machine Detail Pictures:


    Directly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation HeaterDirectly Roll To Roll Dye Sublimation Machine ,  220V 50HZ Dye Sublimation Heater
