Double Epson Dx7 Printhead Printer Noiseless Textile Printing Machinery

Double Epson Dx7 Printhead Printer Noiseless Textile Printing Machinery

Double Epson Dx7 Printhead Printer Noiseless Textile Printing Machinery

Product Details:

Place of Origin: Shanghai Of China
Brand Name: SAER
Certification: CE
Model Number: CSR 2200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 22,000 USD Per Set
Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
Delivery Time: 10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Digital Fabric Printing Machine Max Resolution: 1400DPI
Type: Inkjet Printer Condition: New
Print Head: Epson DX5*2 Color Model: Dual CMYK
Ink Supply Model: Continuous Ink Supply Max Materials Width: 2300mm
Rip Software: Maintop 5.3 Rip Software Compatible OS: Win XP&Win 7
Net Weight: 646KG Wet Weight: 886KG
Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
Using Field: Indoor & Outdoor Print Speed: 22 Sqm / H In 4 Pass
Highlight:

epson color printer

,

epson sublimation printer





Product name:Double Epson Dx7 Printhead Printer Noiseless Textile Printing Machinery



Specifications:







Product parameter

Model

CSR2200

Print head

Piezo technology, Epson DX5 printer head

Ink

Sublimation ink,Reactive Ink,Pigment Ink

Color model

Dual CMYK

Nozzles

(180 nozzles x 8 lines ) x2 heads

Printer head higher

15mm / 6mm ( Adjustable )

Ink supply model

Continuous ink supply

Max materials width

2300mm

Max printing width

2200mm







Printing resolution and speed

Resolution                       speed

720x360dpi (2pass)               40m²/h

360x1080dpi(3pass)               32m²/h

720x720dpi(4pass)                22m²/h

720x1080dpi(6pass)               18 m²/h

720x1440dpi(8pass)               12 m²/h

Roll diameter

3 Inch

Maximum weight for roll material

100kg

Interface

USB 2.0

RAM

1.2M

Printer power

AC220-240V./AC220-240Adaptive   50/60Hz

Sublimation machine

AC220-240V. 16A. 50/60Hz

Power consumption

Direct dye sublimation heater 3500W

Printer                               5500w

Temperature

20-32°C

Humidity

40-60% Non-condensing

Weight

Net Weight : 764kg                  Gross Weight : 886kg



Description:



1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate

9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



Advantages:

  • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
  • The printed image color is bright and vivid with nice color gamut.
  •  Rapid speed and various printer to choose
  •  It  is simple and leave out heat transfer process, one person can operates with high efficency and short time.
  •  Low cost and no need of any kind transfer paper, liner breaking the highest costs performance



Machine Details:

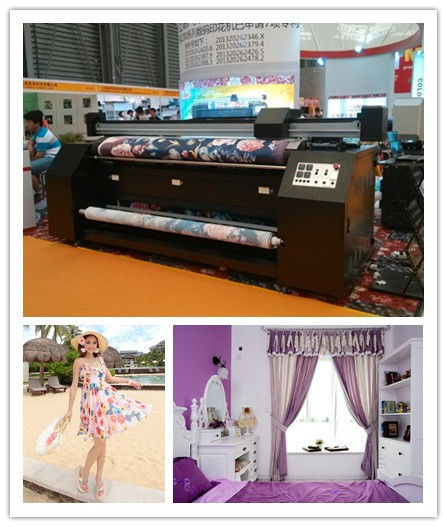

Double Epson Dx7 Printhead Printer Noiseless Textile Printing Machinery 0

Application:



Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

Outside:Advertising materials to make flag,banner,act fast show,feather flag and so on.



After Sales Service:



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manul,and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
