Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm) |
| Delivery Time: | About 10 working days after get the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Machine Working Size: | 3.2m | Color & Page: | Multicolor(Dual CMYK) |
|---|---|---|---|
| Working Type: | Roll To Roll | Printing Material: | Polyester, Cotton |
| Printhead: | 4 Pcs Epson High Precision Head | Resolution: | 1800DPI |
| Ink Type: | Sublimation Ink | Product Name: | Textile Sublimation Printer,fabric Printing Machine |
| High Light: | Digital Flag Fabric Textile Printing Machine,1800DPI Dye Textile Printing Machine,Dual CMYK Digital Textile Printing Machine |
||
Product name : Digital Flag Fabric / Bed Sheets Dye Textile Printing Machine
Machine working speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1080dpi(3 pass) 80m2/h | |
| 720*1200dpi(4 pass) 65m2/h | |
| 720*1800dpi(6 pass) 45m2/h |
Machine specification:
| Product parameter | |
| Model | CSR3200 |
| Print head | Piezo technology, Epson print head |
| Ink | Sublimation ink,pigment ink and reactive ink |
| Color model | Dual CKMY |
| Nozzles | (400 nozzles x 8 lines ) x4heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 3200mm (can custom the size ) |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 3.0 |
| RAM128 | 128M |
| Printer power | AC220-240V./AC220-240Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500W |
| Printer 5500w | |
| Temperature | 20-32°C |
| Humidity | 40-60% Non-condensing |
| Weight | Net Weight : 800kg Gross Weight : 920kg |
Advantage:
·Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
Digital Textile Printer Application:
Our machine is CE certificated. What's more , our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

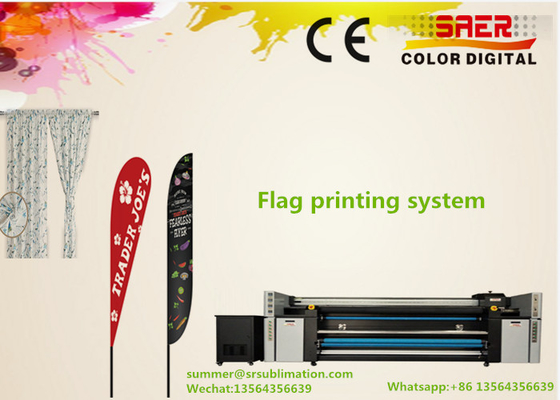

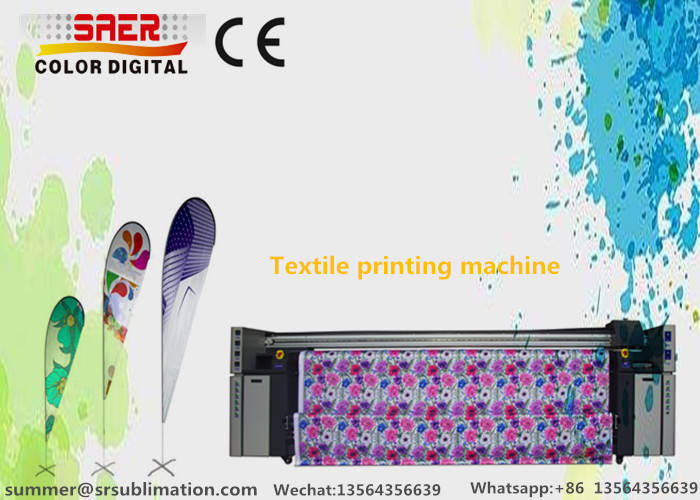

Machine Details Pictures:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Usage:
