Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai, China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR2200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets per month |
| Print Head: | 4 Pieces Epson Head | Ink Type: | Pigment Ink , Sublimation Ink |
|---|---|---|---|
| Software: | Onyx | Heater Power: | 3.5kw |
| Automatic Grade: | Automatic | Type: | Digital Printer |
| Warranty: | 1 Year | Material: | Cotton&polyester |
| High Light: | Dye sublimation printer,Dye Sublimation Digital Printing Machine,High DPI Head Dye Sublimation Printer |
||
Product name:

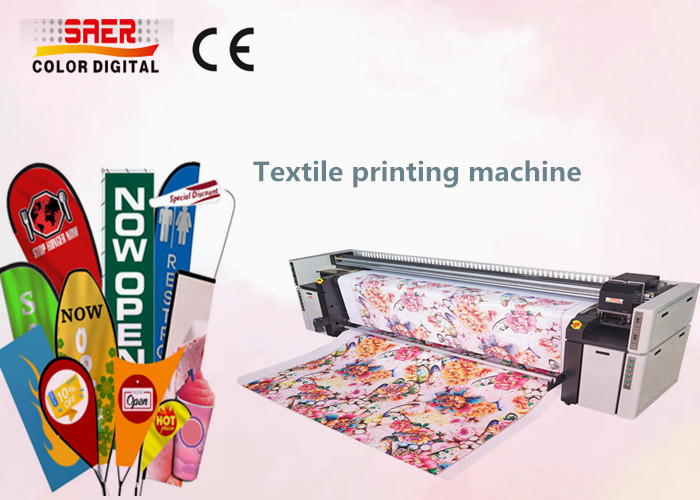

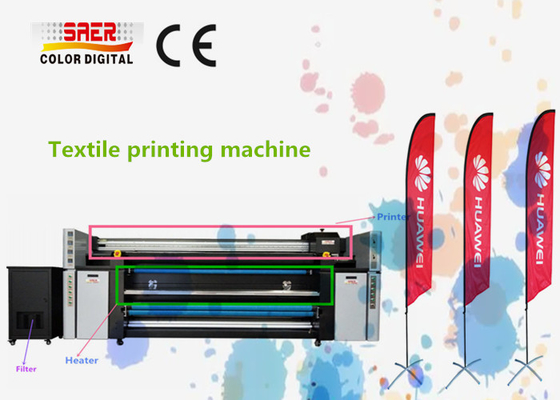

Dye sublimation printer digital printing machine with high DPI print head
Machine working Speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 80m2/h | |
| 720*1220dpi(4 pass) 65m2/h | |
| 720*1800dpi(8 pass) 45m2/h |
Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 4 pieces Epson high resolution head |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*4head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Below are our services terms:
1. Every printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.
2. Our engineer full of experience, and they are English speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.
3. You are always welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of printers.
4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charges.
Description:
1．4 pieces Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
