Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | MSR 1800 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 25,000-27,800USD / Set |
| Packaging Details: | Non fumigation wooden package |
| Delivery Time: | 10 working days after receive the payment |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
| Machine Type: | Digital Inkjet Printer | Product Name: | Mimaki Textile Printer |
|---|---|---|---|
| Usage: | Direct Textile Printing | Max Materials Width: | 1800mm |
| Max Resolution: | 1440dpi | Print Head: | Epson DX7 * 2 |
| Plate Type: | Roll To Roll Printing Machine | Color Mode: | Dual CMYK |
| Material: | Polyester,Cotton,Silk,linen And Wool Fabric | Ink: | Sublimation,Reactive And Pigment Ink |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | ||
| Highlight: | mimaki sublimation printer,mimaki fabric printer |
||

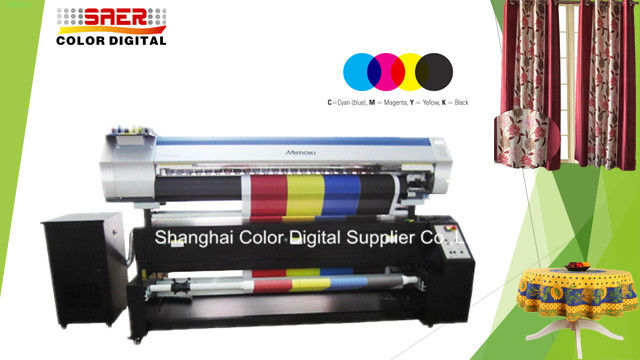

Epson DX7 * 2 Mimaki Textile Printer / Textile Printing Machine For Roll Up Fabric
Quick Detail:

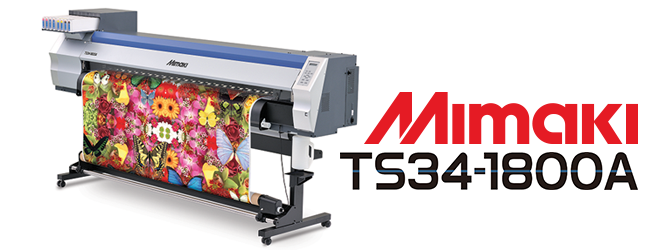

Mimaki Textile Printer Include Mimaki TS34-1800A Printer and SR1800 Heater with Filter Fan
Mainly Use:
Direct Print on Textile Material,for home decoration,flag making and clothes.
Product Features:
| Brand | SAER | ||
|
Model |
MSR1800 |
||
|
Print head |
Piezo technology,Epson DX7 printer head*2 Pcs |
||
|
Ink |
Sublimation ink,Reactive Ink,Pigment Ink |
||
|
Color mode |
C,M,Y,K |
||
|
Nozzles |
1440 nozzles(180 nozzles * 8 lines) |
||
|
Print head higher |
2/3mm,3/4mm,4/5mm(Optional) |
||
|
Max materials width |
1900mm |
||
|
Max printing width |
1800mm |
||
|
Media |
Size |
210mm~1910mm |
|
|
Thickness |
1.0mm |
||
|
Roll inside diameter |
2 Inch/3 Inch
|
||
|
Roll owter diameter |
180mm |
||
| Maximum weight for roll material | 25Kg | ||
| Rip Software | Maintop or Onyx optional | ||
| Interface | USB2.0 | ||
| Printer power | AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz | ||
| Sublimation machine | AC220-240V.16A.50/60Hz±1Hz | ||
| Power consumtion | Direct dye sublimation heater 3800W | ||
| Printer 3600W | |||
| Environment | Temperature:20-35°C,Humidity:35-65% | ||
| Weight | 600KG |
Printing Speed:
| Printing resolution and speed | Resolution(dpi) | speed | |
| 360x360(1pass) | 91m2/h | ||
| 540x720(4pass) | 32m2/h | ||
| 540x1080(6pass) | 22.2m2/h | ||
| 720x1440(8pass) | 13.5m2/h | ||
Features:
Printer:
1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. Refillable ink cartridge reduces production cost.

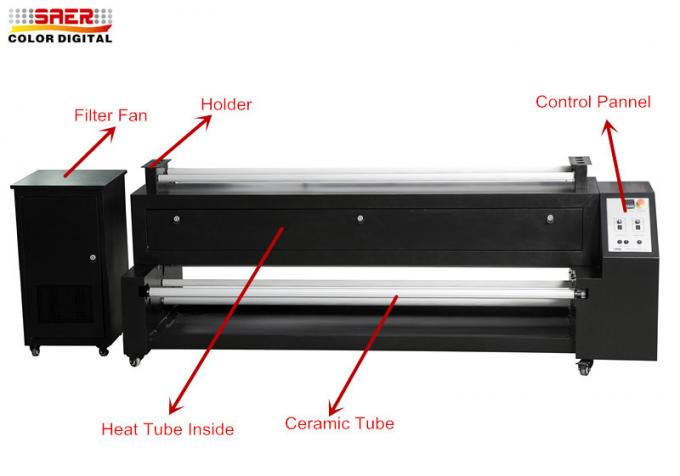

Heater:
1. Ceramic heating tube
Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Advantages:
SAER textile printer is under independent research and development. The price is 1/3 of that of traditional textile printers. It's of the world's leading piezoelectric sublimation technology.
1. Wider application field
After the modify of pannel board,this solution can convert the Mimaki printer to print images on Fabric directly.improved the application of heat transfer paper printing and wall paper printing.
2. Tension structures keep the printing material flat
Equipped with tension structure on front side and back side, as to keep the printing media flat. Even the artificial loaded media is not in the perfect straight status, this system can automatically correct the skewing in printing process.
3. Efficient heater
work together with the sublimation heater,with high temperature,Textile Printing Ink will be dried instantly before be collected by Automatic Take Up Roller.it can fade the color of printed image,the complated fabric can use to make flag ,banner and for home decoration directly.
4. Printing quality be ensured
The Media Collecting and Feeding System are synchronized so that printing quality be ensured.solve the stepping problem.
5. Bulk ink system
With this CISS, user can not only have similar image quality, but also avoid to use the expensive original inks.
6. Easy installation process
Even users with no experience can operate it within 2 hours.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
Produtc Service :
1. This machine has One year warranty .
2. We are Support Oversea technical service and with all life techincal support.
Printed Media:
