Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai,China |
| Brand Name: | SARE |
| Certification: | CE certification |
| Model Number: | SRT600-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non Fumigation Wooden Box |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50 sets /Month |
| Plate Type: | Sublimation Heat Transfer Machine | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Industrial: | Garment Shops,Printing Shops | Power Supply: | VAC 50~60 Hz ,380V |
| Speed: | 200M/H (Manual Adjust ) | Drum Diameter: | 600mm |
| Temperature Control: | 0-399 | Heating Type: | Oil Heating |
| Weight: | 1000kg | Number Of Heating Tube: | 24 Pcs |
| High Light: | fabric calender machine,roll to roll heat transfer machine |
||

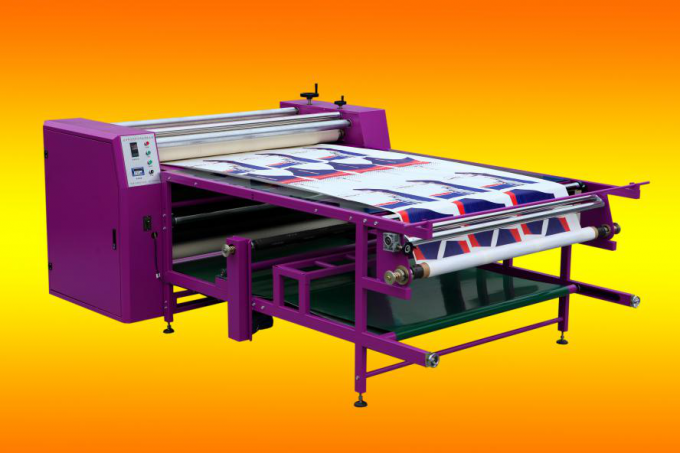

Product name : 1Fabric textile calender heating pipe roll heat press roller sublimation heat transfer machine
Machine Features:
1. High-end composite steel roller with Teflon surface coated,Uniform drun temperature and lower energy consumption:
2. Equipped with adjustable pneumatic pressure system, adjust the pressure according to different transfer materials, the transfer speed is faster, the color is more vivid.
3. Self-devloped equipment control system,using high-end electrical components, high-precision parts, equioment transfer more stable.
4. The blanket is seperated autonmatically and the high-precision silicone pressure balance bar is used to adjust the pressure between the blanket and the roller to effectively reduce the tension of the blanket and extend the service life of the blanket.
5. The equipment operation is more convenient , labor saving, oil drum heating, 100% full heating oil.
Machine Parameters:
| Model | SRT600-1600 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |

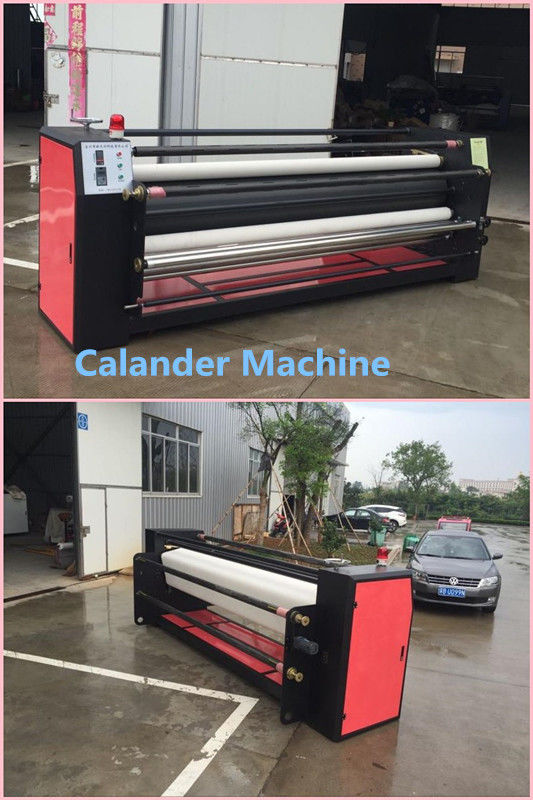

Machine details :
Appliciton:
It is suitable for sublimation transfer large banners , flags,T-shirt,non-woven fabrics, apparel fabrics, towels, blankets,
mouse pads and other products in the piece, especially the continuous transfer of the cloth.Capable of continuous printing speed,
to meet the requirements of large volume printing the customer.
Warranty & Services:
(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.
