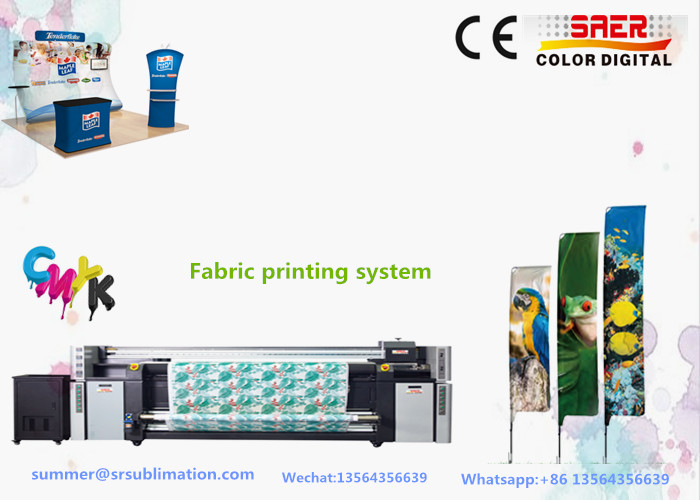

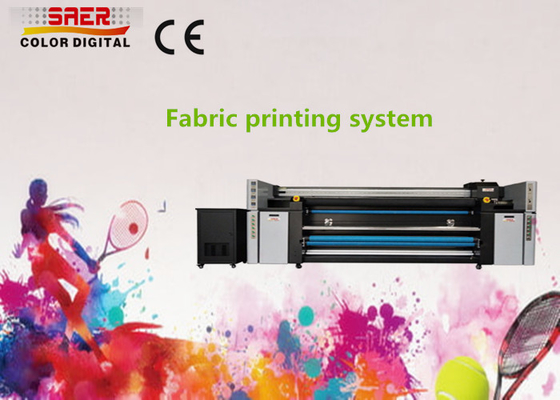

Feather flag printing machine / Textile printing system

Feather flag printing machine / Textile printing system

    • Feather flag printing machine / Textile printing system
    • Feather flag printing machine / Textile printing system
  • Feather flag printing machine / Textile printing system

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non Fumigation Wooden Package(4460*1160*1730mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T or Western Union
    Supply Ability: 20 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Multicolor Digital Fabric Printing Machine Software: ONYX Software
    Color Mode: Dual CMYK Voltage: 380V
    Print Head: Epson High DIP Head *3 Rip Software: Indoor & Outdoor Advertising Field
    Compatible OS: Windows 7& Windows 10 Include: One 3.2m All-in-one Printing System And One Filter
    Ink: Sublimation ,Pigment Ink Material: Polyster,Cotton,Silk And Wool Fabric
    Gross Power: 6500W
    High Light:

    Banner Inkjet Fabric Printer

    ,

    Beach Fabric Printer Machine 380V

    ,

    CMYK Banner Printing Machine

    Product name: Feather flag printing machine / Textile printing system




    Product Feature:



    1. Direct Print image into fabric

    2. This machine with print and heat in one machine Save price and save place.

    3. It is adopt EPSON printhead with high precision.

    4. This machine max print width 3.2m



     Applications:

    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
    Outside: Advertising materials to make flag,roll up banner, act fast show and so on.

    Specifications:



    Model

    CSR3200

    Print head

    Piezo technology, Epson print head

    Ink

    Sublimation Ink,Reactive ink and Pigment Ink

    Color Mode

    Dual CMYK

    Nozzles

    (180 nozzles*8 lines)*3 heads

    Print Head Height

    1.5mm/6mm(adjustable)

    Ink Supply Mode

    Continuous Ink Supply

    Max Material Width

    3300mm



    Max Printing Width

    3200mm

    Roll Owter Diameter

    3 Inch

    Max Weight For Roll Material

    100KG

    Interface

    USB3.0

    RAM

    128M

    Printer Power

    380V

    Power

    Direct Dye Sublimation Heater 3500W
    Printer                       2000W

    Environment

    temperature    20-32 degree

    Weight

    1120KG





    Machine working speed:











    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h
    720*1220dpi(4 pass) 45m2/h
    720*1800dpi(6 pass) 35m2/h





    Automatic feeding and collecting structure:




    1,Intelligent infrared heater and fan drying system;
    2,The machine through different quality tests is stable and competent enough for mass production requirement.
    3,No Pinch roller, let the fabric no wrinkle and print smoothly

    4,Keep the fabric good air permeability after sublimation

    5,Printing groove designed specially for fabric printing to collect waste ink and keep

    fabric clean.

    6,Patented ink tanks keep ink supply constantly.







    Competitive Advantage:



    • Lower investment cost,3.2 meters width machine more usability
    • One time molding mechanism design, reflect the stability and reliable of textile printer

    • High speed
    • Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
    • Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.



    Rip Software:


    1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.

    2.Colorful color replacement function can easily reproduce the required color.




    Feather flag printing machine / Textile printing system 0




    Our Support:



    (1) 12-month warranty

    (2) Free techinical traning

    (3) On-site service

    (4) Sample free

    (5) Lifetime maintenace


    After
    Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manual, and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
