Fixation Unit Heat Sublimation Machine 3.2m Heater Printer

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer

Product Details:

Place of Origin: Shanghai of China
Brand Name: SAER
Certification: CE Approval
Model Number: SR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: None fumiation wooden package(Package Size:4350mm*1310mm*1230mm)
Delivery Time: Within 5 working days after receive your payment
Payment Terms: Western Union, T/T
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Color Mode: Multicolor Ink: Sublimation,Reactive & Pigment Ink
Include: One 3.2 M Dye Sublimation Heater And One Filter Fan Voltage: 220-240V,50HZ
Net Weight: 625kg Gross Weight: 1025kg
United Printer: Mutoh,Mimaki,Roland And Any Other Piezo Printer Working Method: Directly Out Or Roll To Roll
Condition: New
High Light:

Fixation Unit Heat Sublimation Machine

,

3.2m Heater Printer

,

Dye Heat Sublimation Machine



Fixation Unit Heat Sublimation Machine 3.2m Heater Printer Separate Roller to Roller Dryer





Include:



One direct dye sublimation heater and one active carbon filter



Product Description:



Product Name Direct Dye Sublimation machine
Model SR 3200
Blackbody Tube Working Model Far Infrared
Mainly Use Appear and fix the color
Power 6.5kw(include filter fan)
Maximum Width 3300mm
Heat Tube Dimension 3400mm
Working Temperature Control Room temperature ~250°C
Temperature Control Method PID
Tension Control 3kg(optional counterweight to control tension)
Maximum Speed 0~2800mm/min
Filter Fan Speed 0~300m³/h
Filter Fan Power 400W
Working Voltage 220v 50hz
Machine size 4350mm*1310mm*1230mm(not include filter
Net Weight 625kg(not include filter)
Gross Weight 1025kg(Include filter and package)
Operating mode Instrument control, manual, automatic opera









Product detail picture:

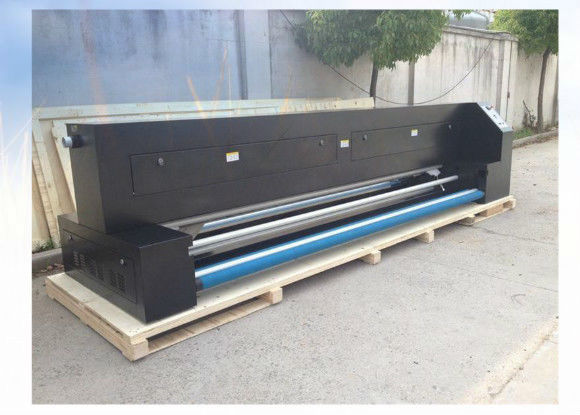

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer 0

Product Feature

1. Far Infrared Blackbody Tube Radiation.
2. Electro thermal Heating.
3. Intelligent PID Temperature Control.
4. Digital Tension Control.
5. Feeding and Taking up Are synchronous.
6. Vacuum Fan Delivery Is Controllable.
7. Quick Tail Gas Treatment.

8. Roll to roll Work Way.

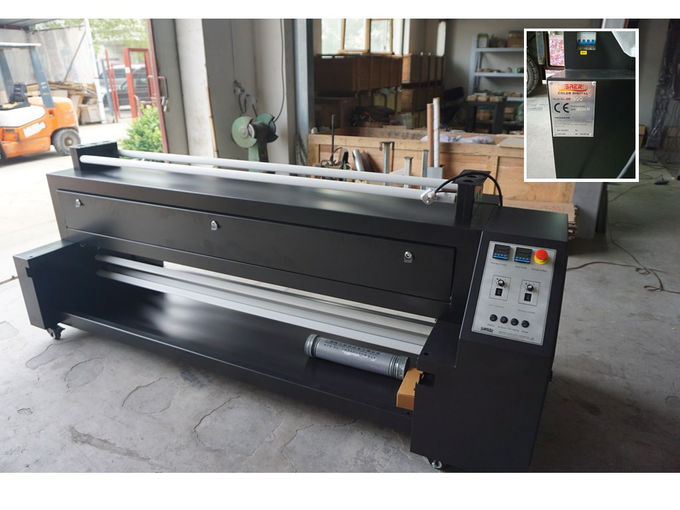

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer 1



Applications:



Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

Outside:Advertising materials to make flag,banner,act fast show and so on.

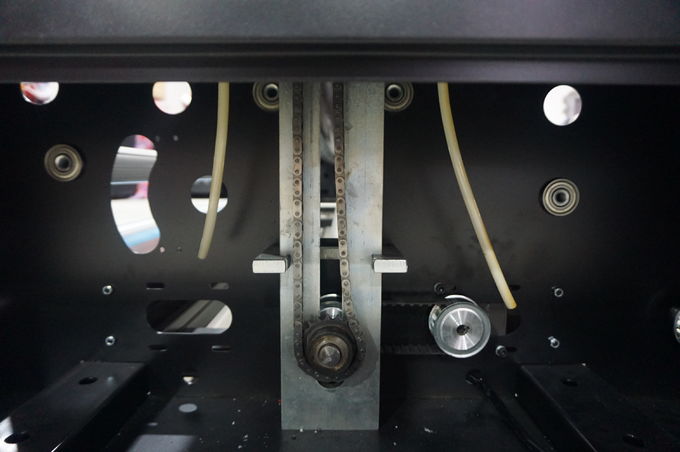

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer 2



Advantage:


1. Exhaust with out any smell, good environment need.
2. Normal temperture for exhaust , no dangerouse for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree
4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases

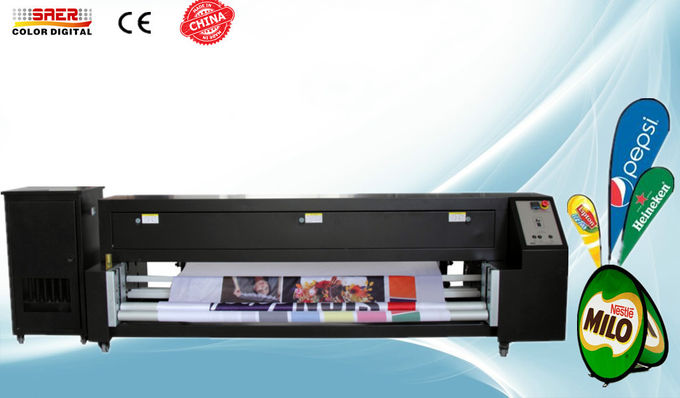

Fixation Unit Heat Sublimation Machine 3.2m Heater Printer 3



Product Service



1. This machine have one year warranty .

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. This machine has technical support in all of life.
