Product Details:
|
| Product Name: | SRT80-100 Calander Heat Press | Usage: | Rotary Heat Press Transfer Machine |
|---|---|---|---|
| Suitable For: | Cloths Printer | Type: | Flatbed Printer |
| Temperature Range: | 0-399 Degree | Voltage: | 380 |
| Roll Diameter: | 800mm | Heating Type: | Oil Heat |
| Automatic Grade: | Automatic | Applicable Industry: | Garment Shops, Printing Shops, Advertising Company |
| Highlight: | Fabric Calender Heat Press Machine,Ribbon Calender Heat Press Machine,Flatbed Heat Press Machine |
||

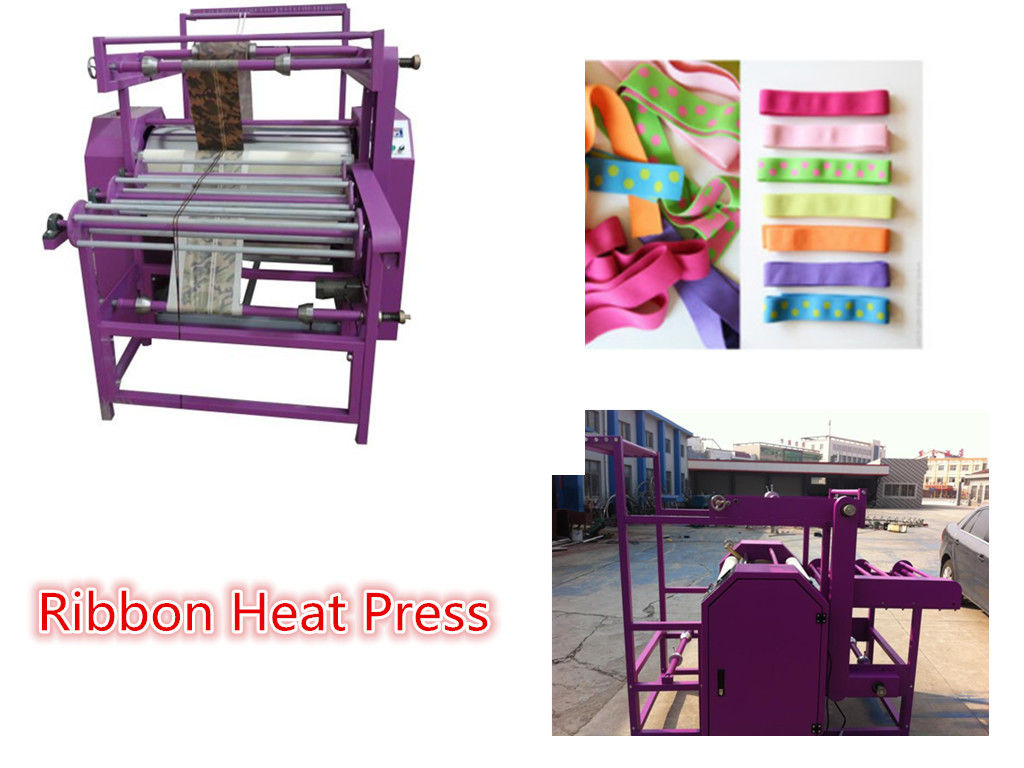

Ribbon Heat Press for All Kind of Fabric Calander Heat Press Machine
Description:
Available for multiple lanes of narrow width ribbons, lanyards, etc.. Self contained oil heating system.
Apply the most advanced control system,rewind & unwind ribbon automatic,Application on Ribbon, Lanyard, Polyester on a roll.
Features:
1.Multifunctional: It can be print all kind of fabric.
2.High performance:Apply the most advanced control system,rewind&unwind ribbon automatic
3.Good printing: Consistent temperature,without any color error even in continuous transfer printing,
Thus to get a clear printing effect.
Specifications:
| Drum Diameter | 80CM(diameter of Roller)*120CM(width) |
| Voltage | 220V/380V |
| Printing Width: | 100CM |
| Power | 30KW |
| Transfer Speed | Digital Paper:6m/min(20ft) Gravure Paper: 9m/min(29ft) |
| Measure of Machine: | 183*133*162CM |
| NOTE: | Available in 16.5″ (42 cm dia.), 24″ (60 cm) or 31.4” (80 cm) oil heated drum Working width available from 1200mm to 3600mm. |
