High Accuracy Digital Textile Printing Machine With Dye Sublimation System

High Accuracy Digital Textile Printing Machine With Dye Sublimation System

    • High Accuracy Digital Textile Printing Machine With Dye Sublimation System
    • High Accuracy Digital Textile Printing Machine With Dye Sublimation System
    • High Accuracy Digital Textile Printing Machine With Dye Sublimation System
  • High Accuracy Digital Textile Printing Machine With Dye Sublimation System

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200KJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package
    Delivery Time: 10 working days after get your payment
    Payment Terms: T/T
    Supply Ability: 50 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Digital Textile Printer Application: Indoor Decoration & Outdoor Advertisement
    Resolution: 600dpi,900dpi,1200dpi,1800dpi Color Mode: Dual KCMY
    Voltage: 380V,50 / 60HZ Print Head Type: Four Industrial Kyocera Print Head
    Rip Software: Onyx Working Type: Computer Directly Control Output
    Combine With: All-in-one Printer And One Filter Fan Ink Supply Mode: 4color Mode:400cc Cartridge*2/color 800cc/color
    Ink Supply Mode: Continous Ink Supply Print Speed: 60 Sqm / Hour In 4 Pass
    High Light:

    cmyk printing machine

    ,

    sublimation printing machine

    High Speed And Precision Industrial Kyocera Print Head Printer




    Contents:



    One 3.2m all-in-one textile printing system(print and heat together)

    One filter fan for pollute waste air



    Usage:



    Directly print on roll textile material,through high temperature of heating,the completed fabric can directly to make every kinds of flags,the fabric can stand sunshine and can wash,no fade.



    Technical Details:



    Product Name Digital Textile Printing Machine
    Model    CSR3200KJ
    Combine With   All-in-one Printing system and one Filter Fan
    Print head Piezo technology,Four KYOCERA print heads
    Ink Sublimation ink,Reactive ink,Pigment ink
    Media Type   Polyester,Cotton,Linen,Silk,Wool etc
    Color mode Dual CMYK
    Nozzles (180nozzles*8lines)*4 heads
    Print head higher Adjustable
    Ink supply mode 4color mode:400cc cartridge*2/color 800cc/color
    Max meterials width 3300mm
    Max printing width 3200mm
    Printing resolution and speed Resolution speed
    600*600dpi 2pass 120㎡/h
    600*600dpi 3pass 60㎡/h
    600*900DPI(3 pass) 75㎡/h
    600*1200dpi 4pass 48㎡/h
    720*1080dpi 6pass 30㎡/h
    Roll owter diameter 3 Inch
    Max weight for roll materials 100kg
    Printer Power   AC220-240V(Adaptive).50/60Hz±1Hz
    Sublimation heater power AC380V.30A
    Printer Power consumtion  1500W
    Heater Power consumtion 8kw
    Environment Temperature:20-32℃
    Humidity:40-60℃(Non-condensing)
    Weight 2000kg
    Rip Software   Onyx Optional
    Compatible OS   Win XP & Win 7



    Rip Software:

    1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
    2.Colorful color replacement function can easily reproduce the required color.



    Machine details:

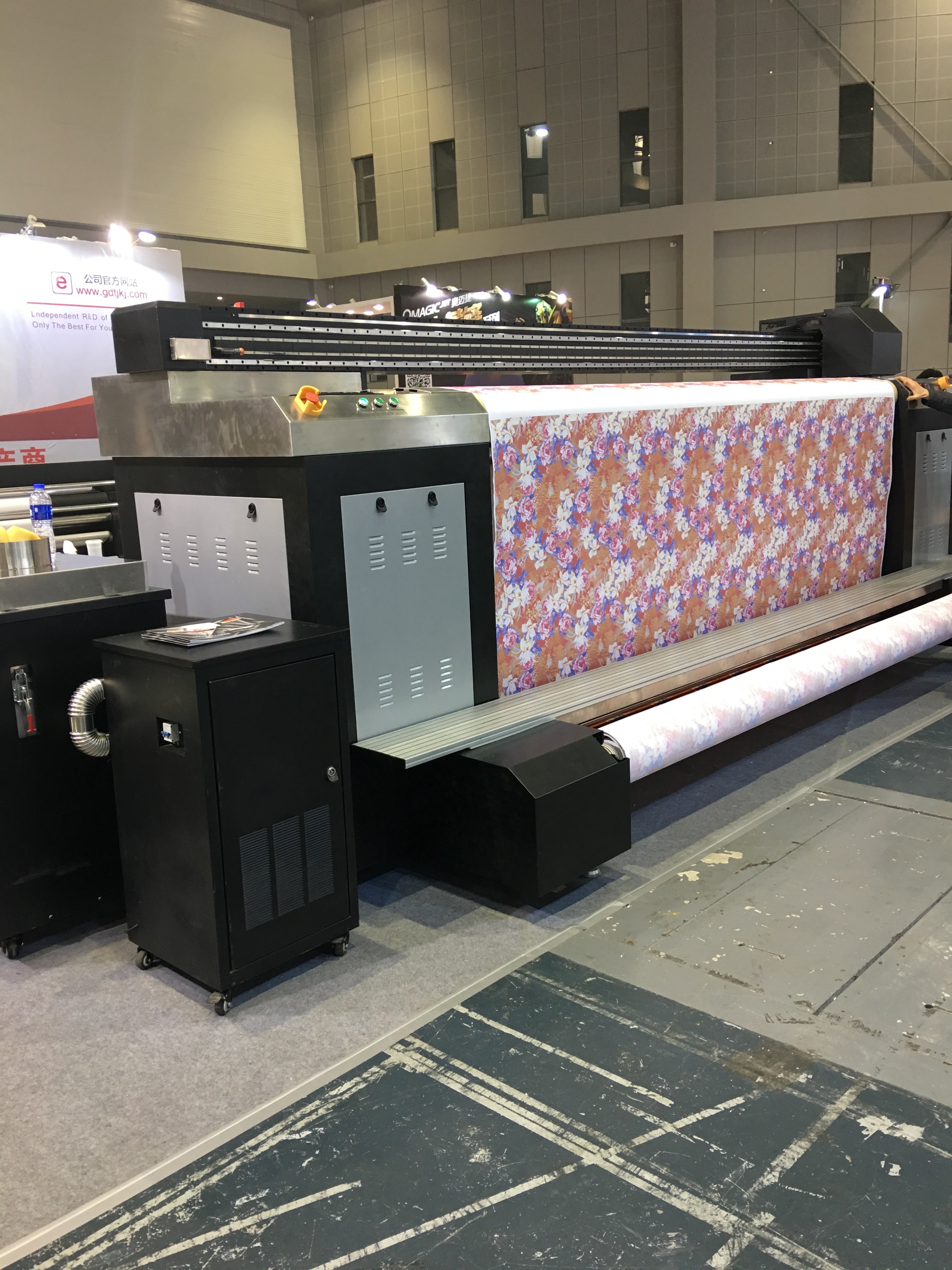

    High Accuracy Digital Textile Printing Machine With Dye Sublimation System 0High Accuracy Digital Textile Printing Machine With Dye Sublimation System 1



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.



    Specifications:



    1. Low cost

    2. High productivity

    3. Dye Sublimation system

    4. Directly print on textile material


    Description:


     Speed and precision perfectly reflected

    With 1800 DPI highest precision and 120 sqm/hour fastest speed

    Adopt high speed industrial KYOCERA printhead

    X-ais use liner motion motor and magnetic grating

    Y-axis use Fuji AC servo motor

    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.


    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



    How To Order:



    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery



    Printed Samples:

    High Accuracy Digital Textile Printing Machine With Dye Sublimation System 2
