High Resolution Inkjet Printer Fabric Plotter Continuous Ink Supply

High Resolution Inkjet Printer Fabric Plotter Continuous Ink Supply

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE certification
    Model Number: CSR 2000 (E)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Max Resolution: 1800DPI Type: Inkjet Printer
    Condition: New Print Head: Epson DX5*2
    Color Model: Dual CMYK Ink Supply Model: Continuous Ink Supply
    Max Materials Width: 2100mm Rip Software: Maintop 5.3 Rip Software
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    Print Speed: 45 Sqm / Hour
    High Light:

    large format printers


    fabric printer machine


    large format plotter

    Product name:  High resolution vivid fabric plotter / Directly cotton fabric printing machine



    Machine working speed :



    Printing resolution and speed

    360x1800dpi(3pass) 65m²/h
    720x1200dpi(4pass) 45m²/h
    720x1800dpi(6pass) 25 m²/h





    Product parameter


    CSR2000 (E)

    Print head

    Piezo technology, Epson DX5 printer head


    Sublimation ink,pigment ink and reactive ink

    Color model

    Dual  KCMY


    (180 nozzles x 8 lines ) x2 heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width


    Max printing width


    Roll diameter

    3 Inch

    Maximum weight for roll material



    USB 2.0



    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w




    40-60% Non-condensing


    Net Weight : 646kg                  Gross Weight : 886kg




    1· Electro Sublimation Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.




    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    •  Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
    •  Working process is simple, one person can operates with high efficency and short time.
    •  Low cost, liner breaking the highest costs performance



    Machine Details:

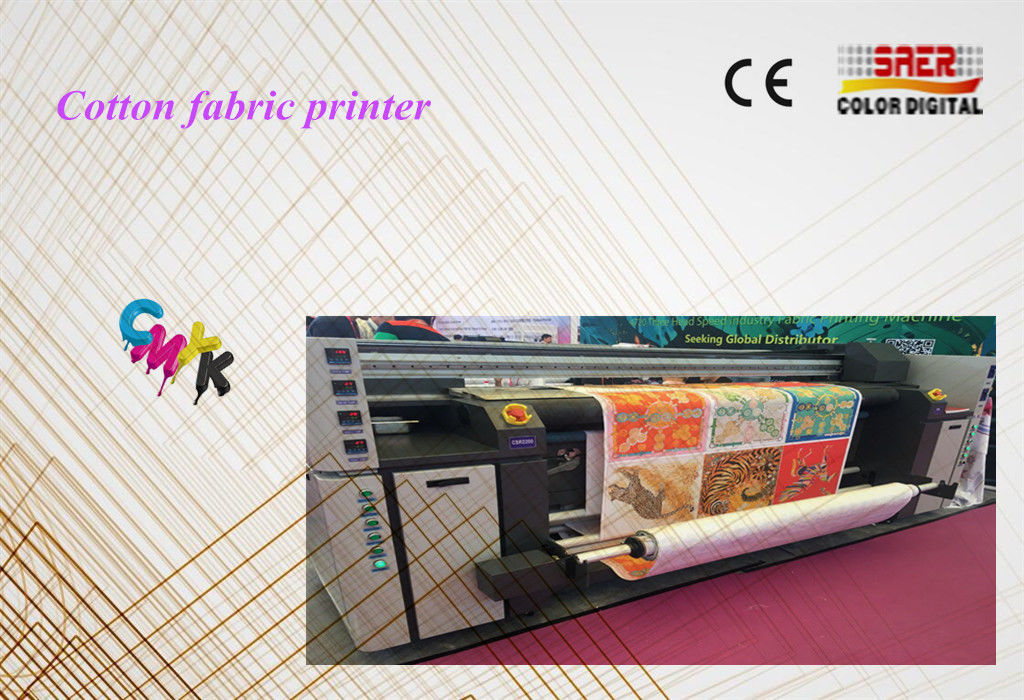

    High Resolution Inkjet Printer Fabric Plotter Continuous Ink Supply 0


    Printed Samples :


    High Resolution Inkjet Printer Fabric Plotter Continuous Ink Supply 1


    After Sales Service:


    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
