High Speed 1440 Dpi Digital Fabric Printing Machine With Epson DX5 Head

High Speed 1440 Dpi Digital Fabric Printing Machine With Epson DX5 Head

High Speed 1440 Dpi Digital Fabric Printing  Machine With Epson DX5 Head

Product Details:

Place of Origin: Japan
Brand Name: SAER
Certification: CE Certification
Model Number: CSR 1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Non fumigation wooden package(1010*2870*1850mm)
Delivery Time: 10 Working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Application: Indoor & Outdoor Size Of Panel: 1600mm
Type: Inkjet Printer Usage: Directly Fabric Printer
Automatic Grade: Automatic Color & Page: Multicolor
Print Head: Epson DX5 Rip Software: Maintop 5.3 Rip Software Or Neostampa 8 Optional
Compatible OS: Win XP&Win 7 Plate Type: Roll To Roll
Ink: Sublimation,Ractive And Pigment Ink Color Mode: Dual CMYK
Nozzles: (180 Nozzles*8 Lines)*1 Head Weight: 458kg
High Light:

mimaki digital printing machine

,

continuous inkjet printer

High Speed 1440 Dpi Digital Fabric Printing  Machine With Epson DX5 Head





Detailed Parameter

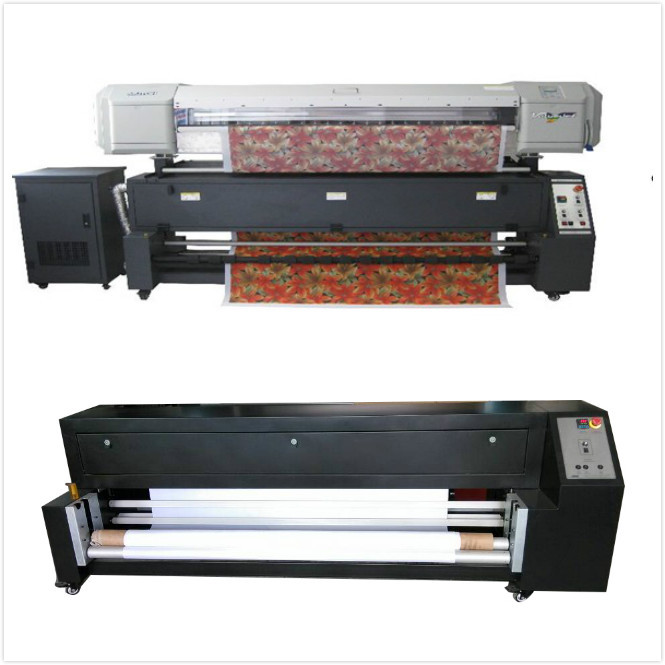

Introduce One MUTOH VJ1604 Printer,One SR1600 Sublimation Heater,One Filter Fan
Profile Completely Sublimation System , can produce Flags directly.
details
MODEL CSR 1600
Maximum media width 1,625mm
Printing Method PIEZO Inkjet
Print Color 4 color (Cyan, Magenta, Yellow, Black)
Printhead Height Controll 1.5mm 2.5mm low /High
Maximum Resolution 1440dpi
Printing Speed Resolution Speed
540×720/3Pass 21 m²/h
540×720/6Pass 10.5 m²/h
720×720/4Pass 15.5 m²/h
720×720/8Pass 7.7 m²/h
1440×720(8Pass) 5.9 m²/h
1440×1440(16Pass) 3.0 m²/h
Media Size Maximum Media Thickness: 1.0mm(0.039in.)

Media  diameter

2” or 3”

Maximum weight for roll media

 40kg

Ink Feeding System Cartridge (220ml per Color)
Printing Precision Level ±0.3% or 0.3mm
Head Cleaning Automatic and/or Manual
Interface Ethernet 10Base-T
Operational Power on - Temperature: 16~24°C / Humidity: 40~65%
Power off - Temperature: 10~30°C / Humidity: 20~60%
Power Resources Direct dye sublimation heater: AC 220 V, 1 phase + N+ PE, 16A, 50/60 Hz
Printer: AC 220V, 2A, 50/60Hz
Weight 458KG
External Shape 101*287*185 CM
62*56*110CM
Ink type

Disperse dye ink (Sublimation ink),reactive and Pigment ink

Media type

Polyester,cotton and silk etc



Specifications



1, Far Infrared Blackbody Tube Radiation Electro thermal Heating,can work at least 10000 hours.
2, Excellent heat insulation, can same more power for you.
3, Blackbody tuble have more thermal efficiency

4, Intelligent PID Temperature Control

5, Feeding and Taking up Are synchronous
6, Taking up can choose roll to roll .







Advantages

  • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
  • The printed image color is bright and vivid with nice color gamut
  • Rapid speed and various printer to choose
  • It  is simple and leave out heat transfer process, one person can operates with high efficency and short time.
  • Low cost and no need of any kind transfer paper, liner breaking the highest costs performance



Easy to load the media in and out oven during your machine working

Quick Tail Gas Treatment
Convenient to Maintain
Easy to Set up and Operate

Easy to open the caver to clean inside of oven
Easy to change the active carbon from the filter



Application



Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc



Printing Sample



High Speed 1440 Dpi Digital Fabric Printing  Machine With Epson DX5 Head 0





After Sales Service



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
