    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non Fumigation Wooden Package(4460*1160*1730mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 Sets / Month
    Contact Now
    Detailed Product Description
    Product Name: Wall Paper Printing Machine Application: Indoor Decoration
    Color & Page: Multicolor Color Mode: Dual 4 Color KCMY
    Voltage: 380V Gross Power: 5.5KW
    Print Head: Epson DX7 * 2 Pcs Rip Software: Onyx
    Compatible OS: Windows XP & Windows 7 Combine With: One 3.2m All-in-one Printing System And One Filter
    Ink: Sublimation,Reactive,Pigment Ink Material: Polyester,Cotton,Silk,linen And Wool Fabric

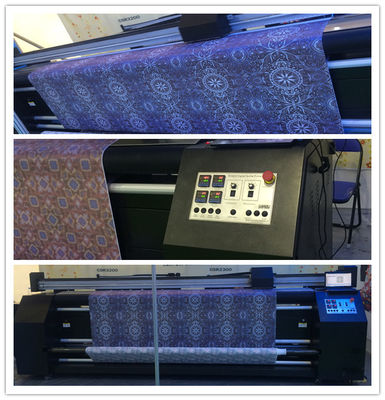

    High Speed / Resolution Digital Wall Paper Printing Machine Indoor Use





    Product Description:

    Combined with 3.2m all-in-one printing system and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade,also can be washed.



    Specifications



    Model

    CSR3200

    Print head

    Piezo technology, Epson DX7

    Ink

    Sublimation Ink,reactive ink and pigment ink

    Color Mode

    Dual CMYK

    Nozzles

    (180 nozzles*8 lines)*2 heads

    Print Head Height

    1.5mm / 6mm(adjustable)

    Ink Supply Mode

    Continuous Ink Supply

    Max Material Width

    3300mm



    Max Printing Width

    3200mm

    Printing Resolution And Speed

    Resolution(DPI)          Speed

    720*360dpi(2 pass)      40sqm/h

    360*1080dpi(3 pass)     32sqm/h

    720*720dpi(4 pass)      22sqm/h

    720*1080dpi(6 pass)     18sqm/h

    720*1440dpi(8 pass)     12sqm/h

    Roll Owter Diameter

    3 Inch

    Max Weight For Roll Material

    100KG

    Interface

    USB 2.0

    RAM

    128M

    Printer Power

    380V

    Power

    Direct Dye Sublimation Heater 3500W

    Printer                       2000W

    Environment

    temperature    20-32 degree

    Weight

    1120KG



    High Speed Digital Fabric Printing Machine Indoor Digital Wallpaper Printing Machine



    Description:



    1.Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.

    2.Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4.Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.

    5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission syst.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly

    10. Low cost and no need any transfer paper.



    Advantages:

    • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
    • The printed image color is bright and vivid with nice color gamut.
    • Rapid speed and various printer to choose
    • It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
    • Low cost and no need of any kind transfer paper, liner breaking the highest costs performance



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.
