Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai, China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | SRT600-1800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non fumucation wooden box |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
| Type: | Heat Press Calander | Color & Page: | Multicolor |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry | Voltage: | 110v / 220v / 380v |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty:: | One Year |
| Package: | Non Fumigation Wooden Box | Drum Diameter: | 600mm |
| High Light: | fabric calender machine,roll to roll heat transfer machine |
||

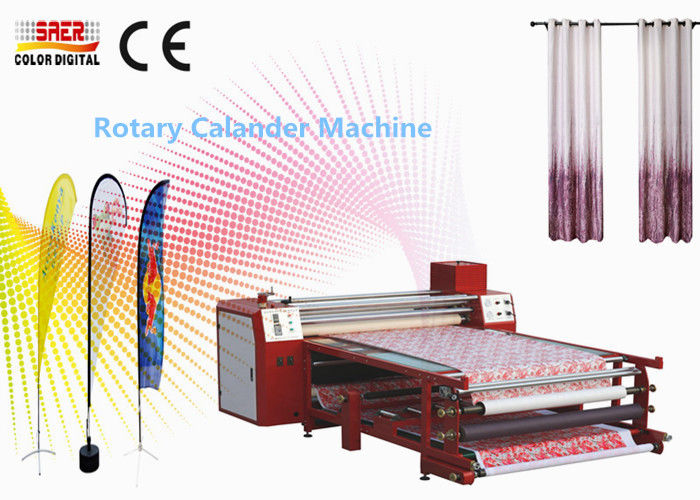

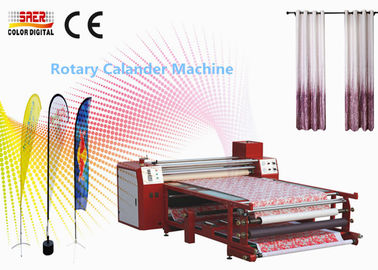

Product Name: Rotary Calander Machine/ Heat Press Calender Machine with high speed low price
Feature: It's a multi-functional machine which is designed especially for both roll to roll transfer machine.
Machine Specification:
| Model | SRT600-1800 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 60A |
| Power | 40kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1800mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2800mm*1300mm*1500mm |
| 2000kg |
Why use oil conduction heating technology?
Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
Main features of roller heat press transfer machine:
1) Auto blanket alignment
2) Auto blanket separation from drum completely
3) Auto pneumatic pressure
4) Explosion-proof system
5) Double-layer drum with full fill oil
Application:
