Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
|Place of Origin:||CHINA|
|Model Number:||CSR 2200|
|Minimum Order Quantity:||1 SET|
|Price:||FOB 18000 - 23000$ / SET|
|Packaging Details:||without fumigation wooden package|
|Delivery Time:||5-8 DAYS AFTER PAYMENT|
|Supply Ability:||1000 sets / month|
|Usage:||Cloths Printer||Automatic Grade:||Automatic|
|Warranty:||1 Year||Keywords:||Sublimation Machine|
|Product Name:||Sublimation Textile Heat Transfer Printer||Feature:||High Speed|
|Ink:||Pigment Ink Sublimation Ink||Print Head:||Epson 4720|
|Resolution:||1800DPI||Ink Supply Mode:||Continuous Ink Supply|
|Gross Weight:||1000kg||Color Code:||Dual CMYK|
|Printer Power:||AC210-230V 50-60HZ 16A||Print Head Higher:||1.5mm/6mm Adjustable|
1. Constant temperature heating box
rapidly heating, good leakproofness ensure the temperature constant
2. Green smoke extraction filtration system
filter and sublimation smoke efficiently, keep the environment clean
3. open ink-supply system
Compatible with many brands of sublimation ink, easily to control the printing cost.

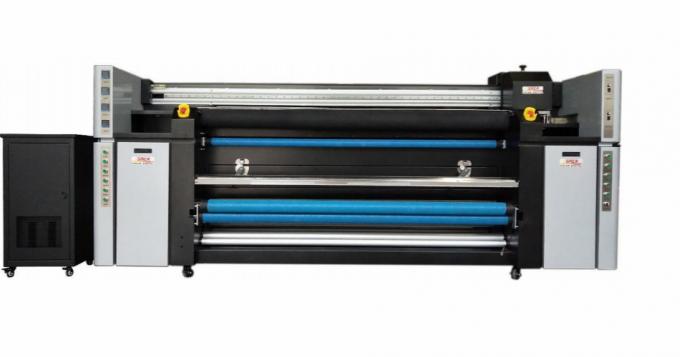

|Product Model||CSR 2200|
|Printhead||Piezo technology, Three Epson 4720 printer heads|
|Ink||Environmental Sublimation ink, Pigment Ink optional|
|Printing Media||Soft roll to roll|
|Fabric Type||Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc|
|Medium Transfer||Continous Transport Automatic Fabric Feeding & Taking-up|
|Nozzles||(180 nozzles x 8 lines ) x3 heads|
|Printer head higher||15mm / 6mm ( Adjustable )|
|Ink supply model||Continuous ink supply|
|Ink Volume||2000ML Volume ink,automatic ink detector|
|Max materials width||2200mm|
|Printing width||Maximum 210 cm|
|Printing Speed||Production Mode 45㎡/hour|
|Image Data Format||TIFF,JPEG|
|Roll diameter||3 Inch|
|Maximum weight for roll material||100kg|
|Printer power||AC210-230V / AC220-240 Adaptive 50/60Hz|
|Sublimation machine||AC220-240V. 16A. 50/60Hz|
|Power consumption||Direct dye sublimation heater 3500w|
|Temperature||20-32°C(68 – 89.6 ℉)|
Print on polyester fabric
make windows curtain and Table cloth
make Wall Stickers.
This machine prints directly on fabric without heating transfer process. It can work continuously for 24 hours without corrugated.
1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
5. Environmental smoke exhaust filter system to handle smoke efficiently and make clean work shop
6. Use open ink supply system which is compatible to more brand sublimation ink
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
Shanghai Color Digital Supplier has been established 2001, it's advanced professional digital printing equipment & relevant materials general supplier. From 2004 we paid most costs and energy to R &D Sublimation system and relevant equipment and consumables. Now we have been launched SR series product successfully. Sublimation system sometimes we like called heat transfer system, now our produces have been used most field such as advertisement printing textile digital printing , carpet digital printing, windows curtain digital printing and interior decoration printing and Flax printing widely. SR series products quality surpassed well beyond the limits of similar products quality from another factory of the world.
