| Place of Origin: | China |
| Brand Name: | SAER |
| Certification: | CE |
| Model Number: | CSR2200 |
| Minimum Order Quantity: | One set |
|---|---|
| Packaging Details: | Non fumigation wooden package |
| Delivery Time: | Within 5 Working days after the payment arrived |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / month |

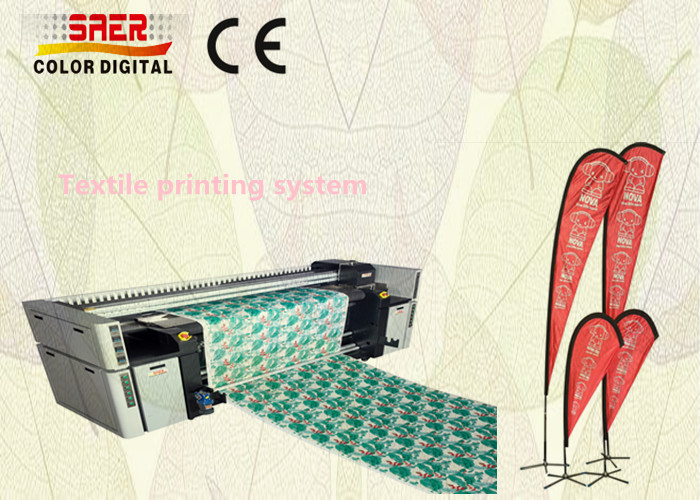

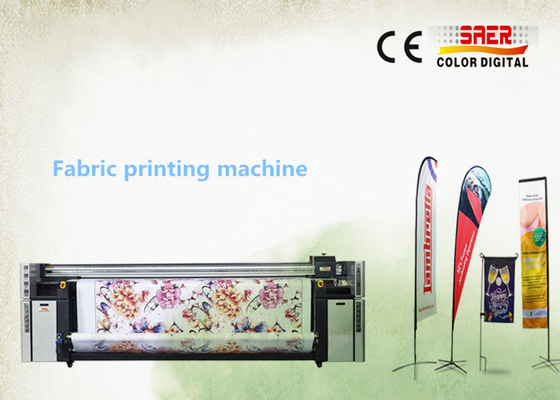

| Product Name: | Digital Textile Printing System | Suitable Fabric Type: | Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc |
|---|---|---|---|
| Media Processing: | Roll To Roll + Auto Feeding + Auto Roll Up | Print Head: | Epson High DIP Print Head |
| Ink Supply Mode: | Continuous Ink Supply | Application: | Indoor & Outdoor |
| Condition: | New | Max Resolution: | 1400dpi |
| Color Mode: | CMYK | Max Materials Width: | 2m |
| High Light: | Digital Inkjet Textile Printer,Outdoor Inkjet Textile Printer,Digital Inkjet Fabric Printer |
||
Quick Detail:
Combined with 2m printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.
Description:
Machine working speed :
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 80m2/h | |
| 720*1220dpi(4 pass) 65m2/h | |
| 720*1800dpi(6 pass) 45m2/h |
Applications:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.
Specifications:
1. Constant temperature heating box rapidly heating, good leakproofness ensure the temperature constant
2. Green smoke extraction filtration system filter and sublimation smoke efficiently, keep the environment clean
3. open ink-supply system Compatible with many brands of sublimation ink, easily to control the printing cost.
| Product Model | CSR 2200 |
| Printhead | Piezo technology, four Epson print heads |
| Ink | Environmental Sublimation ink, Pigment Ink optional |
| Color | Dual KCMY |
| Printing Media | Soft roll to roll |
| Fabric Type | Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford etc |
| Medium Transfer | Continous Transport Automatic Fabric Feeding & Taking-up |
| Nozzles | (400nozzles x 8 lines ) x4heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Ink Volume | 2000ML Volume ink,automatic ink detector |
| Max materials width | 2000mm (can custom) |
| Printing width | Maximum 2m (can custom) |
| Printing Speed | Production Mode 65㎡/hour |
| Image Data Format | TIFF,JPEG |
| Rip Software | ONYX |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer power | AC220-240V / AC220-240 Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500w |
| Printer 5500w | |
| Temperature | 20-32°C(68 – 89.6 ℉) |
| Humidity | 40-60% RH |
Competitive Advantage:
1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
Product Service :
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
 |
 |
