Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | China |
| Brand Name: | SAER |
| Certification: | CE |
| Model Number: | CSR 3200KJ |
| Minimum Order Quantity: | One set |
|---|---|
| Price: | FOB 75000-95000$ / SET |
| Packaging Details: | Non fumigation wooden package |
| Delivery Time: | Within 7 Working days after the payment arrived |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets / month |
| Product Name: | Direct Textile Printer | Print Media: | Natual Fiber Cloth |
|---|---|---|---|
| Guide Rail: | THK High Speed Mute Guide Rail,two Slide Blocks | Size Of Ink Droplet: | 5PL |
| Ink Supply Mode: | Bulk Ink Supply System | Application: | Indoor & Outdoor |
| Character: | No Pinch Roller | Material Transfer: | Automatic Feeding & Take-up System |
| Working Type: | Computer Directly Control Input And Output | Masupplyx Materials Width: | 3.2m |
| High Light: | textile printing equipment,inkjet fabric printing machine |
||
Quick Detail:

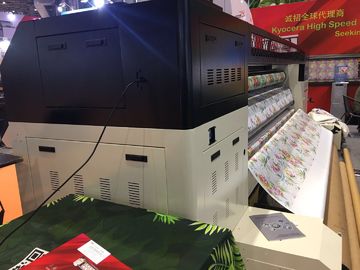

Combined with 3.2m printing system(Printer and heater all included) and filter fan,
sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.
Usage:
Serve solutions for small production, sample making ,designer ideas and training areas .
Description:
1. Guide Rail
Adopt HIWIN mute guide rail with two slide blocks, effenciently increase rigidity and torsion resistance, higher precision and mute silence on printing.
2. AC Servo motors
X axis and Y axis are using AC servo motors, for precision and stable motion control.
3. Integrated Anti-collision sensor
In each side of printhead carriage to prevent the printhead from unexpected damage,the sensors automatically detect the printing plate or any force on the way going.it prevents any possible strike to the print heads
4. Standard duel print heads
Maximize the performance of the productivity and high print quallity.
5. Bulk ink supply system
Just case your mind from worrying about filling ink again and again.
6. Print and heat together.
Equipped with air filter for direct print to fabric and color fixation, convenient and easy operating.
7. Compatible ink.
Compatible with reactive ink,sublimation ink and pigment ink,suitable for broad fabric printing.
8. Feeding & Take-up system
Specifically made tensioning media feeding & take-up system for broad fabrics and accurate feeding.
Applications:
Clothing
SportsWear, T-Shirts, Accessories
HomeTextiles
BedLinen, Upholstery, Table Cloths
Soft-Signage
Flags, Wall Decorations, Outdoor Advertising(tents)
Specifications:
| Product Name | Fabric Plotter |
| Model | CSR3200KJ |
| Construction | 3.2m All-in-one Printing system with one Filter Fan |
| Print head Quantity | Piezo technology Industrial KYOCERA print heads, Two / four Pieces optional |
| Ink | Sublimation ink,reactive ink and Pigment ink optional |
| Media Type | Different fabrics like Polyester,Cotton,Linen,Silk,Wool.polycotton etc |
| Color mode | Cyan,Magenta,Yellow,Black four colors |
| Nozzles | (180nozzles*8lines)*2 /4 heads |
| Print head higher | Adjustable |
| Ink supply mode |
4color mode:400cc cartridge*2/color 800cc/color Continuous Bulk Ink System |
| Max meterials width | 3300mm |
| Max printing width | 3200mm |
| Roll owter diameter | 3 Inch |
| Image Format | JPG Tiff and other common sizes |
| Real Time Tracking | None |
| Media Feeder | Yes |
| Media Take-up | Yes |
| Auto cleaning system | Yes |
| Picture Drying System | Fan drying system,Infrared heating |
| Max weight for roll materials | 100kg |
| Printer Power | AC220-240V(Adaptive).50/60Hz±1Hz |
| Sublimation heater power | AC380V.30A |
| Printer Power consumtion | 1500W |
| Heater Power consumtion | 8kw |
| Environment | Temperature:20-32℃ |
| Humidity:40-60℃(Non-condensing) | |
| Weight | 2000kg |
| Rip Software | Onyx 12 |
| Compatible OS | Win 7 & Win 8 & Win 10 & Win XP |
Competitive Advantage:
Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
After Sales Service: :
1. This machine have one year warranty .
2. We are support oversea service .
3. This machine has technical support in all of life.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
