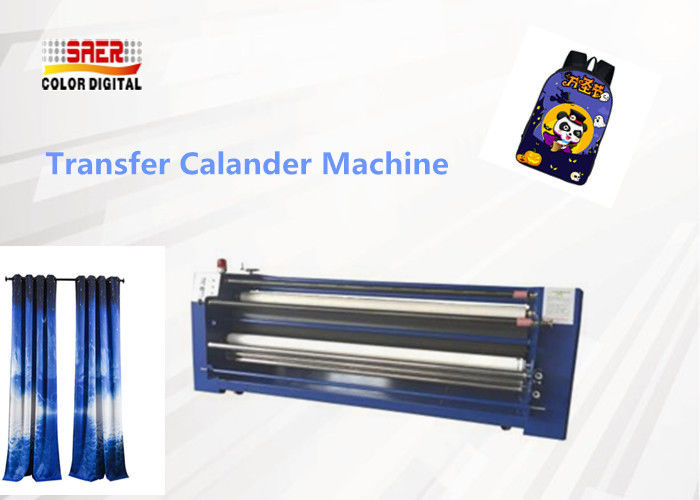

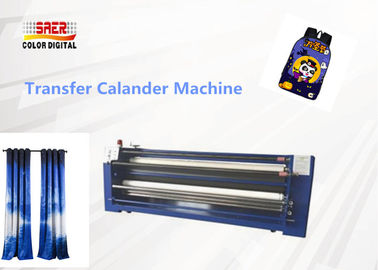

Industrial Roll To Roll Heat Press Machine With High Speed For Textiles 180cm

Industrial Roll To Roll Heat Press Machine With High Speed For Textiles 180cm

    • Industrial Roll To Roll Heat Press Machine With High Speed For Textiles 180cm
    • Industrial Roll To Roll Heat Press Machine With High Speed For Textiles 180cm
  • Industrial Roll To Roll Heat Press Machine With High Speed For Textiles 180cm

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SRT600-1800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Non fumigation wooden box
    Delivery Time: 15 days
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Heating Type: Oil Heating Feature: Adjustable Thermostat
    Applicable Industries: Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry Voltage: 110v / 220v / 380v
    After-sales Service Provided: Online Support, Video Technical Support Warranty:: One Year
    Package: Non Fumigation Wooden Box Drum Diameter: 600mm

    Product Name:   Industrial roll to roll rotary heat press sublimation calander with high speed for textiles 180cm



    Machine Details :

    1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
    2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
    3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
    4  Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
    5. Roller heat transfer Digital t shirt printing machine, one year warranty


    Machine Specification:


    Model SRT600-1800
    Working Vatage(V) Ac 50~60Hz, three-phase four-wire, 380V
    Current 60A
    Power  40kw
    Temperature Range(℃) 0—399
    Speed range  150meters per hour
    Heating Time  around one hour
    Transfer width 1800mm
    Number of heating tubes  24 pieces
    Package Size 2800mm*1300mm*1500mm
    Weight 2000kg




    Main features of roller heat press transfer machine:


    1) Auto blanket alignment
    2) Auto blanket separation from drum completely
    3) Auto pneumatic pressure
    4) Explosion-proof system
    5) Double-layer drum with full fill oil


    Our Service :
    1. OEM/ODM service
    We have made OEM/ODM machines for many customers from the world.
    2. One-stop service
    One-stop services for sublimation printer, heat transfer machine, sublimation paper and sublimation ink, sublimation blanks, etc.
    3. High quality & moderate price
    Each machine will be tested before delivery to keep the stable quality.
    4. Small MOQ support
    Most of our products are without MOQ request to support.
    5. Timely delivery
    6. Free sample
    Free samples and free sample printing service are available.
    7. Trainning Service
    We offer 3-5 days free training in our factory, including how to use the software, how to operate the machine, how to keep daily maintenance, and useful printing technologies, etc.
    8. Installation service
    On-line support for installation and operation.
    You can discuss operation and maintenance with our technician online support service by Whatsapp, Skype, Wechat etc. Remote control and on-site support will be provided upon request.
    9. After-Sales Service Guarantee
    After-Sales Service Guarantee, SAER takes responsible for Each Products for you.

    1. One Year Warranty
    The problems, caused by machine itself, and there is no damage from a third party, must be guaranteed; Free spare parts will be provided, technical support, guidance video, instruction, etc all available.
    2. Free online consultation
    The technicians or sales will keep online. No matter what kind of technical questions that you may have, you would get a clear answer from our professional teams.
    3. Free guidance
    If you are able to help us get the visa and also would like to bear the costs involved like flight tickets, food, accommodation, etc, we can send our most excellent technicians to your office, and they will give you a full guidance.
    4.Our engineer can service oversea.
    Why use oil conduction heating technology?
        Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
       The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
